DIN 933 hex head cap screw 8.8

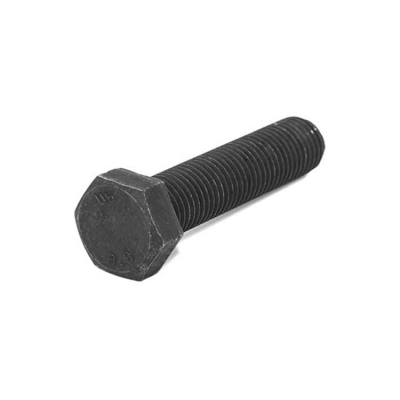

Anti-rust oil-dipped
Hex-head screw with full thread. This is a high-quality screw made of 8.8 grade steel to be applied with a hexagon socket key or any other key for hex head screws.
Silver-white Cr3 Zinc-Plated
White zinc-plated Hex-head screw with full thread. This is a high-quality screw made of 8.8 grade steel to be applied with a hexagon socket key or any other key for hex-head screws.
What finish do you need?
Technical info for combination: Anti-rust oil-dipped
Brochure-D9338.pdf
Download
|
Material:
High strength carbon steel
Finish:
Anti-rust oil-dipped
Hardness:
250-320 HV
Technical info for combination: Silver-white Cr3 Zinc-Plated
Brochure-D9338ZB.pdf
Download
|
Material:
High strength carbon steel
Finish:
Silver-white Cr3 zinc-plated
Hardness:
250-320 HV
All References for combination: Anti-rust oil-dipped
All references

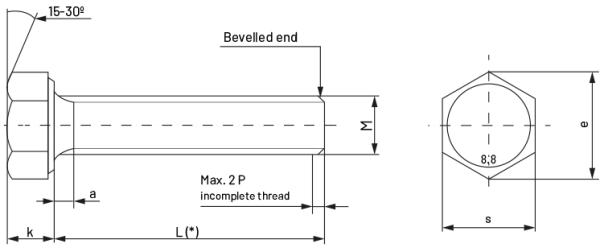

| Part number | Medida M x L | a Max. | e Min. | k Max. | s Max. | P Threaded hole | Par apriete N/m | Box Quantity |
|---|---|---|---|---|---|---|---|---|
| 04250371 | 6,0 x 16 | 3,00 | 11,05 | 4,15 | 10 | 1,00 | 9,3 | 200 |
| 04250391 | 6,0 x 20 | 3,00 | 11,05 | 4,15 | 10 | 1,00 | 9,3 | 200 |
| 04250411 | 6,0 x 25 | 3,00 | 11,05 | 4,15 | 10 | 1,00 | 9,3 | 200 |
| 04250421 | 6,0 x 30 | 3,00 | 11,05 | 4,15 | 10 | 1,00 | 9,3 | 200 |
| 04250431 | 6,0 x 35 | 3,00 | 11,05 | 4,15 | 10 | 1,00 | 9,3 | 200 |
| 04250441 | 6,0 x 40 | 3,00 | 11,05 | 4,15 | 10 | 1,00 | 9,3 | 200 |
| 04250451 | 6,0 x 45 | 3,00 | 11,05 | 4,15 | 10 | 1,00 | 9,3 | 200 |
| 04250461 | 6,0 x 50 | 3,00 | 11,05 | 4,15 | 10 | 1,00 | 9,3 | 200 |
| 04250481 | 6,0 x 60 | 3,00 | 11,05 | 4,15 | 10 | 1,00 | 9,3 | 200 |
| 04250771 | 8,0 x 16 | 3,75 | 14,38 | 5,45 | 13 | 1,25 | 22,0 | 200 |
| 04250781 | 8,0 x 18 | 3,75 | 14,38 | 5,45 | 13 | 1,25 | 22,0 | 200 |
| 04250791 | 8,0 x 20 | 3,75 | 14,38 | 5,45 | 13 | 1,25 | 22,0 | 200 |
| 04250811 | 8,0 x 25 | 3,75 | 14,38 | 5,45 | 13 | 1,25 | 22,0 | 200 |
| 04250821 | 8,0 x 30 | 3,75 | 14,38 | 5,45 | 13 | 1,25 | 22,0 | 200 |
| 04250841 | 8,0 x 40 | 3,75 | 14,38 | 5,45 | 13 | 1,25 | 22,0 | 200 |
| 04250861 | 8,0 x 50 | 3,75 | 14,38 | 5,45 | 13 | 1,25 | 22,0 | 200 |
| 04250871 | 8,0 x 55 | 3,75 | 14,38 | 5,45 | 13 | 1,25 | 22,0 | 200 |
| 04250881 | 8,0 x 60 | 3,75 | 14,38 | 5,45 | 13 | 1,25 | 22,0 | 200 |
| 04250901 | 8,0 x 70 | 3,75 | 14,38 | 5,45 | 13 | 1,25 | 22,0 | 200 |
| 04250921 | 8,0 x 80 | 3,75 | 14,38 | 5,45 | 13 | 1,25 | 22,0 | 200 |
| 04250971 | 10,0 x 16 | 4,50 | 18,90 | 6,58 | 17 | 1,50 | 45,0 | 200 |
| 04250991 | 10,0 x 20 | 4,50 | 18,90 | 6,58 | 17 | 1,50 | 45,0 | 200 |
| 04251011 | 10,0 x 25 | 4,50 | 18,90 | 6,58 | 17 | 1,50 | 45,0 | 200 |
| 04251021 | 10,0 x 30 | 4,50 | 18,90 | 6,58 | 17 | 1,50 | 45,0 | 200 |
| 04251031 | 10,0 x 35 | 4,50 | 18,90 | 6,58 | 17 | 1,50 | 45,0 | 200 |
| 04251041 | 10,0 x 40 | 4,50 | 18,90 | 6,58 | 17 | 1,50 | 45,0 | 200 |
| 04251061 | 10,0 x 50 | 4,50 | 18,90 | 6,58 | 17 | 1,50 | 45,0 | 200 |
| 04251071 | 10,0 x 55 | 4,50 | 18,90 | 6,58 | 17 | 1,50 | 45,0 | 100 |
| 04251081 | 10,0 x 60 | 4,50 | 18,90 | 6,58 | 17 | 1,50 | 45,0 | 200 |
| 04251101 | 10,0 x 70 | 4,50 | 18,90 | 6,58 | 17 | 1,50 | 45,0 | 200 |
| 04251121 | 10,0 x 80 | 4,50 | 18,90 | 6,58 | 17 | 1,50 | 45,0 | 100 |
| 04251181 | 12,0 x 20 | 5,25 | 21,10 | 7,68 | 19 | 1,75 | 77,0 | 200 |
| 04251201 | 12,0 x 25 | 5,25 | 21,10 | 7,68 | 19 | 1,75 | 77,0 | 200 |
| 04251211 | 12,0 x 30 | 5,25 | 21,10 | 7,68 | 19 | 1,75 | 77,0 | 200 |
| 04251221 | 12,0 x 35 | 5,25 | 21,10 | 7,68 | 19 | 1,75 | 77,0 | 200 |
| 04251231 | 12,0 x 40 | 5,25 | 21,10 | 7,68 | 19 | 1,75 | 77,0 | 200 |
| 04251241 | 12,0 x 45 | 5,25 | 21,10 | 7,68 | 19 | 1,75 | 77,0 | 200 |
| 04251251 | 12,0 x 50 | 5,25 | 21,10 | 7,68 | 19 | 1,75 | 77,0 | 100 |
| 04251271 | 12,0 x 60 | 5,25 | 21,10 | 7,68 | 19 | 1,75 | 77,0 | 100 |
| 04251291 | 12,0 x 70 | 5,25 | 21,10 | 7,68 | 19 | 1,75 | 77,0 | 100 |
| 04251311 | 12,0 x 80 | 5,25 | 21,10 | 7,68 | 19 | 1,75 | 77,0 | 100 |
| 04251401 | 14,0 x 30 | 6,00 | 24,49 | 8,98 | 22 | 2,00 | 125,0 | 200 |
| 04251411 | 14,0 x 35 | 6,00 | 24,49 | 8,98 | 22 | 2,00 | 125,0 | 200 |
| 04251421 | 14,0 x 40 | 6,00 | 24,49 | 8,98 | 22 | 2,00 | 125,0 | 100 |
| 04251431 | 14,0 x 45 | 6,00 | 24,49 | 8,98 | 22 | 2,00 | 125,0 | 100 |
| 04251441 | 14,0 x 50 | 6,00 | 24,49 | 8,98 | 22 | 2,00 | 125,0 | 100 |
| 04251461 | 14,0 x 60 | 6,00 | 24,49 | 8,98 | 22 | 2,00 | 125,0 | 100 |
| 04251471 | 14,0 x 65 | 6,00 | 24,49 | 8,98 | 22 | 2,00 | 125,0 | 50 |
| 04251481 | 14,0 x 70 | 6,00 | 24,49 | 8,98 | 22 | 2,00 | 125,0 | 50 |
| 04251501 | 14,0 x 80 | 6,00 | 24,49 | 8,98 | 22 | 2,00 | 125,0 | 50 |
| 04251561 | 16,0 x 30 | 6,00 | 26,75 | 10,18 | 24 | 2,00 | 190,0 | 100 |
| 04251571 | 16,0 x 35 | 6,00 | 26,75 | 10,18 | 24 | 2,00 | 190,0 | 100 |
| 04251581 | 16,0 x 40 | 6,00 | 26,75 | 10,18 | 24 | 2,00 | 190,0 | 100 |
| 04251591 | 16,0 x 45 | 6,00 | 26,75 | 10,18 | 24 | 2,00 | 190,0 | 100 |
| 04251601 | 16,0 x 50 | 6,00 | 26,75 | 10,18 | 24 | 2,00 | 190,0 | 100 |
| 04251621 | 16,0 x 60 | 6,00 | 26,75 | 10,18 | 24 | 2,00 | 190,0 | 50 |
| 04251631 | 16,0 x 65 | 6,00 | 26,75 | 10,18 | 24 | 2,00 | 190,0 | 50 |
| 04251641 | 16,0 x 70 | 6,00 | 26,75 | 10,18 | 24 | 2,00 | 190,0 | 50 |
| 04251661 | 16,0 x 80 | 6,00 | 26,75 | 10,18 | 24 | 2,00 | 190,0 | 50 |
| 04251711 | 18,0 x 40 | 7,50 | 30,14 | 11,72 | 27 | 2,50 | 270,0 | 50 |
| 04251731 | 18,0 x 50 | 7,50 | 30,14 | 11,72 | 27 | 2,50 | 270,0 | 50 |
| 04251751 | 18,0 x 60 | 7,50 | 30,14 | 11,72 | 27 | 2,50 | 270,0 | 50 |
| 04251771 | 18,0 x 70 | 7,50 | 30,14 | 11,72 | 27 | 2,50 | 270,0 | 50 |
| 04251791 | 18,0 x 80 | 7,50 | 30,14 | 11,72 | 27 | 2,50 | 270,0 | 50 |
| 04251841 | 20,0 x 40 | 7,50 | 35,53 | 12,72 | 30 | 2,50 | 380,0 | 50 |
| 04251861 | 20,0 x 50 | 7,50 | 35,53 | 12,72 | 30 | 2,50 | 380,0 | 50 |
| 04251881 | 20,0 x 60 | 7,50 | 35,53 | 12,72 | 30 | 2,50 | 380,0 | 50 |
| 04251891 | 20,0 x 65 | 7,50 | 35,53 | 12,72 | 30 | 2,50 | 380,0 | 25 |
| 04251901 | 20,0 x 70 | 7,50 | 35,53 | 12,72 | 30 | 2,50 | 380,0 | 25 |
| 04251921 | 20,0 x 80 | 7,50 | 35,53 | 12,72 | 30 | 2,50 | 380,0 | 25 |
| 04251971 | 22,0 x 50 | 7,50 | 35,72 | 14,22 | 32 | 2,50 | 515,0 | 25 |
| 04251991 | 22,0 x 60 | 7,50 | 35,72 | 14,22 | 32 | 2,50 | 515,0 | 25 |
| 04252011 | 22,0 x 70 | 7,50 | 35,72 | 14,22 | 32 | 2,50 | 515,0 | 25 |
| 04252031 | 22,0 x 80 | 7,50 | 35,72 | 14,22 | 32 | 2,50 | 515,0 | 25 |
| 04252081 | 24,0 x 50 | 9,00 | 39,98 | 15,22 | 36 | 3,00 | 655,0 | 25 |
| 04252101 | 24,0 x 60 | 9,00 | 39,98 | 15,22 | 36 | 3,00 | 655,0 | 25 |
| 04252121 | 24,0 x 70 | 9,00 | 39,98 | 15,22 | 36 | 3,00 | 655,0 | 25 |
| 04252141 | 24,0 x 80 | 9,00 | 39,98 | 15,22 | 36 | 3,00 | 655,0 | 25 |
All References for combination: Silver-white Cr3 Zinc-Plated
All references
| Part number | Medida M x L | a Max. | e Min. | k Max. | s Max. | P Threaded hole | Par apriete N/m | Box Quantity |
|---|---|---|---|---|---|---|---|---|
| 04250183 | 5,0 x 10 | 2,40 | 8,79 | 3,65 | 8 | 0,80 | 5,4 | 500 |
| 04250193 | 5,0 x 12 | 2,40 | 8,79 | 3,65 | 8 | 0,80 | 5,4 | 500 |
| 04250223 | 5,0 x 16 | 2,40 | 8,79 | 3,65 | 8 | 0,80 | 5,4 | 500 |
| 04250243 | 5,0 x 20 | 2,40 | 8,79 | 3,65 | 8 | 0,80 | 5,4 | 500 |
| 04250263 | 5,0 x 25 | 2,40 | 8,79 | 3,65 | 8 | 0,80 | 5,4 | 500 |
| 04250273 | 5,0 x 30 | 2,40 | 8,79 | 3,65 | 8 | 0,80 | 5,4 | 500 |
| 04250283 | 5,0 x 35 | 2,40 | 8,79 | 3,65 | 8 | 0,80 | 5,4 | 500 |
| 04250293 | 5,0 x 40 | 2,40 | 8,79 | 3,65 | 8 | 0,80 | 5,4 | 500 |
| 04250333 | 6,0 x 10 | 3,00 | 11,05 | 4,15 | 10 | 1,00 | 9,3 | 200 |
| 04250343 | 6,0 x 12 | 3,00 | 11,05 | 4,15 | 10 | 1,00 | 9,3 | 200 |
| 04250373 | 6,0 x 16 | 3,00 | 11,05 | 4,15 | 10 | 1,00 | 9,3 | 200 |
| 04250393 | 6,0 x 20 | 3,00 | 11,05 | 4,15 | 10 | 1,00 | 9,3 | 200 |
| 04250413 | 6,0 x 25 | 3,00 | 11,05 | 4,15 | 10 | 1,00 | 9,3 | 200 |
| 04250423 | 6,0 x 30 | 3,00 | 11,05 | 4,15 | 10 | 1,00 | 9,3 | 200 |
| 04250433 | 6,0 x 35 | 3,00 | 11,05 | 4,15 | 10 | 1,00 | 9,3 | 200 |
| 04250443 | 6,0 x 40 | 3,00 | 11,05 | 4,15 | 10 | 1,00 | 9,3 | 200 |
| 04250453 | 6,0 x 45 | 3,00 | 11,05 | 4,15 | 10 | 1,00 | 9,3 | 200 |
| 04250463 | 6,0 x 50 | 3,00 | 11,05 | 4,15 | 10 | 1,00 | 9,3 | 200 |
| 04250483 | 6,0 x 60 | 3,00 | 11,05 | 4,15 | 10 | 1,00 | 9,3 | 200 |
| 04250503 | 6,0 x 70 | 3,00 | 11,05 | 4,15 | 10 | 1,00 | 9,3 | 200 |
| 04250773 | 8,0 x 16 | 3,75 | 14,38 | 5,45 | 13 | 1,25 | 22,0 | 200 |
| 04250793 | 8,0 x 20 | 3,75 | 14,38 | 5,45 | 13 | 1,25 | 22,0 | 200 |
| 04250813 | 8,0 x 25 | 3,75 | 14,38 | 5,45 | 13 | 1,25 | 22,0 | 200 |
| 04250823 | 8,0 x 30 | 3,75 | 14,38 | 5,45 | 13 | 1,25 | 22,0 | 200 |
| 04250833 | 8,0 x 35 | 3,75 | 14,38 | 5,45 | 13 | 1,25 | 22,0 | 200 |
| 04250843 | 8,0 x 40 | 3,75 | 14,38 | 5,45 | 13 | 1,25 | 22,0 | 200 |
| 04250863 | 8,0 x 50 | 3,75 | 14,38 | 5,45 | 13 | 1,25 | 22,0 | 200 |
| 04250883 | 8,0 x 60 | 3,75 | 14,38 | 5,45 | 13 | 1,25 | 22,0 | 200 |
| 04250903 | 8,0 x 70 | 3,75 | 14,38 | 5,45 | 13 | 1,25 | 22,0 | 200 |
| 04250923 | 8,0 x 80 | 3,75 | 14,38 | 5,45 | 13 | 1,25 | 22,0 | 200 |
| 04250973 | 10,0 x 16 | 4,50 | 18,90 | 6,58 | 17 | 1,50 | 45,0 | 200 |
| 04250993 | 10,0 x 20 | 4,50 | 18,90 | 6,58 | 17 | 1,50 | 45,0 | 200 |
| 04251013 | 10,0 x 25 | 4,50 | 18,90 | 6,58 | 17 | 1,50 | 45,0 | 200 |
| 04251023 | 10,0 x 30 | 4,50 | 18,90 | 6,58 | 17 | 1,50 | 45,0 | 200 |
| 04251033 | 10,0 x 35 | 4,50 | 18,90 | 6,58 | 17 | 1,50 | 45,0 | 200 |
| 04251043 | 10,0 x 40 | 4,50 | 18,90 | 6,58 | 17 | 1,50 | 45,0 | 200 |
| 04251063 | 10,0 x 50 | 4,50 | 18,90 | 6,58 | 17 | 1,50 | 45,0 | 200 |
| 04251083 | 10,0 x 60 | 4,50 | 18,90 | 6,58 | 17 | 1,50 | 45,0 | 200 |
| 04251103 | 10,0 x 70 | 4,50 | 18,90 | 6,58 | 17 | 1,50 | 45,0 | 100 |
| 04251123 | 10,0 x 80 | 4,50 | 18,90 | 6,58 | 17 | 1,50 | 45,0 | 100 |
| 04251183 | 12,0 x 20 | 5,25 | 21,10 | 7,68 | 19 | 1,75 | 77,0 | 200 |
| 04251203 | 12,0 x 25 | 5,25 | 21,10 | 7,68 | 19 | 1,75 | 77,0 | 200 |
| 04251213 | 12,0 x 30 | 5,25 | 21,10 | 7,68 | 19 | 1,75 | 77,0 | 200 |
| 04251223 | 12,0 x 35 | 5,25 | 21,10 | 7,68 | 19 | 1,75 | 77,0 | 200 |
| 04251233 | 12,0 x 40 | 5,25 | 21,10 | 7,68 | 19 | 1,75 | 77,0 | 200 |
| 04251253 | 12,0 x 50 | 5,25 | 21,10 | 7,68 | 19 | 1,75 | 77,0 | 100 |
| 04251273 | 12,0 x 60 | 5,25 | 21,10 | 7,68 | 19 | 1,75 | 77,0 | 100 |
| 04251293 | 12,0 x 70 | 5,25 | 21,10 | 7,68 | 19 | 1,75 | 77,0 | 100 |
| 04251313 | 12,0 x 80 | 5,25 | 21,10 | 7,68 | 19 | 1,75 | 77,0 | 100 |
| 04251403 | 14,0 x 30 | 6,00 | 24,49 | 8,98 | 22 | 2,00 | 125,0 | 200 |
| 04251413 | 14,0 x 35 | 6,00 | 24,49 | 8,98 | 22 | 2,00 | 125,0 | 200 |
| 04251423 | 14,0 x 40 | 6,00 | 24,49 | 8,98 | 22 | 2,00 | 125,0 | 100 |
| 04251443 | 14,0 x 50 | 6,00 | 24,49 | 8,98 | 22 | 2,00 | 125,0 | 100 |
| 04251463 | 14,0 x 60 | 6,00 | 24,49 | 8,98 | 22 | 2,00 | 125,0 | 50 |
| 04251483 | 14,0 x 70 | 6,00 | 24,49 | 8,98 | 22 | 2,00 | 125,0 | 50 |
| 04251503 | 14,0 x 80 | 6,00 | 24,49 | 8,98 | 22 | 2,00 | 125,0 | 50 |
| 04251563 | 16,0 x 30 | 6,00 | 26,75 | 10,18 | 24 | 2,00 | 190,0 | 100 |
| 04251573 | 16,0 x 35 | 6,00 | 26,75 | 10,18 | 24 | 2,00 | 190,0 | 100 |
| 04251583 | 16,0 x 40 | 6,00 | 26,75 | 10,18 | 24 | 2,00 | 190,0 | 100 |
| 04251603 | 16,0 x 50 | 6,00 | 26,75 | 10,18 | 24 | 2,00 | 190,0 | 100 |
| 04251623 | 16,0 x 60 | 6,00 | 26,75 | 10,18 | 24 | 2,00 | 190,0 | 50 |
| 04251643 | 16,0 x 70 | 6,00 | 26,75 | 10,18 | 24 | 2,00 | 190,0 | 50 |
| 04251663 | 16,0 x 80 | 6,00 | 26,75 | 10,18 | 24 | 2,00 | 190,0 | 50 |
| 04251713 | 18,0 x 40 | 7,50 | 30,14 | 11,72 | 27 | 2,50 | 270,0 | 50 |
| 04251733 | 18,0 x 50 | 7,50 | 30,14 | 11,72 | 27 | 2,50 | 270,0 | 50 |
| 04251753 | 18,0 x 60 | 7,50 | 30,14 | 11,72 | 27 | 2,50 | 270,0 | 50 |
| 04251773 | 18,0 x 70 | 7,50 | 30,14 | 11,72 | 27 | 2,50 | 270,0 | 50 |
| 04251793 | 18,0 x 80 | 7,50 | 30,14 | 11,72 | 27 | 2,50 | 270,0 | 50 |
| 04251843 | 20,0 x 40 | 7,50 | 35,53 | 12,72 | 30 | 2,50 | 380,0 | 50 |
| 04251863 | 20,0 x 50 | 7,50 | 35,53 | 12,72 | 30 | 2,50 | 380,0 | 50 |
| 04251883 | 20,0 x 60 | 7,50 | 35,53 | 12,72 | 30 | 2,50 | 380,0 | 50 |
| 04251903 | 20,0 x 70 | 7,50 | 35,53 | 12,72 | 30 | 2,50 | 380,0 | 50 |
| 04251923 | 20,0 x 80 | 7,50 | 35,53 | 12,72 | 30 | 2,50 | 380,0 | 25 |
| 04251953 | 22,0 x 40 | 7,50 | 35,72 | 14,22 | 32 | 2,50 | 515,0 | 25 |
| 04251973 | 22,0 x 50 | 7,50 | 35,72 | 14,22 | 32 | 2,50 | 515,0 | 25 |
| 04251993 | 22,0 x 60 | 7,50 | 35,72 | 14,22 | 32 | 2,50 | 515,0 | 25 |
| 04252013 | 22,0 x 70 | 7,50 | 35,72 | 14,22 | 32 | 2,50 | 515,0 | 25 |
| 04252033 | 22,0 x 80 | 7,50 | 35,72 | 14,22 | 32 | 2,50 | 515,0 | 25 |
Other products that may interest you
