How to install cable turnbuckles by UNIQ

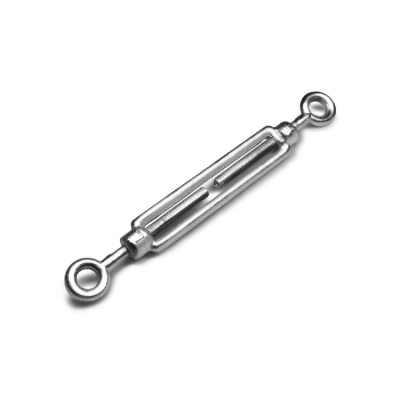

DIN 1480 turnbuckles, eye/eye

Steel

Especially suitable for applications requiring a high level of safety and greater traction resistance, thanks to the two rings on both sides of the turnbuckle.

TIPS: The quality of the finish guarantees a very good corrosion resistance. In order not to compromise safety, the SWL established for each size must never be exceeded.

What material do you need?

Stainless steel AISI 316

Steel

Brochure-TAA.pdf

Download |

Material:
Steel C15

Finish:
Zinc plated

All references

Part number	Thread Dimension (Metric)	Denom.	L	D	d	L2	N	Working Load S.W.L (kg)	Box Quantity	Outer Box Quantity
09520853	M5	TAA105	70	16	8	57	35	60	50	400
09520861	M6	TAA106	110	20	9	80	55	70	50	300
09520870	M8	TAA108	110	22	10	85	57	140	25	150
09520888	M10	TAA110	125	31	14	105	68	220	25	75
09520896	M11	TAA111	125	33	15	108	68	260	25	25
09520909	M12	TAA112	125	35	16	111	70	310	10	50
09520917	M14	TAA114	140	40	18	124	75	450	10	40
09520925	M16	TAA116	170	47	22	150	88	600	10	10
09520933	M20	TAA120	200	52	24	168	105	910	5	5
09520941	M22	TAA122	220	60	28	190	118	1100	1	7
09520950	M24	TAA124	255	65	28	212	135	1300	1	25
09520968	M27	TAA127	255	71	31	224	135	1700	1	25
09520976	M30	TAA130	255	71	31	224	135	2100	1	10
09520984	M32	TAA132	295	88	36	245	148	2150	1	15
09520992	M36	TAA136	295	94	38	277	160	2900	1	10

Part number	Thread Dimension (Metric)	Denom.	L	L2	N	D	d	Working Load W.L.L (kg)	Box Quantity	Outer Box Quantity
09529284	M5	TAAI 105	70	60	35	20	10	60	10	80
09529292	M6	TAAI 106	110	80	55	21	10	70	10	80
09529305	M8	TAAI 108	110	90	57	27	14	140	10	10
09529313	M10	TAAI 110	125	102	60	32	14	220	5	5
09529321	M12	TAAI 112	125	111	62	39	18	310	5	5
