How to install cable turnbuckles by UNIQ

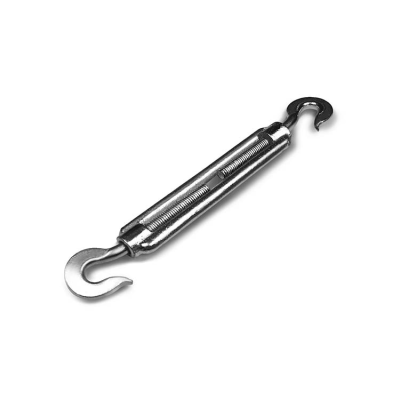

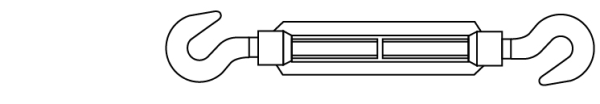

DIN 1480 turnbuckles, hook/hook

Name: DIN 1480 turnbuckles, hook/hook
Brand: uniq

Steel

Especially suitable for applications requiring tightening wires with rings, ropes with eyes, chains, etc.

The hook/hook turnbuckle provides for an instant assembly and quick tensioning.

TIPS: The quality of the finish guarantees a very good corrosion resistance. In order not to compromise safety, the SWL established for each size must never be exceeded.

Stainless steel AISI 316

The Hook/Hook stainless steel turnbuckle is especially recommended for quick and efficient assemblies.

TIPS: Excellent corrosion resistance is guaranteed by the stainless steel (AISI 316) used, essential for applications in marine environments. In order not to compromise safety, the Safe Working Load (SWL) established for each size must never be exceeded.

What material do you need?

Stainless steel AISI 316

Steel

Brochure-TGG.pdf

Download |

Material:
Steel C15

Finish:
Zinc plated

All references

Other products that may interest you

DIN 580 lifting eye bolt

DIN 582 lifting eye nut

DIN 741 wire rope clip

Wire rope clip U.S. type

DIN 1480 turnbuckles, hook/eye

D-Shackles

DIN 11024 R-clip

Center axle pin

Linchpin DIN 11023

Wire rope gripper UNILOQ

DIN 6899/A wire rope thimble

Round wire rope thimbles

S-hooks

Welded ring

Double swivel shackle

Twisted shackles

Turnbuckle threaded rod end piece

Long eye bolt with washer and nut

Turnbuckle eye end piece

Turnbuckle jaw end piece

Lifting hook with lock

Din 689 lifting hook with safety latch

Carbon steel lifting hook with safety latch

Alloy steel lifting hook with safety latch

Connecting links

Swivel hook with safety latch

Grade 80 eye self-locking hook

Grade 80 clevis self-locking hook

Grade 80 swivel self locking hook

Oblong master link

Master link assembly

DIN 3093 Aluminium ferrule

Simple wire rope clip

Double wire rope clip

Oval wire rope clip

Wire-stretcher

DIN 1480 turnbuckles, eye/eye

DIN 1478 turnbuckle jaw/jaw

DIN 1480 turnbuckle welding rod

DIN 1480 turnbuckle jaw/eye

DIN 1478 closed body turnbuckle hook/eye

DIN 1478 closed body turnbuckle hook/hook

DIN 1478 closed body turnbuckle eye/eye

DIN 1478 closed body turnbuckle jaw/jaw

DIN 1480 turnbuckle body

Hook for DIN 1480 turnbuckle

Eye for DIN 1480 turnbuckle

Welding rod

Oval lifting eye nut

Eye/eye swivel

D-shackles, square-head

D-Shackle heavy-duty

Heavy-duty d-type shackle with nut and cotter pin

Trawling d-shackle square head

Trawling d-shackle socket head

Bow shackles

Bow shackle square head

Bow shackle heavy-duty

Heavy-duty bow shackle with nut and cotter pin

Snap hook DIN 5299

DIN 5299 snap hook with safety latch

Quick links

Part number	Thread Dimension (Metric)	Denom.	L	Ø	N	L1	Working Load S.W.L (kg)	Box Quantity	Outer Box Quantity
09520650	M5	TGG105	70	7	35	56	60	50	400
09520669	M6	TGG106	110	8	55	77	70	50	300
09520677	M8	TGG108	110	10.5	57	85	140	25	150
09520685	M10	TGG110	125	13	68	106	220	25	75
09520693	M11	TGG111	125	15	68	110	260	25	25
09520706	M12	TGG112	125	16	70	117	310	10	50
09520714	M14	TGG114	140	18	75	124	450	10	40
09520722	M16	TGG116	170	20	88	144	600	10	10
09520730	M20	TGG120	200	21	105	170	910	5	5
09520749	M22	TGG122	220	24	118	200	1100	1	25
09520757	M24	TGG124	255	26	135	215	1300	1	30
09520765	M27	TGG127	255	34	135	240	1600	1	20
09520773	M30	TGG130	255	34	135	240	2100	1	10
09520781	M32	TGG132	295	38	148	260	2150	1	1
09520790	M36	TGG136	295	46	160	275	2300	1	6

Part number	Thread Dimension (Metric)	Denom.	L	L1	N	B	Working Load S.W.L (kg)	Box Quantity	Outer Box Quantity
09529233	M5	TGGI 105	70	56	35	9	50	10	160
09529241	M6	TGGI 106	110	77	55	10	80	10	80
09529250	M8	TGGI 108	110	86	57	12	160	10	10
09529268	M10	TGGI 110	125	97	60	14	250	5	5
09529276	M12	TGGI 112	125	100	62	17	400	5	5
