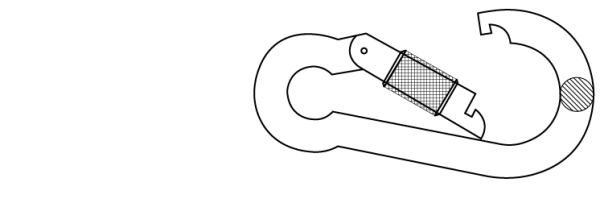

DIN 5299 snap hook with safety latch

Name: DIN 5299 snap hook with safety latch
Brand: uniq

Steel - With blister pack

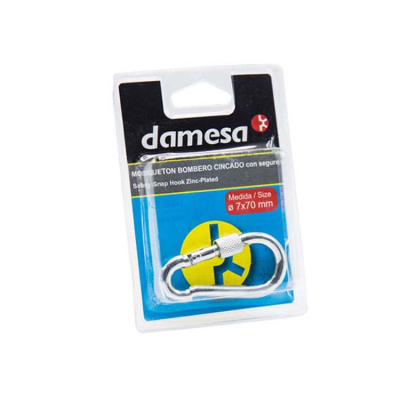

This DIN 5299 snap hook with a safety latch is presented in tamper-proof blister packaging and offers a higher level of safety for quick assemblies. Designed to prevent accidental opening, this accessory is ideal for applications requiring frequent usage and additional protection against carelessness or accidental friction.

It is recommended for assemblies where there is a risk of opening due to vibration, friction or accidental handling. Additionally, the blister pack format makes it perfect for professional self-service.

Built-in Safety System:
Unlike standard snap hooks, this model incorporates a threaded safety lock that prevents accidental opening due to friction, carelessness, or accidental handling. The closure is protected by a locking mechanism between the hinge and the body.

Firm Grip and Comfortable Use:
The internal thread of the lock ensures a solid closure, while the external knurling facilitates manual tightening and loosening, even when wearing gloves or in wet conditions. In addition, the locking snap-hook carabiner with safety latch has a corrosion-resistant finish and can withstand adverse outdoor conditions and humid environments.

Tips for Use:
To avoid compromising safety, never exceed the specified working load (W.L.L) for each size. It is also recommended that you check the locking mechanism before each use to ensure optimal performance.

NOTE: You should only use this item for industrial purposes, cable and chain attachments. It is NOT a form of Personal Protective Equipment (PPE) and is not suitable for climbing.

Steel - Without blister pack

The DIN 5299 with a safety latch offers the advantage that the safety latch between the hinge and the body of the DIN 5299 hinders it being opened due to carelessness, friction or error.

The inner thread of the safety latch ensures maximum grip and the outer grooves of the latch facilitates manual threading.

TIPS: In order not to compromise safety, the W.L.L established for each size must never be exceeded. The quality of the finish guarantees a very good corrosion resistance.

NOTE: You should only use this item for industrial purposes, cable and chain attachments. It is NOT a form of Personal Protective Equipment (PPE) and is not suitable for climbing.

Stainless steel AISI 316

NOTE: You should only use this item for industrial purposes, cable and chain attachments. It is NOT a form of Personal Protective Equipment (PPE) and is not suitable for climbing.

What material do you need?

Stainless steel AISI 316

Steel

What presentation do you need?

With blister pack

Without blister pack

Brochure-D5299S.pdf

Download |

Material:
Steel C15

Finish:
Zinc plated

All references

Other products that may interest you

DIN 580 lifting eye bolt

DIN 582 lifting eye nut

DIN 741 wire rope clip

Wire rope clip U.S. type

DIN 1480 turnbuckles, hook/eye

D-Shackles

DIN 11024 R-clip

Center axle pin

Linchpin DIN 11023

Wire rope gripper UNILOQ

DIN 6899/A wire rope thimble

Round wire rope thimbles

S-hooks

Welded ring

Double swivel shackle

Twisted shackles

Turnbuckle threaded rod end piece

Long eye bolt with washer and nut

Turnbuckle eye end piece

Turnbuckle jaw end piece

Lifting hook with lock

Din 689 lifting hook with safety latch

Carbon steel lifting hook with safety latch

Alloy steel lifting hook with safety latch

Connecting links

Swivel hook with safety latch

Grade 80 eye self-locking hook

Grade 80 clevis self-locking hook

Grade 80 swivel self locking hook

Oblong master link

Master link assembly

DIN 3093 Aluminium ferrule

Simple wire rope clip

Double wire rope clip

Oval wire rope clip

Wire-stretcher

DIN 1480 turnbuckles, hook/hook

DIN 1480 turnbuckles, eye/eye

DIN 1478 turnbuckle jaw/jaw

DIN 1480 turnbuckle welding rod

DIN 1480 turnbuckle jaw/eye

DIN 1478 closed body turnbuckle hook/eye

DIN 1478 closed body turnbuckle hook/hook

DIN 1478 closed body turnbuckle eye/eye

DIN 1478 closed body turnbuckle jaw/jaw

DIN 1480 turnbuckle body

Hook for DIN 1480 turnbuckle

Eye for DIN 1480 turnbuckle

Welding rod

Oval lifting eye nut

Eye/eye swivel

D-shackles, square-head

D-Shackle heavy-duty

Heavy-duty d-type shackle with nut and cotter pin

Trawling d-shackle square head

Trawling d-shackle socket head

Bow shackles

Bow shackle square head

Bow shackle heavy-duty

Heavy-duty bow shackle with nut and cotter pin

Snap hook DIN 5299

Quick links

Part number	d x L Dimension	Denomination	L	d	D	C	2R	Working Load W.L.L (kg)	Box Quantity	Outer Box Quantity
B9525806	6 x 60	Blister	60	6	9	8	18	120	2 u. x Blister	20 x Box
B9525814	7 x 70	Blister	70	7	10	8	20	180	1 u. x Blister	20 x Box
B9525822	8 x 80	Blister	80	8	12	9	24	230	1 u. x Blister	20 x Box

Part number	d x L Dimension	Denomination	L	d	D	C	2R	Working Load W.L.L (kg)	Box Quantity	Outer Box Quantity
09552799	4 x 40	DIN 5299 D104	40	4	7	7	14	70	200	2000
09552868	5 x 50	DIN 5299 D105	50	5	8	7	15.5	100	100	600
09552806	6 x 60	DIN 5299 D106	60	6	9	8	18	120	100	600
09552814	7 x 70	DIN 5299 D107	70	7	10	8	20	180	100	400
09552822	8 x 80	DIN 5299 D108	80	8	12	9	24	230	50	300
09552902	9 x 90	DIN 5299 D109	90	9	12	10	25	250	25	200
09552830	10 x 100	DIN 5299 D110	100	10	15	11	30	350	25	150
09552849	11 x 120	DIN 5299 D111	120	11	18	16	36	400	25	100
09552857	12 x 140	DIN 5299 D112	140	12	20	19	40	450	10	60

Part number	d x L Dimension	Denomination	d	L	D	C	B	Working Load W.L.L (kg)	Box Quantity	Outer Box Quantity
09552301	4 x 40	DIN 5299 DI104	4	40	7	7	20	36	25	200
09552313	5 x 50	DIN 5299 DI105	5	50	8	7	25	45	25	100
09552325	6 x 60	DIN 5299 DI106	6	60	9	8	30	60	10	100
09552337	7 x 70	DIN 5299 DI107	7	70	10	8	35	90	10	100
09552349	8 x 80	DIN 5299 DI108	8	80	12	9	40	110	10	50
09552361	10 x 100	DIN 5299 DI110	10	100	15	11	50	180	5	25
09552373	11 x 120	DIN 5299 DI111	11	120	18	16	57	220	5	25

DIN 5299 snap hook with safety latch

Steel - Without blister pack

Technical info for combination: Steel - Without blister pack

All References for combination: Steel - Without blister pack
