Types of chain hooks by UNIQ

Din 689 lifting hook with safety latch

With blister pack

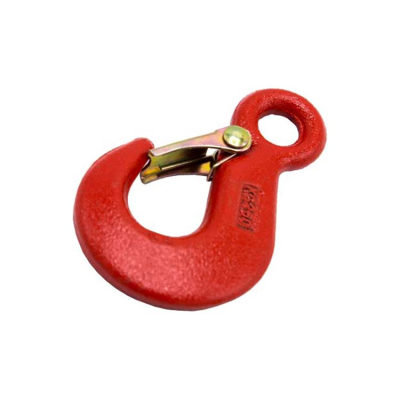

The DIN 689 lifting hook with a safety latch is an essential component for loading operations requiring safety, agility and mechanical strength. Its spring-activated locking system allows the safety mechanism to be opened quickly without compromising the assembly's overall safety. Its design ensures a smooth, efficient and durable connection in demanding industrial environments.

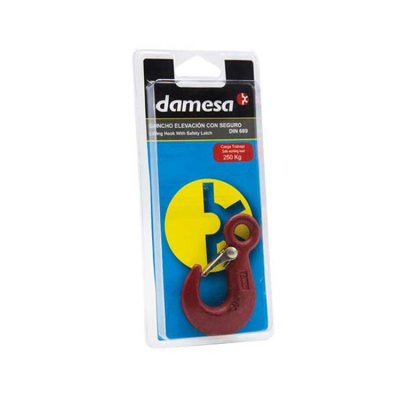

It comes in tamper-proof blister packaging for easy identification at the point of sale and to protect the product until installation. It is ideal for specialised hardware stores.

Recommended for use with cranes, slings, hoists and any other lifting system that requires precision and certified safety.

Spring-activated safety catch:
Prevents accidental opening during use. Allows for quick connection and disconnection without compromising the stability of the anchorage.

Embossed marking with load and material:
Each hook indicates its maximum working load (S.W.L.) in tonnes and the type of steel, making it easy to select:

Tips for Use:

Never exceed the maximum working load marked on the hook.

Without blister pack

The quality of the latch-activating spring makes it fast to operate without altering the safety level required by the process of lifting or moving loads. Each hook is marked with its working load in tonnes and with the material-identifying symbol: (C) for carbon steel hooks and (A) for alloy steel hooks, guaranteeing the correct choice.

TIPS: In order not to compromise safety, the SWL established for each hook must never be exceeded.

What presentation do you need?

With blister pack

Without blister pack

Brochure-GS.pdf

Download |

Material:
Steel C15

Finish:
Hook: Red
Dock and safety lock: Zinc plated

All references

Part number	Denomination	N ±0.5	B ±0.1	E ±1.2	Ø D ±0.5	L ±1	Working Load W.L.L (kg)	Box Quantity	Outer Box Quantity
B9523317	Blister	12	52.5	18	7.5	88	250	1 u. x Blister	10 x Box

Part number	Denomination	N ±0.5	B ±0.1	E ±1.2	Ø D ±0.5	L ±1	Working Load W.L.L (kg)	Box Quantity	Outer Box Quantity
09523317	GS 0250	12	52.5	18	7.5	88	250	25	100
09523325	GS 0500	16	70	23	10	117	500	25	75
