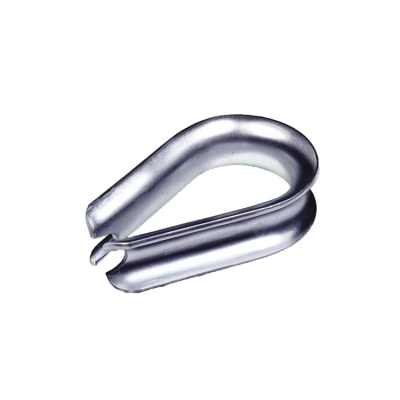

DIN 6899/A wire rope thimble

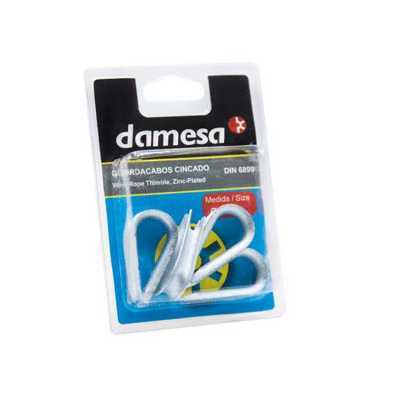

Steel - With blister pack

The DIN 6899/A wire rope thimble is an essential component for preserving the integrity of steel wires in mooring, lifting and tensioning systems. Thanks to its deep groove and aligned external edges, the wire sits securely on the thimble itself, preventing damage from friction or crushing. It also comes in tamper-proof blister packaging, making it ideal for specialised hardware stores and retail outlets.

This safe and durable option extends the useful life of the wire rope while maintaining the efficiency of the fastening system.

Total Wire Protection:
The internal profile of the wire rope thimble acts as a shield against abrasion, particularly in thimbles or loops that are under constant tension. It prevents deformation and premature cuts. Its finish also provides good corrosion resistance in outdoor applications.

Efficient and Stable Design:
Thanks to its standardised geometry in accordance with DIN 6899/A, the wire rope sits securely and stably in the channel.

Tips for Use:
Ensure the wire is fully seated in the channel and free from lateral tension.

Stainless steel AISI 316 - With blister pack

The DIN 6899/A stainless steel wire rope thimble, made from AISI 316 steel, offers maximum wire protection in applications exposed to aggressive, marine or high-humidity environments. Its solid structure with aligned edges and a deep channel allows the wire rope to sit correctly, preventing structural damage from constant friction.

Supplied in tamper-proof blister packaging, it is ideal for marketing in nautical, industrial or technical environments.

A safe and durable choice that guarantees wire performance in extreme conditions.

Precise Design for Wiring:
The deep groove in the body guides the wire rope perfectly, preventing crushing or damage under continuous or dynamic loads.

Nautical and Professional Installations:
Ideal for moorings, stainless steel railings and wire rope tensioning in decorative metal structures or outdoor architectural projects.

Tips for Use:
Ensure the wire rope sits completely in the channel without any lateral tension.

Steel - Without blister pack

The wire rope thimble is an essential element to protect the wire from any kind of friction. The perfect alignment and the absence of fissures on the outer edges, as well as the depth of the groove, guarantee the perfect seating of the wire.

TIPS: The quality of the steel of the wire rope thimble guarantees the wire is protected in the moment of the maximum traction. The quality of the finish guarantees good corrosion resistance.

What material do you need?

Stainless steel AISI 316

Steel

What presentation do you need?

With blister pack

Without blister pack

Brochure-GCC.pdf

Download |

Material:
Steel C15

Finish:
Zinc plated

All references

Part number	Ø Medida cable	Denomination	D	H	B	E	A	Box Quantity	Outer Box Quantity
B9520458	3	Blister	12	26.5	4	1	2	6 pcs. x Blister	20 x Box
B9520466	4	Blister	13	28.5	5	1	2.5	4 pcs. x Blister	20 x Box
B9520474	5	Blister	14	30	6	1	3	4 pcs. x Blister	20 x Box
B9520482	6	Blister	15	33	7	1	3.5	4 pcs. x Blister	20 x Box

Part number	Wire Ø (mm)	Denomination	D	H	B	Box Quantity	Outer Box Quantity
B9524555	2	Blister	9	19.5	2.5	4 pcs. x Blister	10 x Box
B9524563	2.5	Blister	10	21.5	3	4 pcs. x Blister	10 x Box
B9524571	3	Blister	12	26.5	4	4 pcs. x Blister	10 x Box
B9524580	4	Blister	13	28.5	5	2 u. x Blister	10 x Box

Part number	Ø Medida cable	Denomination	D	H	B	E	A	Box Quantity	Outer Box Quantity
09520458	3	GCC 103	12	26.5	4	1	2	200	2000
09520466	4	GCC 104	13	28.5	5	1	2.5	200	1600
09520474	5	GCC 105	14	30	6	1	3	200	1200
09520482	6	GCC 106	15	33	7	1	3.5	200	1000
09520490	8	GCC 108	18	39	9	1	4.5	100	400
09520503	10	GCC 110	22	47.5	11	2	5.5	100	300
09520511	12	GCC 112	26	56.5	13	2	6.5	100	100
09520520	13	GCC 113	28	61	14	3	7	50	50
09520538	15	GCC 115	32	69.5	16	3	8	50	50
09520546	18	GCC 118	40	86.5	20	4	10	50	50
09520554	20	GCC 120	44	95	22	5	11	25	25
09520562	24	GCC 124	48	105	26	6	13	10	10

Part number	Wire Ø (mm)	Denomination	D	H	B	Box Quantity	Outer Box Quantity
09524555	2	GCI 102	9	19.5	2.5	100	1600
09524563	2.5	GCI 125	10	21.5	3	100	1600
09524571	3	GCI 103	12	26.5	4	100	1600
09524580	4	GCI 104	13	28.5	5	50	800
09524598	5	GCI 105	14	30	6	50	800
09524600	6	GCI 106	15	33	7	50	800
09524619	8	GCI 108	18	39	9	50	400
09524627	10	GCI 110	22	47.5	11	25	200
09524635	12	GCI 112	26	56.5	13	10	160
09524643	14	GCI 114	28	57	14	5	80
