S-hooks

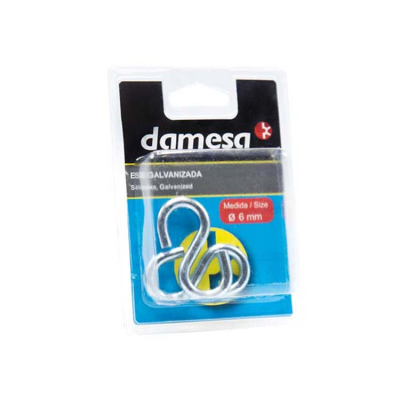

Steel - With blister pack

The S-shaped hook is a practical and economical piece of equipment that can be used to hang or join objects quickly and easily. Its symmetrical design, with proportions that are in balance with its thickness, provides great stability and versatility for a wide range of applications where the load is not excessive.

Made of galvanised steel, it offers good corrosion resistance in moderately humid or outdoor environments. It comes in tamper-proof blister packaging, which is ideal for hardware stores and DIY shops.

It is recommended for hanging light items such as signage, chains, tools, gardening equipment, decorations and for temporary applications.

Simple and Functional Design:
The S-shape allows for quick connection or hanging without the need for screws, nuts or tools. This makes it very useful for removable or frequently changed systems.

Greater Stability:
The balance of the hook's length and thickness provides reliable anchoring without deformation or imbalance during use.

Tips for Use:
Do not use this type of hook for lifting or heavy loads.

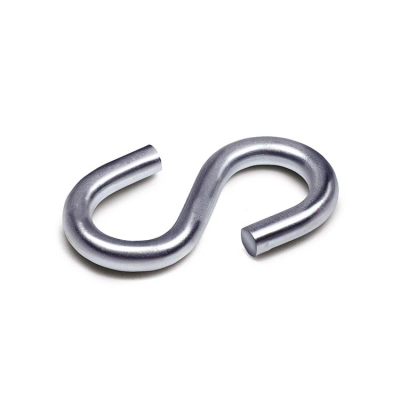

Steel - Without blister pack

It is the most functional, economical, fast and practical element for making connections with objects generally intended to be hung.

Its perfect S shape and the length proportional to the corresponding thickness guarantee excellent application safety.

TIPS: Galvanized S-hooks are not suitable for heavy working loads. The quality of the coating guarantees good corrosion resistance.

What material do you need?

Stainless steel AISI 316

Steel

What presentation do you need?

With blister pack

Without blister pack

Brochure-ESE.pdf

Download |

Material:
Steel C15

Finish:
Zinc plated

All references

Other products that may interest you

DIN 580 lifting eye bolt

DIN 582 lifting eye nut

DIN 741 wire rope clip

Wire rope clip U.S. type

DIN 1480 turnbuckles, hook/eye

D-Shackles

DIN 11024 R-clip

Center axle pin

Linchpin DIN 11023

Wire rope gripper UNILOQ

DIN 6899/A wire rope thimble

Round wire rope thimbles

Welded ring

Double swivel shackle

Twisted shackles

Turnbuckle threaded rod end piece

Long eye bolt with washer and nut

Turnbuckle eye end piece

Turnbuckle jaw end piece

Lifting hook with lock

Din 689 lifting hook with safety latch

Carbon steel lifting hook with safety latch

Alloy steel lifting hook with safety latch

Connecting links

Swivel hook with safety latch

Grade 80 eye self-locking hook

Grade 80 clevis self-locking hook

Grade 80 swivel self locking hook

Oblong master link

Master link assembly

DIN 3093 Aluminium ferrule

Simple wire rope clip

Double wire rope clip

Oval wire rope clip

Wire-stretcher

DIN 1480 turnbuckles, hook/hook

DIN 1480 turnbuckles, eye/eye

DIN 1478 turnbuckle jaw/jaw

DIN 1480 turnbuckle welding rod

DIN 1480 turnbuckle jaw/eye

DIN 1478 closed body turnbuckle hook/eye

DIN 1478 closed body turnbuckle hook/hook

DIN 1478 closed body turnbuckle eye/eye

DIN 1478 closed body turnbuckle jaw/jaw

DIN 1480 turnbuckle body

Hook for DIN 1480 turnbuckle

Eye for DIN 1480 turnbuckle

Welding rod

Oval lifting eye nut

Eye/eye swivel

D-shackles, square-head

D-Shackle heavy-duty

Heavy-duty d-type shackle with nut and cotter pin

Trawling d-shackle square head

Trawling d-shackle socket head

Bow shackles

Bow shackle square head

Bow shackle heavy-duty

Heavy-duty bow shackle with nut and cotter pin

Snap hook DIN 5299

DIN 5299 snap hook with safety latch

Quick links

Part number	Ø D Dimension	Denomination	B	A	C	Working Load W.L.L (kg)	Box Quantity	Outer Box Quantity
B9528628	4	Blister	11	35	5	20	6 pcs. x Blister	20 x Box
B9528644	5	Blister	14	45	5.5	30	4 pcs. x Blister	20 x Box
B9528652	6	Blister	16	55	7	50	2 u. x Blister	20 x Box
B9528660	7	Blister	20	65	7.5	70	1 u. x Blister	20 x Box

Part number	Ø D Dimension	Denomination	B	A	C	Working Load W.L.L (kg)	Box Quantity	Outer Box Quantity
09528601	3	ESE 103	7	25	3.5	7	200	4000
09528610	3.5	ESE 103,5	9	30	4	15	200	4000
09528628	4	ESE 104	11	35	5	20	200	2000
09528636	4.5	ESE 104,5	12	40	5	25	200	2000
09528644	5	ESE 105	14	45	5.5	30	200	800
09528652	6	ESE 106	16	55	7	50	100	600
09528660	7	ESE 107	20	65	7.5	70	50	400
09528679	8	ESE 108	23	75	8.5	130	50	200
09528687	9	ESE 109	24	90	11	150	25	150
09528695	10	ESE 110	25	103	13	180	25	100

Part number	Ø D Dimension	Denomination	B	L	F	Working Load W.L.L (kg)	Box Quantity	Outer Box Quantity
09529890	3	ESE3IN	7	25	3.5	7	100	1600
09529909	3.5	ESE35IN	10.5	35	4.5	15	100	1600
09529918	4	ESE4IN	11	35	4.5	20	100	800
09529927	4.5	ESE45IN	12	40	6	25	100	800
09529936	5	ESE5IN	14	45	6.5	30	50	400
09529945	6	ESE6IN	16	55	7	50	50	400
09529954	7	ESE7IN	18	65	8	70	25	200
09529963	8	ESE8IN	23	75	10	130	25	200
09529972	9	ESE9IN	24	90	11	150	10	80
09529981	10	ESE10IN	25	103	13.5	180	10	80

S-hooks

Steel - Without blister pack

Technical info for combination: Steel - Without blister pack
