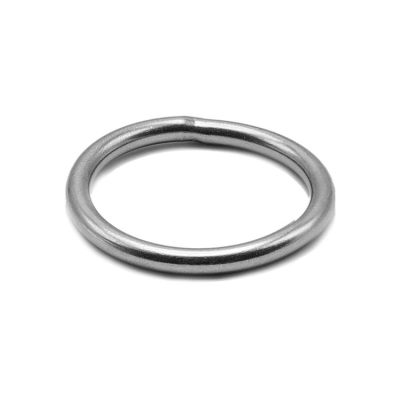

Welded ring

Name: Welded ring
Brand: uniq

Steel

These rings are recommended in applications where a quick fix is required, either directly on to the ring or using another fastener such as a snap-hook.

Application and observations: These rings are widely used in a variety of different applications. They can be used to organise cables, fasten nets and canopies or as a link to join two ends.

What material do you need?

Stainless steel AISI 316

Steel

Brochure-ASOL.pdf

Download |

Material:
Steel C15

Finish:
Zinc plated

All references

Other products that may interest you

DIN 580 lifting eye bolt

DIN 582 lifting eye nut

DIN 741 wire rope clip

Wire rope clip U.S. type

DIN 1480 turnbuckles, hook/eye

D-Shackles

DIN 11024 R-clip

Center axle pin

Linchpin DIN 11023

Wire rope gripper UNILOQ

DIN 6899/A wire rope thimble

Round wire rope thimbles

S-hooks

Double swivel shackle

Twisted shackles

Turnbuckle threaded rod end piece

Long eye bolt with washer and nut

Turnbuckle eye end piece

Turnbuckle jaw end piece

Lifting hook with lock

Din 689 lifting hook with safety latch

Carbon steel lifting hook with safety latch

Alloy steel lifting hook with safety latch

Connecting links

Swivel hook with safety latch

Grade 80 eye self-locking hook

Grade 80 clevis self-locking hook

Grade 80 swivel self locking hook

Oblong master link

Master link assembly

DIN 3093 Aluminium ferrule

Simple wire rope clip

Double wire rope clip

Oval wire rope clip

Wire-stretcher

DIN 1480 turnbuckles, hook/hook

DIN 1480 turnbuckles, eye/eye

DIN 1478 turnbuckle jaw/jaw

DIN 1480 turnbuckle welding rod

DIN 1480 turnbuckle jaw/eye

DIN 1478 closed body turnbuckle hook/eye

DIN 1478 closed body turnbuckle hook/hook

DIN 1478 closed body turnbuckle eye/eye

DIN 1478 closed body turnbuckle jaw/jaw

DIN 1480 turnbuckle body

Hook for DIN 1480 turnbuckle

Eye for DIN 1480 turnbuckle

Welding rod

Oval lifting eye nut

Eye/eye swivel

D-shackles, square-head

D-Shackle heavy-duty

Heavy-duty d-type shackle with nut and cotter pin

Trawling d-shackle square head

Trawling d-shackle socket head

Bow shackles

Bow shackle square head

Bow shackle heavy-duty

Heavy-duty bow shackle with nut and cotter pin

Snap hook DIN 5299

DIN 5299 snap hook with safety latch

Quick links

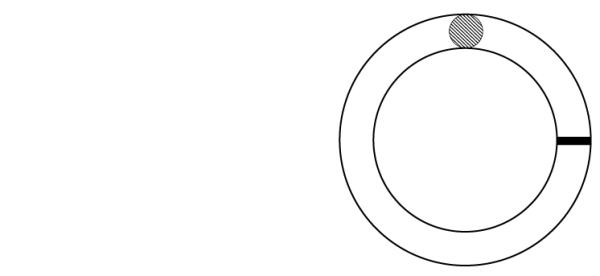

Part number	Medida Ø (mm)	Denomination	D	Working Load W.L.L (kg)	Box Quantity	Outer Box Quantity
09527309	3	ASOL 320	20	7	200	2400
09527318	4	ASOL 425	25	20	200	2400
09527327	4	ASOL 430	30	20	200	1600
09527336	5	ASOL 535	35	30	100	800
09527345	5	ASOL 540	40	30	100	800
09527354	6	ASOL 645	45	50	100	800
09527363	6	ASOL 650	50	50	50	200
09527372	8	ASOL 860	60	130	50	250
09527381	8	ASOL 880	80	130	20	120
09527390	10	ASOL 1010	100	180	20	20

Part number	Application Ø (mm)	Denomination	D	Working Load W.L.L (kg)	Box Quantity	Outer Box Quantity
09525323	3	ASOLI 320	20	50	200	1600
09525334	4	ASOLI 425	25	70	200	2000
09525345	4	ASOLI 430	30	70	200	1600
09525356	5	ASOLI 535	35	100	100	800
09525367	5	ASOLI 540	40	100	100	800
09525378	6	ASOLI 645	45	150	50	600
09525389	6	ASOLI 650	50	150	50	400
09525390	8	ASOLI 860	60	200	50	50

Welded ring

Steel

Technical info for combination: Steel

All References for combination: Steel
