Scaffolding anchor Ø24 M-8

Name: Scaffolding anchor Ø24 M-8
Brand: lukia

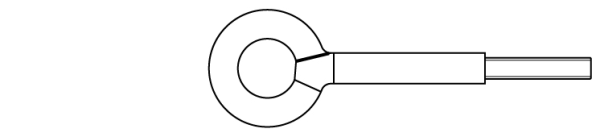

Wrought

Forged anchor that provides additional security since it has no welds, further minimizing potential weak points. It has a metric thread that can be threaded into a metal plug for M8 façades and scaffolds. Once threaded, it activates the metal plug system that expands inside the hole generating pressure on the walls, leaving a highly secure fastening.

The 24 mm ring can host any element that improves the fastening.

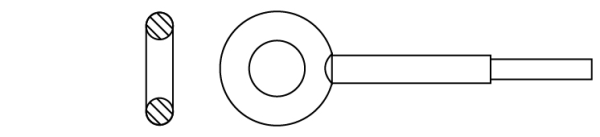

Welded

Anchor with metric thread that can be threaded into a metal plug for M8 façades and scaffolds. Once threaded, it activates the metal plug system that expands inside the hole generating pressure on the walls, achieving a highly secure fastening. The 24 mm ring can host any element that improves the fastening.

What do you need?

Welded

Wrought

Brochure-ASM24.pdf

Download |

Material:
Steel - Fe

Finish:
Zinc plated

All references

Other products that may interest you

TAS-DME expansion anchor bolt

TAS-DME expansion anchor hook

TAS-DME expansion anchor eyebolt

TAS-DME expansion anchor special

TAS-TWA expansion anchor

TAS-TDA expansion anchor

Metal plug

Scaffolding anchor

Scaffolding anchor Ø50

Scaffolding extension

Expandable metal anchor with screw

Metal expandable anchor pliers

Toggle anchor

Part number	Denomination	M Metric thread	Ø D ±0.2	L ±1	Ø d Min. - Max.	F ±1	Box Quantity	Outer Box Quantity
09112159	AFM24-12135	M8	12	135	23 - 25	43	25	25
09112167	AFM24-12160	M8	12	160	23 - 25	43	25	100
09112175	AFM24-12180	M8	12	180	23 - 25	43	25	100

Part number	Denomination	M Metric thread	Ø D ± 0.2	L ± 1	Ø d Min. - Max.	F ± 1	Box Quantity	Outer Box Quantity
09112124	ASM24-12135	M8	12	135	23,0-25,0	43	25	100
09112132	ASM24-12160	M8	12	160	23,0-25,0	43	25	100
09112140	AFM24-12180	M8	12	180	23,0-25,0	43	25	100

Scaffolding anchor Ø24 M-8

Welded

Technical info for combination: Welded

All References for combination: Welded
