How to install Lukia threaded metal anchors

TAS-TWA expansion anchor

Steel

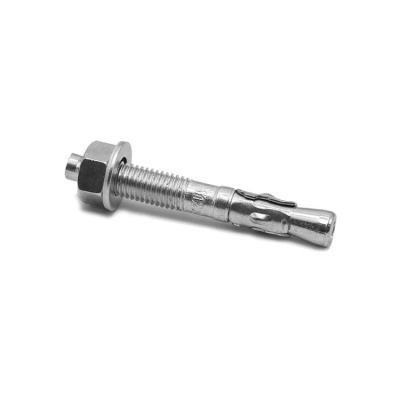

This anchor has a rod with an outer thread and an anchor clip at the end. The conical shape of the end of the rod enables the clip to expand and be fixed by the force exerted and the friction produced when threading. Likewise, the clip’s shape prevents rotation and chipping. It is very important to follow the tightening torque indicated on the technical data sheets.

Stainless steel AISI 304

What material do you need?

Stainless steel AISI 304

Steel

Brochure-TASTWA.pdf

Download |

Material:
Threaded shaft and clip: Grade 4.8 carbon steel
Washer and nut: Steel

Finish:
Zinc plated

Wisher:
DIN 125A

Thread:
DIN 934

All references

Part number	M x L Dimension	Ø Drill mm	Tightening Torque Nm	Fixing thickness mm	Extraction Tension Resistance kN	Cutting Resistance kN	Box Quantity	Outer Box Quantity
09107010	6 x 45	6	5	10	3.3	1.9	200	200
09107028	6 x 60	6	5	25	3.3	1.9	200	200
09107790	6 x 70	6	5	12	7.5	1.9	200	200
09107036	6 x 80	6	5	30	7.5	1.9	100	100
09107803	6 x 85	6	5	27	7.5	1.9	100	100
09107811	6 x 100	6	5	42	7.5	1.9	100	100
09107820	6 x 120	6	5	70	7.5	1.9	100	100
09107044	8 x 50	8	10	5	4.6	3.4	100	100
09107052	8 x 60	8	10	15	4.6	3.4	100	100
09107060	8 x 75	8	10	15	10.2	3.4	100	100
09107079	8 x 90	8	10	30	10.2	3.4	100	100
09107087	8 x 115	8	10	55	10.2	3.4	100	100
09107095	8 x 130	8	10	70	10.2	3.4	100	100
09107838	8 x 150	8	10	80	10.2	3.4	75	75
09107116	10 x 70	10	28	15	7.5	5.4	100	100
09107124	10 x 90	10	28	20	14.3	5.4	75	75
09107140	10 x 120	10	28	50	14.3	5.4	50	50
09107159	10 x 150	10	28	80	14.3	5.4	50	50
09107846	10 x 170	10	28	90	14.3	5.4	50	50
09107854	10 x 210	10	28	130	14.3	5.4	50	50
09107175	12 x 75	12	34	5	10.2	7.8	50	50
09107183	12 x 90	12	34	20	10.2	7.8	50	50
09107191	12 x 110	12	34	20	18.8	7.8	50	50
09107204	12 x 140	12	34	50	18.8	7.8	50	50
09107212	12 x 160	12	34	70	18.8	7.8	50	50
09107220	12 x 180	12	34	90	18.8	7.8	25	25
09107862	12 x 220	12	34	128	18.8	7.8	25	25
09107870	14 x 80	14	90	5	11.2	9.2	25	25
09107889	14 x 95	14	90	10	11.2	9.2	25	25
09107897	14 x 120	14	90	12	23.4	9.2	25	25
09107900	14 x 145	14	90	37	23.4	9.2	25	25
09107918	14 x 180	14	90	55	23.4	9.2	25	25
09107239	16 x 90	16	120	5	12.2	14.5	25	25
09107247	16 x 110	16	120	15	12.2	14.5	25	25
09107255	16 x 125	16	120	25	18.8	14.5	25	25
09107263	16 x 145	16	120	20	31.7	14.5	25	25
09107271	16 x 170	16	120	45	31.7	14.5	25	25
09107280	16 x 220	16	120	98	31.7	14.5	25	50
09107298	16 x 250	16	120	128	31.7	14.5	25	25
09107942	20 x 120	20	200	25	14.3	22.6	25	25
09107950	20 x 160	20	200	15	40.5	22.6	25	25
09107969	20 x 220	20	200	75	40.5	22.6	25	25
09107977	20 x 270	20	200	125	40.5	22.6	25	25

All references

Part number	M x L Dimension	Ø Drill mm	Tightening Torque Nm	Fixing thickness mm	Extraction Tension Resistance kN	Cutting Resistance kN	Box Quantity	Outer Box Quantity
29107010	6 x 45	6	5	10	3.3	2.2	150	1800
29107028	6 x 60	6	5	25	3.3	2.2	150	1800
29107036	6 x 80	6	5	30	7.5	2.2	100	800
29107820	6 x 120	6	5	70	7.5	2.2	100	800
29107044	8 x 50	8	10	8	4.6	4	100	800
29107060	8 x 75	8	10	18	10.2	4	75	600
29107079	8 x 90	8	10	33	10.2	4	75	600
29107116	10 x 70	10	28	13	7.5	6.4	50	400
29107124	10 x 90	10	28	18	14.3	6.4	50	400
29107140	10 x 120	10	28	48	14.3	6.4	25	200
29107175	12 x 75	12	34	8	10.2	9.3	25	200
29107183	12 x 90	12	34	23	10.2	9.3	25	200
29107191	12 x 110	12	34	23	18.8	9.3	25	200
29107204	12 x 140	12	34	53	18.8	9.3	25	200
29107239	16 x 90	16	120	7	14.3	17.3	15	120
29107263	16 x 145	16	120	27	31.7	17.3	10	80
29107271	16 x 170	16	120	52	31.7	17.3	10	80
29107942	20 x 120	20	200	31	14.3	26.9	5	40
29107950	20 x 160	20	200	21	40.5	26.9	5	40
29107969	20 x 220	20	200	81	40.5	26.9	5	30
