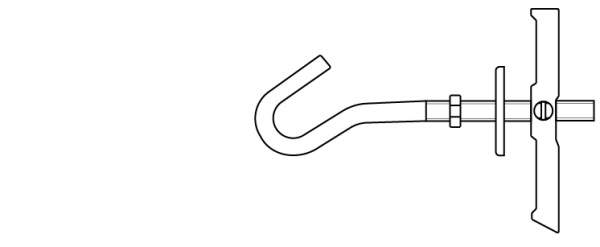

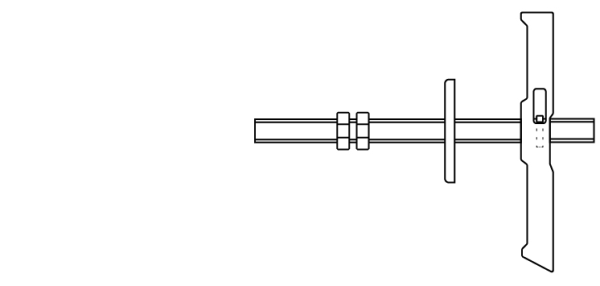

Toggle anchor

Name: Toggle anchor
Brand: lukia

Bolt

The toggle anchor with set screw is normally used in false ceilings or hollow plasterboard ceilings, roofing or fibre sheets.

What do you need?

Bolt

Hook

Brochure-BASCME.pdf

Material:
White zinc plated steel

Application:
For hanging lightweight parts on gypsum board, hollow concrete, chipboard or plywood

All references

Other products that may interest you

TAS-DME expansion anchor bolt

TAS-DME expansion anchor hook

TAS-DME expansion anchor eyebolt

TAS-DME expansion anchor special

TAS-TWA expansion anchor

TAS-TDA expansion anchor

Metal plug

Scaffolding anchor

Scaffolding anchor Ø24 M-8

Scaffolding anchor Ø50

Scaffolding extension

Expandable metal anchor with screw

Metal expandable anchor pliers

Part number	Denomination	M Metric thread	A	B	Ø E	Box Quantity	Outer Box Quantity
03130117	BASCME M4	M4	100	50	25	50	50
03130133	BASCME M5	M5	100	60	25	50	50
03130150	BASGME M6	M6	100	75	25	50	50

Part number	Denomination	M Metric thread	A	B	C	D	Ø E	Box Quantity	Outer Box Quantity
03130109	BASCMG M4	M4	100	50	60	3.5	25	50	50
03130125	BASCMG M5	M5	100	60	60	4.4	25	50	50
03130141	BASGMG M6	M6	100	75	60	5.2	25	50	50
