Wing nut
Steel

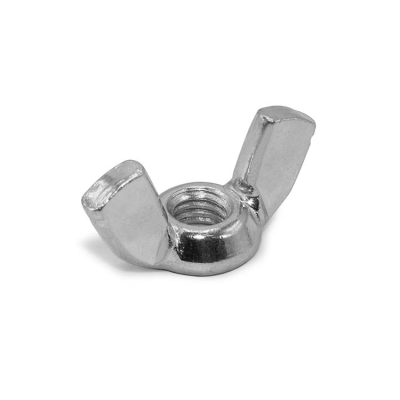

Wingnuts are hand-tightened nuts that can be tightened or loosened without using tools. The nut has two wings to tighten it using the fingers. It is very widely used and eases application in assemblies that must be constantly loosened and tightened.
Stainless steel AISI 304
Wingnuts are hand-tightened nuts that can be tightened or loosened without using tools. The nut has two wings to tighten it using the fingers. It is very widely used and eases application in assemblies that must be constantly loosened and tightened. As it is made of AISI 304 stainless steel, it is perfect for the outdoors and humid environments.
What material do you need?
All References for combination: Steel
All references
| Part number | Metric Thread | Thread Type | A Min. - Max. | B Min. - Max. | ØC Mín. - Máx.. | D Min. - Max. | E Min. - Max. | P Threaded hole | Box Quantity | Outer Box Quantity |
|---|---|---|---|---|---|---|---|---|---|---|
| 02085015 | M 3 | Metric | 20,00-22,00 | 9,00-10,20 | 8,30-9,30 | 3,80-4,20 | 2,30-2,70 | 0.5 | 500 | 4000 |
| 02085023 | M 4 | Metric | 20,00-22,00 | 9,00-10,20 | 8,30-9,30 | 3,80-4,20 | 2,30-2,70 | 0.7 | 500 | 4000 |
| 02085031 | M 5 | Metric | 20,00-22,00 | 9,00-10,20 | 8,30-9,30 | 3,80-4,20 | 2,30-2,70 | 0.8 | 200 | 3200 |
| 02085040 | M 6 | Metric | 25,80-27,80 | 12,30-13,50 | 11,40-12,40 | 4,60-5,20 | 2,80-3,20 | 1 | 200 | 1600 |
| 02085066 | M 8 | Metric | 29,30-31,30 | 14,20-15,50 | 13,00-14,00 | 5,10-5,70 | 3,10-3,50 | 1.25 | 100 | 1600 |
| 02085074 | M 10 | Metric | 34,10-36,50 | 16,60-18,00 | 14,60-16,00 | 5,90-6,70 | 3,70-4,30 | 1.5 | 100 | 800 |
| 02085082 | M 12 | Metric | 46,20-48,80 | 21,30-23,30 | 19,60-21,40 | 7,40-8,40 | 4,60-5,40 | 1.75 | 50 | 400 |
| 02085090 | M 14 | Metric | 63,30-66,70 | 29,30-32,30 | 24,00-26,00 | 10,00-11,20 | 6,00-7,00 | 2 | 50 | 400 |
| 02085103 | M 16 | Metric | 63,30-66,70 | 29,30-32,30 | 24,00-26,00 | 10,00-11,20 | 6,00-7,00 | 2 | 25 | 200 |
| 02085111 | M 18 | Metric | 64,80-68,20 | 29,70-32,70 | 28,30-30,30 | 11,60-12,80 | 6,70-7,70 | 2.5 | 25 | 200 |
| 02085250 | M 20 | Metric | 64,80-68,20 | 29,70-32,70 | 28,30-30,30 | 11,60-12,80 | 6,70-7,70 | 2.5 | 25 | 200 |
| 02085154 | 1/8" | Whitworth | 17,70-19,20 | 8,20-9,40 | 7,40-8,20 | 2,80-3,20 | 1,80-2,20 | 0.635 | 500 | 4000 |
| 02085162 | 5/32" | Whitworth | 20,00-22,00 | 9,00-10,20 | 8,30-9,30 | 3,80-4,20 | 2,30-2,70 | 0.795 | 500 | 4000 |
| 02085170 | 3/16 " | Whitworth | 20,00-22,00 | 9,00-10,20 | 8,30-9,30 | 3,80-4,20 | 2,30-2,70 | 1.059 | 200 | 3200 |
| 02085189 | 1/4" | Whitworth | 25,80-27,80 | 12,30-13,50 | 11,40-12,40 | 4,60-5,20 | 2,80-3,20 | 1.27 | 200 | 1600 |
| 02085197 | 5/16" | Whitworth | 29,30-31,30 | 14,20-15,50 | 13,00-14,00 | 5,10-5,70 | 3,10-3,50 | 1.411 | 100 | 1600 |
| 02085200 | 3/8" | Whitworth | 34,10-36,50 | 16,60-18,00 | 14,60-16,00 | 5,90-6,70 | 3,70-4,30 | 1.588 | 100 | 800 |
| 02085218 | 1/2" | Whitworth | 46,20-48,80 | 21,30-23,30 | 19,60-21,40 | 7,40-8,40 | 4,60-5,40 | 2.117 | 50 | 400 |
| 02085226 | 9/16" | Whitworth | 63,30-66,70 | 29,30-32,30 | 24,00-26,00 | 10,00-11,20 | 6,00-7,00 | 2.117 | 50 | 400 |
| 02085234 | 5/8" | Whitworth | 63,30-66,70 | 29,30-32,30 | 24,00-26,00 | 10,00-11,20 | 6,00-7,00 | 2.309 | 25 | 200 |
| 02085250 | 3/4" | Whitworth | 64,80-68,20 | 29,70-32,70 | 28,30-30,30 | 11,60-12,80 | 6,70-7,70 | 2.54 | 25 | 200 |
All References for combination: Stainless steel AISI 304
All references
| Part number | Metric Thread | Thread Type | A Min. - Max. | B Min. - Max. | ØC Mín. - Máx.. | D Min. - Max. | E Min. - Max. | P Threaded hole | Box Quantity | Outer Box Quantity |
|---|---|---|---|---|---|---|---|---|---|---|
| 02085517 | M 3 | Metric | 20,00-22,00 | 9,00-10,20 | 8,30-9,30 | 3,80-4,20 | 2,30-2,70 | 0.5 | 500 | 4000 |
| 02085525 | M 4 | Metric | 20,00-22,00 | 9,00-10,20 | 8,30-9,30 | 3,80-4,20 | 2,30-2,70 | 0.7 | 500 | 4000 |
| 02085533 | M 5 | Metric | 20,00-22,00 | 9,00-10,20 | 8,30-9,30 | 3,80-4,20 | 2,30-2,70 | 0.8 | 200 | 3200 |
| 02085541 | M 6 | Metric | 25,80-27,80 | 12,30-13,50 | 11,40-12,40 | 4,60-5,20 | 2,80-3,20 | 1 | 200 | 3200 |
| 02085550 | M 8 | Metric | 29,30-31,30 | 14,20-15,50 | 13,00-14,00 | 5,10-5,70 | 3,10-3,50 | 1.25 | 100 | 1600 |
| 02085568 | M 10 | Metric | 34,10-36,50 | 16,60-18,00 | 14,60-16,00 | 5,90-6,70 | 3,70-4,30 | 1.5 | 100 | 800 |
| 02085576 | M 12 | Metric | 46,20-48,80 | 21,30-23,30 | 19,60-21,40 | 7,40-8,40 | 4,60-5,40 | 1.75 | 50 | 400 |
| 02085584 | M 14 | Metric | 63,30-66,70 | 29,30-32,30 | 24,00-26,00 | 10,00-11,20 | 6,00-7,00 | 2 | 50 | 400 |
| 02085592 | M 16 | Metric | 63,30-66,70 | 29,30-32,30 | 24,00-26,00 | 10,00-11,20 | 6,00-7,00 | 2 | 25 | 200 |
| 02085605 | M 18 | Metric | 64,80-68,20 | 29,70-32,70 | 28,30-30,30 | 11,60-12,80 | 6,70-7,70 | 2.5 | 25 | 200 |
| 02085613 | M 20 | Metric | 64,80-68,20 | 29,70-32,70 | 28,30-30,30 | 11,60-12,80 | 6,70-7,70 | 2.5 | 25 | 200 |
| 02085656 | 1/8" | Whitworth | 17,70-19,20 | 8,20-9,40 | 7,40-8,20 | 2,80-3,20 | 1,80-2,20 | 0.635 | 500 | 4000 |
| 02085664 | 5/32" | Whitworth | 20,00-22,00 | 9,00-10,20 | 8,30-9,30 | 3,80-4,20 | 2,30-2,70 | 0.795 | 500 | 4000 |
| 02085672 | 3/16 " | Whitworth | 20,00-22,00 | 9,00-10,20 | 8,30-9,30 | 3,80-4,20 | 2,30-2,70 | 1.059 | 200 | 6400 |
| 02085680 | 1/4" | Whitworth | 25,80-27,80 | 12,30-13,50 | 11,40-12,40 | 4,60-5,20 | 2,80-3,20 | 1.27 | 200 | 3200 |
| 02085699 | 5/16" | Whitworth | 29,30-31,30 | 14,20-15,50 | 13,00-14,00 | 5,10-5,70 | 3,10-3,50 | 1.411 | 100 | 1600 |
| 02085701 | 3/8" | Whitworth | 34,10-36,50 | 16,60-18,00 | 14,60-16,00 | 5,90-6,70 | 3,70-4,30 | 1.588 | 100 | 800 |
| 02085710 | 1/2" | Whitworth | 46,20-48,80 | 21,30-23,30 | 19,60-21,40 | 7,40-8,40 | 4,60-5,40 | 2.117 | 50 | 400 |
| 02085728 | 9/16" | Whitworth | 63,30-66,70 | 29,30-32,30 | 24,00-26,00 | 10,00-11,20 | 6,00-7,00 | 2.117 | 50 | 400 |
| 02085736 | 5/8" | Whitworth | 63,30-66,70 | 29,30-32,30 | 24,00-26,00 | 10,00-11,20 | 6,00-7,00 | 2.309 | 25 | 200 |
| 02085752 | 3/4" | Whitworth | 64,80-68,20 | 29,70-32,70 | 28,30-30,30 | 11,60-12,80 | 6,70-7,70 | 2.54 | 25 | 200 |
