How to install Standard, Trebol and Aluminium Flower Rivet

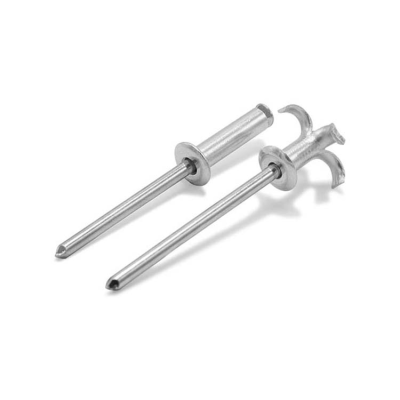

Aluminium blind flower rivets

Without lacquer

Aluminium blind flower rivets are ideal for joining rigid materials to soft or malleable materials.

Their unique design allows the rivet tube to be divided into four parts, like 'petals'. This ensures a strong and uniform assembly. In terms of finish, this rivet is also available uncoated, offering effectiveness at a lower price.

What finish do you need?

Black lacquered

Blue lacquered

White lacquered

Without lacquer

Brochure-ALFL.pdf

Download |

Material:
Body: Aluminum AL Mg 3.5
Stem: A1K Steel

Finish:
Body: Polished
Stem: Zinc plated Cr3

All references

Part number	Ø Dimension d1 x L	Ø d1 +0,08 -0,15	L +1.0 - 0.2	Ø d2	M Mín.	K ± 0.2	Ø W ± 0.15	Ø Hole	Box Quantity	Outer Box Quantity
09105305	4,0 x 10	4,0	10	8,0 +-0,2	27	1,0	2,20	4,20	500	4000
09105073	4,0 x 12	4,0	12	8,0 +-0,2	27	1,0	2,20	4,20	500	4000
09105161	4,0 x 14	4,0	14	8,0 +-0,2	27	1,0	2,20	4,20	500	8000
09105090	4,0 x 16	4,0	16	8,0 +-0,2	27	1,0	2,20	4,20	500	4000
09105794	4,0 x 18	4,0	18	8,0 +-0,2	27	1,0	2,20	4,20	500	4000
09105436	4,0 x 20	4,0	20	8,0 +-0,2	27	1,0	2,20	4,20	500	4000
09105313	4,0 x 25	4,0	25	8,0 +-0,2	27	1,0	2,20	4,20	250	2000
09105225	4,8 x 10	4,8	10	9,5 +-0,3	27	1,1	2,73	5,00	500	4000
09105321	4,8 x 12	4,8	12	9,5 +-0,3	27	1,1	2,73	5,00	500	8000
09105145	4,8 x 14	4,8	14	9,5 +-0,3	27	1,1	2,73	5,00	250	2000
09105153	4,8 x 16	4,8	16	9,5 +-0,3	27	1,1	2,73	5,00	250	2000
09105217	4,8 x 18	4,8	18	9,5 +-0,3	27	1,1	2,73	5,00	250	2000
09105170	4,8 x 21	4,8	21	9,5 +-0,3	27	1,1	2,73	5,00	250	2000
09105209	4,8 x 24	4,8	24	9,5 +-0,3	27	1,1	2,73	5,00	200	1600
09105452	4,8 x 30	4,8	30	9,5 +-0,3	27	1,1	2,73	5,00	200	1600
09105233	4,8 x 35	4,8	35	9,5 +-0,3	27	1,1	2,73	5,00	150	1200
09105241	4,8 x 40	4,8	40	9,5 +-0,3	27	1,1	2,73	5,00	150	1200
09105250	4,8 x 45	4,8	45	9,5 +-0,3	27	1,1	2,73	5,00	100	1600
09105479	4,8 x 50	4,8	50	9,5 +-0,3	27	1,1	2,73	5,00	100	1600

All references

Part number	Ø Dimension d1 x L	Ø d1 +0,08 -0,15	L +1.0 - 0.2	Ø d2	M Mín.	K ± 0.2	Ø W ± 0.15	Ø Hole	Box Quantity	Outer Box Quantity
69105151	4,8 x 16	4,8	16	9,5 +-0,3	27	1,1	2,73	5,00	250	2000
69105192	4,8 x 21	4,8	21	9,5 +-0,3	27	1,1	2,73	5,00	250	2000

Part number	Ø Dimension d1 x L	Ø d1 +0,08 -0,15	L +1.0 - 0.2	Ø d2	M Mín.	K ± 0.2	Ø W ± 0.15	Ø Hole	Box Quantity	Outer Box Quantity
89105093	4,0 x 16	4,0	16	8,0 +-0,2	27	1,0	2,20	4,20	500	4000
89105098	4,0 x 18	4,0	18	8,0 +-0,2	27	1,0	2,20	4,20	500	4000
89105431	4,0 x 20	4,0	20	8,0 +-0,2	27	1,0	2,20	4,20	1000	1000
89105159	4,8 x 16	4,8	16	9,5 +-0,3	27	1,1	2,73	5,00	250	2000
89105212	4,8 x 18	4,8	18	9,5 +-0,3	27	1,1	2,73	5,00	250	2000
89105170	4,8 x 21	4,8	21	9,5 +-0,3	27	1,1	2,73	5,00	250	2000

Part number	Ø Dimension d1 x L	Ø d1 +0,08 -0,15	L +1.0 - 0.2	Ø d2	M Mín.	K ± 0.2	Ø W ± 0.15	Ø Hole	Box Quantity	Outer Box Quantity
79105096	4,0 x 16	4,0	16	8,0 +-0,2	27	1,0	2,20	4,20	500	8000
79105099	4,0 x 18	4,0	18	8,0 +-0,2	27	1,0	2,20	4,20	500	2000
79105433	4,0 x 20	4,0	20	8,0 +-0,2	27	1,0	2,20	4,20	1000	1000
79105150	4,8 x 16	4,8	16	9,5 +-0,3	27	1,1	2,73	5,00	250	2000
79105216	4,8 x 18	4,8	18	9,5 +-0,3	27	1,1	2,73	5,00	250	2000
79105175	4,8 x 21	4,8	21	9,5 +-0,3	27	1,1	2,73	5,00	250	2000
