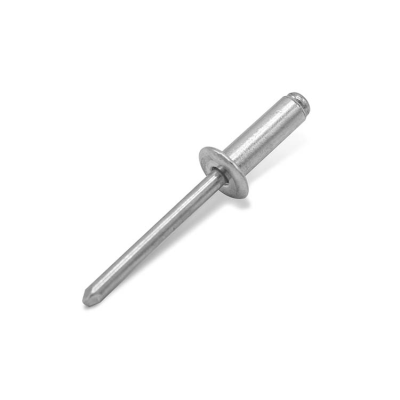

Standard blind rivets
Lacquered aluminum - White lacquered
Standard Blind Rivets are ideal for securely joining all types of metal materials.
Manufactured in a white lacquered finish, they are ideal for use in assemblies where an aesthetic finish is required.
Lacquered aluminum - Black lacquered
Standard Blind Rivets are ideal for securely joining all types of metal materials.
Manufactured in a black lacquered finish, they are ideal for use in assemblies where an aesthetic finish is required.
Steel
Standard Blind Rivets are ideal for securely fastening all types of metal materials.
With a mandrel and body made from high strength steel, our blind rivets offer high strength and resistance to breakage, as well as greater consistency in assembly.
Aluminum
The standard blind rivets are ideal for securely fastening all types of metal materials.
Manufactured from high strength aluminium steel, our rivets offer high strength and resistance to breakage, as well as greater assembly consistency.
Stainless steel AISI 304
Standard Blind Rivets are ideal for securely fastening all types of metal materials.
Manufactured entirely from AISI 304 stainless steel, our rivets offer maximum performance in environments where there is a risk of corrosion.
What material do you need?
Technical info for combination: Lacquered aluminum - White lacquered
Brochure-ALBL.pdf
Download
|
Material:
Body: Aluminum AL Mg 3.5
Stem: A1K Steel
Finish:
Body: Lacquered black RAL 9010
Stem: Zinc plated Cr3
Technical info for combination: Lacquered aluminum - Black lacquered
Brochure-ALNEG.pdf
Download
|
Material:
Body: Aluminum AL Mg 3.5
Stem: A1K Steel
Finish:
Body: Lacquered black RAL 9005
Stem: Zinc plated Cr3
Technical info for combination: Steel
Brochure-REMAC.pdf
Download
|
Material:
Steel A3K body
Steel A1K mandrel
Finish:
Zinc Plated Cr3 body and mandrel
Technical info for combination: Aluminum
Brochure-REMAL.pdf
Download
|
Material:
Body: AI 5050 steel
Stem: Carbon Steel
Finish:
Body: Polished
Stem: Zinc plated Cr3
Technical info for combination: Stainless steel AISI 304
Brochure-REMIN.pdf
Download
|
Material:
Stainless steel A2 AISI 304
Finish:
Cr3 zinc plated
All References for combination: Lacquered aluminum - White lacquered
All references
| Part number | Ø Dimension d1 x L | Ø d1 +0,08 -0,15 | L +1.0 - 0.2 | Ø d2 | M Min. | K ± 0.2 | Ø W ± 0.15 | Ø Hole | Box Quantity | Outer Box Quantity |
|---|---|---|---|---|---|---|---|---|---|---|
| 89101043 | 3,2 x 6 | 3,2 | 6 | 6,4 +-0,2 | 27 | 1,0 | 1,80 | 3,30 | 500 | 8000 |
| 89101051 | 3,2 x 8 | 3,2 | 8 | 6,4 +-0,2 | 27 | 1,0 | 1,80 | 3,30 | 500 | 4000 |
| 89101060 | 3,2 x 10 | 3,2 | 10 | 6,4 +-0,2 | 27 | 1,0 | 1,80 | 3,30 | 500 | 8000 |
| 89101078 | 3,2 x 12 | 3,2 | 12 | 6,4 +-0,2 | 27 | 1,0 | 1,80 | 3,30 | 500 | 8000 |
| 89101107 | 4,0 x 6 | 4,0 | 6 | 8,0 +-0,2 | 27 | 1,4 | 2,20 | 4,10 | 500 | 8000 |
| 89101123 | 4,0 x 8 | 4,0 | 8 | 8,0 +-0,2 | 27 | 1,4 | 2,20 | 4,10 | 500 | 8000 |
| 89101131 | 4,0 x 10 | 4,0 | 10 | 8,0 +-0,2 | 27 | 1,4 | 2,20 | 4,10 | 500 | 8000 |
| 89101140 | 4,0 x 12 | 4,0 | 12 | 8,0 +-0,2 | 27 | 1,4 | 2,20 | 4,10 | 500 | 4000 |
| 89101730 | 4,0 x 14 | 4,0 | 14 | 8,0 +-0,2 | 27 | 1,4 | 2,20 | 4,10 | 500 | 4000 |
| 89101748 | 4,0 x 16 | 4,0 | 16 | 8,0 +-0,2 | 27 | 1,4 | 2,20 | 4,10 | 1000 | 8000 |
| 89101761 | 4,0 x 18 | 4,0 | 18 | 8,0 +-0,2 | 27 | 1,4 | 2,20 | 4,10 | 5000 | 4000 |
| 89101756 | 4,0 x 20 | 4,0 | 20 | 8,0 +-0,2 | 27 | 1,4 | 2,20 | 4,10 | 1000 | 8000 |
| 89101220 | 4,8 x 8 | 4,8 | 8 | 9,5 +-0,3 | 27 | 1,5 | 2,65 | 4,90 | 500 | 4000 |
| 89101238 | 4,8 x 10 | 4,8 | 10 | 9,5 +-0,3 | 27 | 1,5 | 2,65 | 4,90 | 500 | 4000 |
| 89101246 | 4,8 x 12 | 4,8 | 12 | 9,5 +-0,3 | 27 | 1,5 | 2,65 | 4,90 | 500 | 4000 |
| 89101502 | 4,8 x 14 | 4,8 | 14 | 9,5 +-0,3 | 27 | 1,5 | 2,65 | 4,90 | 250 | 2000 |
| 89101254 | 4,8 x 16 | 4,8 | 16 | 9,5 +-0,3 | 27 | 1,5 | 2,65 | 4,90 | 250 | 2000 |
| 89101265 | 4,8 x 18 | 4,8 | 18 | 9,5 +-0,3 | 27 | 1,5 | 2,65 | 4,90 | 250 | 2000 |
| 89101270 | 4,8 x 21 | 4,8 | 21 | 9,5 +-0,3 | 27 | 1,5 | 2,65 | 4,90 | 250 | 2000 |
All References for combination: Lacquered aluminum - Black lacquered
All references
| Part number | Ø Dimension d1 x L | Ø d1 +0,08 -0,15 | L +1.0 - 0.2 | Ø d2 | M Min. | K ± 0.2 | Ø W ± 0.15 | Ø Hole | Box Quantity | Outer Box Quantity |
|---|---|---|---|---|---|---|---|---|---|---|
| 79101045 | 3,2 x 6 | 3,2 | 6 | 6,4 +-0,2 | 27 | 1,0 | 1,80 | 3,30 | 500 | 8000 |
| 79101053 | 3,2 x 8 | 3,2 | 8 | 6,4 +-0,2 | 27 | 1,0 | 1,80 | 3,30 | 1000 | 8000 |
| 79101061 | 3,2 x 10 | 3,2 | 10 | 6,4 +-0,2 | 27 | 1,0 | 1,80 | 3,30 | 500 | 8000 |
| 79101520 | 3,2 x 12 | 3,2 | 12 | 6,4 +-0,2 | 27 | 1,0 | 1,80 | 3,30 | 500 | 8000 |
| 79101109 | 4,0 x 6 | 4,0 | 6 | 8,0 +-0,2 | 27 | 1,4 | 2,20 | 4,10 | 500 | 4000 |
| 79101125 | 4,0 x 8 | 4,0 | 8 | 8,0 +-0,2 | 27 | 1,4 | 2,20 | 4,10 | 500 | 8000 |
| 79101467 | 4,0 x 10 | 4,0 | 10 | 8,0 +-0,2 | 27 | 1,4 | 2,20 | 4,10 | 500 | 4000 |
| 79101141 | 4,0 x 12 | 4,0 | 12 | 8,0 +-0,2 | 27 | 1,4 | 2,20 | 4,10 | 500 | 8000 |
| 79101731 | 4,0 x 14 | 4,0 | 14 | 8,0 +-0,2 | 27 | 1,4 | 2,20 | 4,10 | 500 | 8000 |
| 79101740 | 4,0 x 16 | 4,0 | 16 | 8,0 +-0,2 | 27 | 1,4 | 2,20 | 4,10 | 500 | 4000 |
| 79101168 | 4,0 x 18 | 4,0 | 18 | 8,0 +-0,2 | 27 | 1,4 | 2,20 | 4,10 | 500 | 2000 |
| 79101758 | 4,0 x 20 | 4,0 | 20 | 8,0 +-0,2 | 27 | 1,4 | 2,20 | 4,10 | 500 | 4000 |
| 79101221 | 4,8 x 8 | 4,8 | 8 | 9,5 +-0,3 | 27 | 1,5 | 2,65 | 4,90 | 500 | 4000 |
| 79101230 | 4,8 x 10 | 4,8 | 10 | 9,5 +-0,3 | 27 | 1,5 | 2,65 | 4,90 | 500 | 4000 |
| 79101248 | 4,8 x 12 | 4,8 | 12 | 9,5 +-0,3 | 27 | 1,5 | 2,65 | 4,90 | 500 | 8000 |
| 79101504 | 4,8 x 14 | 4,8 | 14 | 9,5 +-0,3 | 27 | 1,5 | 2,65 | 4,90 | 250 | 4000 |
| 79101512 | 4,8 x 16 | 4,8 | 16 | 9,5 +-0,3 | 27 | 1,5 | 2,65 | 4,90 | 250 | 4000 |
| 79101531 | 4,8 x 18 | 4,8 | 18 | 9,5 +-0,3 | 27 | 1,5 | 2,65 | 4,90 | 250 | 2000 |
| 79100122 | 4,8 x 21 | 4,8 | 21 | 9,5 +-0,3 | 27 | 1,5 | 2,65 | 4,90 | 250 | 2000 |
All References for combination: Steel
All references
| Part number | Ø Dimension d1 x L | Ø d1 +0,08 -0,15 | L +1.0 - 0.2 | Ø d2 | M Min. | K ± 0.2 | Ø W ± 0.15 | Ø Hole | Box Quantity | Outer Box Quantity |
|---|---|---|---|---|---|---|---|---|---|---|
| 09103350 | 3,0 x 6 | 3,0 | 6 | 6,0 +-0,2 | 27 | 1,0 | 2,00 | 3,10 | 500 | 8000 |
| 09103211 | 3,0 x 8 | 3,0 | 8 | 6,0 +-0,2 | 27 | 1,0 | 2,00 | 3,10 | 500 | 8000 |
| 09103385 | 3,0 x 10 | 3,0 | 10 | 6,0 +-0,2 | 27 | 1,0 | 2,00 | 3,10 | 500 | 8000 |
| 09103393 | 3,0 x 12 | 3,0 | 12 | 6,0 +-0,2 | 27 | 1,0 | 2,00 | 3,10 | 500 | 4000 |
| 09103019 | 3,2 x 6 | 3,2 | 6 | 6,4 +-0,2 | 27 | 1,0 | 2,00 | 3,30 | 500 | 8000 |
| 09103027 | 3,2 x 8 | 3,2 | 8 | 6,4 +-0,2 | 27 | 1,0 | 2,00 | 3,30 | 500 | 8000 |
| 09103035 | 3,2 x 10 | 3,2 | 10 | 6,4 +-0,2 | 27 | 1,0 | 2,00 | 3,30 | 500 | 8000 |
| 09103043 | 3,2 x 12 | 3,2 | 12 | 6,4 +-0,2 | 27 | 1,0 | 2,00 | 3,30 | 500 | 4000 |
| 09103051 | 4,0 x 6 | 4,0 | 6 | 8,0 +-0,2 | 27 | 1,3 | 2,40 | 4,10 | 500 | 4000 |
| 09103060 | 4,0 x 8 | 4,0 | 8 | 8,0 +-0,2 | 27 | 1,3 | 2,40 | 4,10 | 500 | 4000 |
| 09103078 | 4,0 x 10 | 4,0 | 10 | 8,0 +-0,2 | 27 | 1,3 | 2,40 | 4,10 | 500 | 4000 |
| 09103086 | 4,0 x 12 | 4,0 | 12 | 8,0 +-0,2 | 27 | 1,3 | 2,40 | 4,10 | 500 | 8000 |
| 09103094 | 4,0 x 14 | 4,0 | 14 | 8,0 +-0,2 | 27 | 1,3 | 2,40 | 4,10 | 500 | 4000 |
| 09103473 | 4,0 x 16 | 4,0 | 16 | 8,0 +-0,2 | 27 | 1,3 | 2,40 | 4,10 | 500 | 4000 |
| 09103107 | 4,0 x 18 | 4,0 | 18 | 8,0 +-0,2 | 27 | 1,3 | 2,40 | 4,10 | 500 | 4000 |
| 09103481 | 4,0 x 20 | 4,0 | 20 | 8,0 +-0,2 | 27 | 1,3 | 2,40 | 4,10 | 500 | 4000 |
| 09103490 | 4,8 x 6 | 4,8 | 6 | 9,5 +-0,3 | 27 | 1,4 | 2,93 | 4,90 | 500 | 4000 |
| 09103115 | 4,8 x 8 | 4,8 | 8 | 9,5 +-0,3 | 27 | 1,4 | 2,93 | 4,90 | 500 | 4000 |
| 09103123 | 4,8 x 10 | 4,8 | 10 | 9,5 +-0,3 | 27 | 1,4 | 2,93 | 4,90 | 500 | 4000 |
| 09103131 | 4,8 x 12 | 4,8 | 12 | 9,5 +-0,3 | 27 | 1,4 | 2,93 | 4,90 | 500 | 4000 |
| 09103529 | 4,8 x 14 | 4,8 | 14 | 9,5 +-0,3 | 27 | 1,4 | 2,93 | 4,90 | 500 | 4000 |
| 09103537 | 4,8 x 16 | 4,8 | 16 | 9,5 +-0,3 | 27 | 1,4 | 2,93 | 4,90 | 500 | 4000 |
| 09103158 | 4,8 x 18 | 4,8 | 18 | 9,5 +-0,3 | 27 | 1,4 | 2,93 | 4,90 | 500 | 4000 |
| 09103166 | 4,8 x 21 | 4,8 | 21 | 9,5 +-0,3 | 27 | 1,4 | 2,93 | 4,90 | 500 | 4000 |
| 09103174 | 4,8 x 24 | 4,8 | 24 | 9,5 +-0,3 | 27 | 1,4 | 2,93 | 4,90 | 400 | 4000 |
| 09103326 | 4,8 x 30 | 4,8 | 30 | 9,5 +-0,3 | 27 | 1,4 | 2,93 | 4,90 | 200 | 1600 |
| 09103596 | 6,4 x 12 | 6,4 | 12 | 13,0 +-0,3 | 27 | 2,2 | 3,85 | 6,50 | 500 | 2000 |
| 09103609 | 6,4 x 15 | 6,4 | 15 | 13,0 +-0,3 | 27 | 2,2 | 3,85 | 6,50 | 500 | 500 |
| 09103617 | 6,4 x 18 | 6,4 | 18 | 13,0 +-0,3 | 27 | 2,2 | 3,85 | 6,50 | 500 | 500 |
| 09103625 | 6,4 x 22 | 6,4 | 22 | 13,0 +-0,3 | 27 | 2,2 | 3,85 | 6,50 | 500 | 500 |
| 09103633 | 6,4 x 25 | 6,4 | 25 | 13,0 +-0,3 | 27 | 2,2 | 3,85 | 6,50 | 500 | 500 |
| 09103641 | 6,4 x 30 | 6,4 | 30 | 13,0 +-0,3 | 27 | 2,2 | 3,85 | 6,50 | 100 | 800 |
All References for combination: Aluminum
All references
| Part number | Ø Dimension D x L | Ø D +0,08 -0,15 | L +1.0 - 0.2 | Ø H | P Min. | T ± 0.2 | Ø W ± 0.15 | Ø Hole | Box Quantity | Outer Box Quantity |
|---|---|---|---|---|---|---|---|---|---|---|
| 09101013 | 2,4 x 6 | 2.4 | 6 | 4,7 +0,3 -0,1 | 27 | 0.8 | 1.4 | 2.5 | 500 | 10000 |
| 09101021 | 2,4 x 8 | 2.4 | 8 | 4,7 +0,3 -0,1 | 27 | 0.8 | 1.4 | 2.5 | 500 | 8000 |
| 09101620 | 3,0 x 5 | 3 | 5 | 6,5 +0 -0,7 | 27 | 1 | 1.75 | 3.1 | 500 | 10000 |
| 09101638 | 3,0 x 6 | 3 | 6 | 6,5 +0 -0,7 | 27 | 1 | 1.75 | 3.1 | 500 | 10000 |
| 09101646 | 3,0 x 7 | 3 | 7 | 6 ±0,2 | 27 | 1 | 1.8 | 3.1 | 500 | 8000 |
| 09101611 | 3,0 x 8 | 3 | 8 | 6,5 +0 -0,7 | 27 | 1 | 1.75 | 3.1 | 500 | 10000 |
| 09101662 | 3,0 x 10 | 3 | 10 | 6,5 +0 -0,7 | 27 | 1 | 1.75 | 3.1 | 500 | 10000 |
| 09101689 | 3,0 x 12 | 3 | 12 | 6,5 +0 -0,7 | 27 | 1 | 1.75 | 3.1 | 500 | 10000 |
| 09101030 | 3,2 x 5 | 3.2 | 5 | 6,4 ±0,2 | 27 | 1 | 1.8 | 3.3 | 500 | 8000 |
| 09101048 | 3,2 x 6 | 3.2 | 6 | 6,5 +0 -0,7 | 27 | 1 | 1.75 | 3.3 | 500 | 10000 |
| 09101056 | 3,2 x 8 | 3.2 | 8 | 6,5 +0 -0,7 | 27 | 1 | 1.75 | 3.3 | 500 | 10000 |
| 09101064 | 3,2 x 10 | 3.2 | 10 | 6,5 +0 -0,7 | 27 | 1 | 1.75 | 3.3 | 500 | 10000 |
| 09101072 | 3,2 x 12 | 3.2 | 12 | 6,5 +0 -0,7 | 27 | 1 | 1.75 | 3.3 | 500 | 10000 |
| 09101080 | 3,2 x 15 | 3.2 | 15 | 6,5 +0 -0,7 | 27 | 1 | 1.75 | 3.3 | 500 | 10000 |
| 09101099 | 3,2 x 18 | 3.2 | 18 | 6,5 +0 -0,7 | 27 | 1 | 1.75 | 3.3 | 500 | 10000 |
| 09101603 | 4,0 x 5 | 4 | 5 | 8 ±0,2 | 27 | 1.4 | 2.2 | 4.1 | 500 | 4000 |
| 09101101 | 4,0 x 6 | 4 | 6 | 7,5 ±0,5 | 27 | 1.2 | 2.08 | 4.1 | 500 | 4000 |
| 09101110 | 4,0 x 7 | 4 | 7 | 7,5 ±0,5 | 27 | 1.2 | 2.08 | 4.1 | 500 | 10000 |
| 09101128 | 4,0 x 8 | 4 | 8 | 7,5 ±0,5 | 27 | 1.2 | 2.08 | 4.1 | 500 | 10000 |
| 09101136 | 4,0 x 10 | 4 | 10 | 7,5 ±0,5 | 27 | 1.2 | 2.08 | 4.1 | 500 | 10000 |
| 09101144 | 4,0 x 12 | 4 | 12 | 7,5 ±0,5 | 27 | 1.2 | 2.08 | 4.1 | 500 | 10000 |
| 09101734 | 4,0 x 14 | 4 | 14 | 7,5 ±0,5 | 27 | 1.2 | 2.08 | 4.1 | 500 | 10000 |
| 09101742 | 4,0 x 16 | 4 | 16 | 7,5 ±0,5 | 27 | 1.2 | 2.08 | 4.1 | 500 | 10000 |
| 09101160 | 4,0 x 18 | 4 | 18 | 7,5 ±0,5 | 27 | 1.2 | 2.08 | 4.1 | 500 | 10000 |
| 09101750 | 4,0 x 20 | 4 | 20 | 7,5 ±0,5 | 27 | 1.2 | 2.08 | 4.1 | 500 | 10000 |
| 09101195 | 4,0 x 25 | 4 | 25 | 8 ±0,2 | 27 | 1.4 | 2.2 | 4.1 | 500 | 4000 |
| 09101208 | 4,0 x 30 | 4 | 30 | 8 ±0,2 | 27 | 1.4 | 2.2 | 4.1 | 500 | 4000 |
| 09101216 | 4,8x 6 | 4.8 | 6 | 9,5 +0 -0,01 | 27 | 1.4 | 2.58 | 4.9 | 500 | 10000 |
| 09101224 | 4,8 x 8 | 4.8 | 8 | 9,5 +0 -0,01 | 27 | 1.4 | 2.58 | 4.9 | 500 | 10000 |
| 09101232 | 4,8 x 10 | 4.8 | 10 | 9,5 +0 -0,01 | 27 | 1.4 | 2.58 | 4.9 | 500 | 10000 |
| 09101240 | 4,8 x 12 | 4.8 | 12 | 9,5 +0 -0,01 | 27 | 1.4 | 2.58 | 4.9 | 500 | 10000 |
| 09101507 | 4,8 x 14 | 4.8 | 14 | 9,5 +0 -0,01 | 27 | 1.4 | 2.58 | 4.9 | 500 | 5000 |
| 09101515 | 4,8 x 16 | 4.8 | 16 | 9,5 +0 -0,01 | 27 | 1.4 | 2.58 | 4.9 | 500 | 5000 |
| 09101267 | 4,8 x 18 | 4.8 | 18 | 9,5 +0 -0,01 | 27 | 1.4 | 2.58 | 4.9 | 500 | 5000 |
| 09101275 | 4,8 x 21 | 4.8 | 21 | 9,5 +0 -0,01 | 27 | 1.4 | 2.58 | 4.9 | 250 | 5000 |
| 09101283 | 4,8 x 24 | 4.8 | 24 | 9,5 +0 -0,01 | 27 | 1.4 | 2.58 | 4.9 | 250 | 5000 |
| 09101291 | 4,8 x 27 | 4.8 | 27 | 9,5 ±0,3 | 27 | 1.5 | 2.65 | 4.9 | 200 | 3200 |
| 09101304 | 4,8 x 30 | 4.8 | 30 | 9,5 +0 -0,01 | 27 | 1.4 | 2.58 | 4.9 | 250 | 2500 |
| 09101312 | 4,8 x 35 | 4.8 | 35 | 9,5 ±0,3 | 27 | 1.5 | 2.65 | 4.9 | 250 | 2000 |
| 09101339 | 4,8 x 45 | 4.8 | 45 | 9,5 ±0,3 | 27 | 1.5 | 2.65 | 4.9 | 500 | 500 |
| 09101830 | 6,0 x 8 | 6 | 8 | 12 ±0,3 | 27 | 1.8 | 3.2 | 6.1 | 500 | 2000 |
| 09101371 | 6,0 x 10 | 6 | 10 | 12 ±0,3 | 27 | 1.8 | 3.2 | 6.1 | 500 | 4000 |
| 09101380 | 6,0 x 12 | 6 | 12 | 12 ±0,3 | 27 | 1.8 | 3.2 | 6.1 | 500 | 4000 |
| 09101398 | 6,0 x 16 | 6 | 16 | 12 ±0,3 | 27 | 1.8 | 3.2 | 6.1 | 500 | 500 |
| 09101400 | 6,0 x 18 | 6 | 18 | 12 ±0,3 | 27 | 1.8 | 3.2 | 6.1 | 400 | 1600 |
| 09101419 | 6,0 x 20 | 6 | 20 | 12 ±0,3 | 27 | 1.8 | 3.2 | 6.1 | 400 | 3200 |
| 09101427 | 6,0 x 25 | 6 | 25 | 12 ±0,3 | 27 | 1.8 | 3.2 | 6.1 | 400 | 1600 |
| 09101910 | 6,4 x 12 | 6.4 | 12 | 13 ±0,3 | 27 | 2.2 | 3.6 | 6.5 | 500 | 500 |
| 09101929 | 6,4 x 15 | 6.4 | 15 | 13 ±0,3 | 27 | 2.2 | 3.6 | 6.5 | 250 | 2000 |
| 09101937 | 6,4 x 18 | 6.4 | 18 | 13 ±0,3 | 27 | 2.2 | 3.6 | 6.5 | 400 | 1600 |
All References for combination: Stainless steel AISI 304
All references
| Part number | Ø Dimension d1 x L | Ø d1 +0,08 -0,15 | L +1.0 - 0.2 | Ø d2 | M Min. | K ± 0.2 | Ø W ± 0.15 | Ø Hole | Box Quantity | Outer Box Quantity |
|---|---|---|---|---|---|---|---|---|---|---|
| 09104011 | 3,2 x 6 | 3,2 | 6 | 6,4 +-0,2 | 27 | 1,0 | 2,1 | 3,30 | 500 | 4000 |
| 09104020 | 3,2 x 8 | 3,2 | 8 | 6,4 +-0,2 | 27 | 1,0 | 2,1 | 3,30 | 500 | 4000 |
| 09104038 | 3,2 x 10 | 3,2 | 10 | 6,4 +-0,2 | 27 | 1,0 | 2,1 | 3,30 | 500 | 4000 |
| 09104046 | 3,2 x 12 | 3,2 | 12 | 6,4 +-0,2 | 27 | 1,0 | 2,1 | 3,30 | 500 | 4000 |
| 09104265 | 3,2 x 15 | 3,2 | 15 | 6,4 +-0,2 | 27 | 1,0 | 2,1 | 3,30 | 500 | 8000 |
| 09104054 | 4,0 x 6 | 4,0 | 6 | 8,0 +-0,2 | 27 | 1,3 | 2,4 | 4,10 | 500 | 4000 |
| 09104062 | 4,0 x 8 | 4,0 | 8 | 8,0 +-0,2 | 27 | 1,3 | 2,4 | 4,10 | 500 | 8000 |
| 09104070 | 4,0 x 10 | 4,0 | 10 | 8,0 +-0,2 | 27 | 1,3 | 2,4 | 4,10 | 500 | 4000 |
| 09104089 | 4,0 x 12 | 4,0 | 12 | 8,0 +-0,2 | 27 | 1,3 | 2,4 | 4,10 | 500 | 4000 |
| 09104097 | 4,0 x 14 | 4,0 | 14 | 8,0 +-0,2 | 27 | 1,3 | 2,4 | 4,10 | 500 | 4000 |
| 09104310 | 4,0 x 16 | 4,0 | 16 | 8,0 +-0,2 | 27 | 1,3 | 2,4 | 4,10 | 500 | 5000 |
| 09104100 | 4,0 x 18 | 4,0 | 18 | 8,0 +-0,2 | 27 | 1,3 | 2,4 | 4,10 | 500 | 4000 |
| 09104101 | 4,0 x 20 | 4,0 | 20 | 8,0 +-0,2 | 27 | 1,3 | 2,4 | 4,10 | 500 | 3000 |
| 09104126 | 4,8 x 8 | 4,0 | 8 | 9,0 +-0,3 | 27 | 1,6 | 3,1 | 4,10 | 500 | 4000 |
| 09104134 | 4,8 x 10 | 4,8 | 10 | 9,0 +-0,3 | 27 | 1,6 | 3,1 | 4,90 | 500 | 4000 |
| 09104142 | 4,8 x 12 | 4,8 | 12 | 9,0 +-0,3 | 27 | 1,6 | 3,1 | 4,90 | 500 | 4000 |
| 09104150 | 4,8 x 14 | 4,8 | 14 | 9,0 +-0,3 | 27 | 1,6 | 3,1 | 4,90 | 500 | 4000 |
| 09104214 | 4,8 x 16 | 4,8 | 16 | 9,0 +-0,3 | 27 | 1,6 | 3,1 | 4,90 | 500 | 2000 |
| 09104169 | 4,8 x 18 | 4,8 | 18 | 9,0 +-0,3 | 27 | 1,6 | 3,1 | 4,90 | 500 | 4000 |
| 09104353 | 4,8 x 20 | 4,8 | 20 | 9,0 +-0,3 | 27 | 1,6 | 3,1 | 4,90 | 500 | 4000 |
| 09104185 | 4,8 x 25 | 4,8 | 25 | 9,0 +-0,3 | 27 | 1,6 | 3,1 | 4,90 | 200 | 1600 |
| 09104206 | 4,8 x 30 | 4,8 | 30 | 9,0 +-0,3 | 27 | 1,6 | 3,1 | 4,90 | 500 | 4000 |
Other products that may interest you
