Tutorial on how to install t-form multi-crimp ring

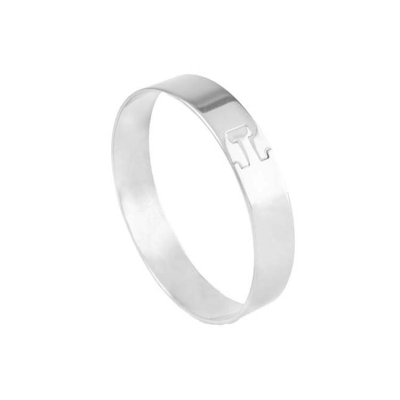

T-Form Multi-Crimp Ring

The T-Form Multi-Crimp Ring is designed to achieve perfect circularity when pressure is applied to it, providing exceptional sealing in series applications.

Benefits:

Solid and Secure Design: Manufactured in one piece, the ring provides a robust, economical and tamper-proof solution once installed, ideal for applications where security and durability are required.
Easy Installation: Compression rings ensure a perfect connection between hose and coupling. Once the ring closest to the outer diameter of the hose has been selected, a special tool is used to compress or squeeze the ring, reducing its diameter by up to 3mm until it fits snugly into the application.
Versatile applications: These rings are ideal for a wide range of industries and are particularly useful in serial assemblies.

What quality do you need?

Brochure-AC719.pdf

Material:
W4 - Steel AISI 304

Finish:
Stainless steel

Corrosion resistance:
400 hours salt spray (ASTM B-117)

All references

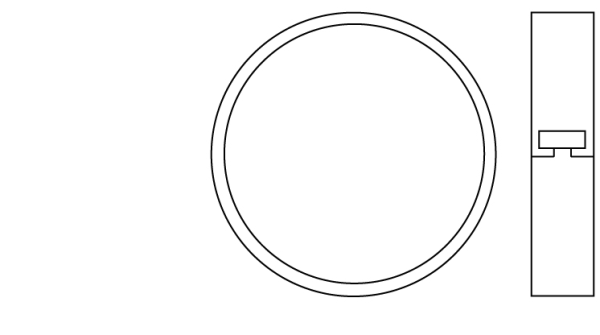

Part number	Ø Application mm	Denomination	A	B ±0.5	C +0.2-0.1	Box Quantity
63036085	16,5-19,5	Puzzle Form Multi-Crimp Ring 20	7 mm	20	1.2	200
63036106	17,5-20,5	Puzzle Form Multi-Crimp Ring 21	7 mm	21	1.2	200
63036127	18,5-21,5	Puzzle Form Multi-Crimp Ring 22	7 mm	22	1.2	200
63036148	19,5-22,5	Puzzle Form Multi-Crimp Ring 23	7 mm	23	1.2	200
63036169	20,5-23,5	Puzzle Form Multi-Crimp Ring 24	7 mm	24	1.2	200
63036180	20,5-24,5	Puzzle Form Multi-Crimp Ring 25	7 mm	25	1.2	200
63036201	21,5-25,5	Puzzle Form Multi-Crimp Ring 26	7 mm	26	1.2	200
63036222	22,5-26,5	Puzzle Form Multi-Crimp Ring 27	7 mm	27	1.2	200
63036243	23,5-27,5	Puzzle Form Multi-Crimp Ring 28	7 mm	28	1.2	200
63036264	24,5-28,5	Puzzle Form Multi-Crimp Ring 29	7 mm	29	1.2	200
63036285	25,5-29,5	Puzzle Form Multi-Crimp Ring 30	7 mm	30	1.2	200
63036306	25,5-30,5	Puzzle Form Multi-Crimp Ring 31	7 mm	31	1.2	200
63036327	26,5-31,5	Puzzle Form Multi-Crimp Ring 32	7 mm	32	1.2	200
63036348	27,5-32,5	Puzzle Form Multi-Crimp Ring 33	7 mm	33	1.2	200
63036369	28,5-33,5	Puzzle Form Multi-Crimp Ring 34	7 mm	34	1.2	200
63036380	29,5-34,5	Puzzle Form Multi-Crimp Ring 35	7 mm	35	1.2	200
63036401	30,5-35,5	Puzzle Form Multi-Crimp Ring 36	7 mm	36	1.2	200
63036422	31,5-36,5	Puzzle Form Multi-Crimp Ring 37	7 mm	37	1.2	200
63036443	32,5-37,5	Puzzle Form Multi-Crimp Ring 38	7 mm	38	1.2	200
63036464	33,5-38,5	Puzzle Form Multi-Crimp Ring 39	7 mm	39	1.2	200
63036485	34,5-39,5	Puzzle Form Multi-Crimp Ring 40	7 mm	40	1.2	200
63036501	35,5-40,5	Puzzle Form Multi-Crimp Ring 41	7 mm	41	1.2	200
63036523	36,5-41,5	Puzzle Form Multi-Crimp Ring 42	7 mm	42	1.2	200
73036085	16,5-19,5	Puzzle Form Multi-Crimp Ring 20	10 mm	20	1.2	200
73036106	17,5-20,5	Puzzle Form Multi-Crimp Ring 21	10 mm	21	1.2	200
73036127	18,5-21,5	Puzzle Form Multi-Crimp Ring 22	10 mm	22	1.2	200
73036148	19,5-22,5	Puzzle Form Multi-Crimp Ring 23	10 mm	23	1.2	200
73036169	20,5-23,5	Puzzle Form Multi-Crimp Ring 24	10 mm	24	1.2	200
73036180	20,5-24,5	Puzzle Form Multi-Crimp Ring 25	10 mm	25	1.2	200
73036201	21,5-25,5	Puzzle Form Multi-Crimp Ring 26	10 mm	26	1.2	200
73036222	22,5-26,5	Puzzle Form Multi-Crimp Ring 27	10 mm	27	1.2	200
73036243	23,5-27,5	Puzzle Form Multi-Crimp Ring 28	10 mm	28	1.2	200
73036264	24,5-28,5	Puzzle Form Multi-Crimp Ring 29	10 mm	29	1.2	200
73036285	25,5-29,5	Puzzle Form Multi-Crimp Ring 30	10 mm	30	1.2	200
73036306	25,5-30,5	Puzzle Form Multi-Crimp Ring 31	10 mm	31	1.2	200
73036327	26,5-31,5	Puzzle Form Multi-Crimp Ring 32	10 mm	32	1.2	200
73036348	27,5-32,5	Puzzle Form Multi-Crimp Ring 33	10 mm	33	1.2	200
73036369	28,5-33,5	Puzzle Form Multi-Crimp Ring 34	10 mm	34	1.2	200
73036380	29,5-34,5	Puzzle Form Multi-Crimp Ring 35	10 mm	35	1.2	200
73036401	30,5-35,5	Puzzle Form Multi-Crimp Ring 36	10 mm	36	1.2	200
73036422	31,5-36,5	Puzzle Form Multi-Crimp Ring 37	10 mm	37	1.2	200
73036443	32,5-37,5	Puzzle Form Multi-Crimp Ring 38	10 mm	38	1.2	200
73036464	33,5-38,5	Puzzle Form Multi-Crimp Ring 39	10 mm	39	1.2	200
73036485	34,5-39,5	Puzzle Form Multi-Crimp Ring 40	10 mm	40	1.2	200
73036501	35,5-40,5	Puzzle Form Multi-Crimp Ring 41	10 mm	41	1.2	200
73036523	36,5-41,5	Puzzle Form Multi-Crimp Ring 42	10 mm	42	1.2	200
