Vis DIN 931 8.8

À traitement antirouille

Vis à tête hexagonale avec filetage partiel. Conçu pour fixer des éléments avec des épaisseurs plus importantes, d’où les longueurs disponibles. C’est une vis de haute qualité en acier 8.8 de qualité. à appliquer avec une clé à douille hexagonale ou toute autre clé qui accepte les boulons hexagonaux.

De quelle finition avez-vous besoin?

Zingué blanc Cr3

À traitement antirouille

FicheTechnique-D9318.pdf

Télécharger |

Matériel:
Acier au carbone haute résistance

Finition:
Huile antirouille

Dureté:
250-320 HV

All references

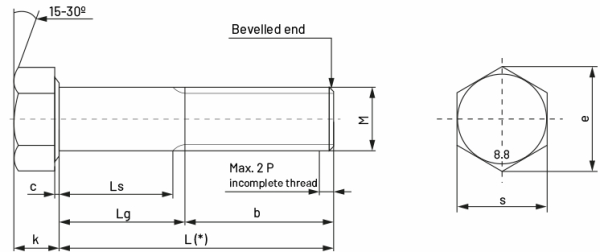

Part number	Taille MxL	b =	c Max.	e Min.	K Max.	S Max.	Ls Min.	Lg Max.	P Pas du filetage	Couple serrage Nm	Boîtage
04220521	8 x 30	22	0.6	14.38	5.45	13	6.75	13	1.25	22	200
04220541	8 x 40	22	0.6	14.38	5.45	13	11.75	18	1.25	22	200
04220561	8 x 50	22	0.6	14.38	5.45	13	21.75	28	1.25	22	200
04220581	8 x 60	22	0.6	14.38	5.45	13	31.75	38	1.25	22	200
04220591	8 x 65	22	0.6	14.38	5.45	13	36.75	43	1.25	22	200
04220601	8 x 70	22	0.6	14.38	5.45	13	41.75	48	1.25	22	200
04220621	8 x 80	22	0.6	14.38	5.45	13	51.75	58	1.25	22	200
04220631	8 x 90	22	0.6	14.38	5.45	13	61.75	68	1.25	22	200
04220641	8 x 100	22	0.6	14.38	5.45	13	71.75	78	1.25	22	200
04220651	8 x 110	22	0.6	14.38	5.45	13	81.75	88	1.25	22	200
04220661	8 x 120	22	0.6	14.38	5.45	13	91.75	98	1.25	22	200
04220671	8 x 130	28	0.6	14.38	5.45	13	95.75	102	1.25	22	200
04220681	8 x 140	28	0.6	14.38	5.45	13	105.75	112	1.25	22	200
04220691	8 x 150	28	0.6	14.38	5.45	13	115.75	122	1.25	22	200
04220731	10 x 40	26	0.6	18.9	6.58	17	6.5	14	1.5	45	100
04220751	10 x 50	26	0.6	18.9	6.58	17	16.5	24	1.5	45	100
04220761	10 x 55	26	0.6	18.9	6.58	17	21.5	29	1.5	45	200
04220771	10 x 60	26	0.6	18.9	6.58	17	26.5	34	1.5	45	200
04220781	10 x 65	26	0.6	18.9	6.58	17	26.5	39	1.5	45	100
04220791	10 x 70	26	0.6	18.9	6.58	17	36.5	44	1.5	45	100
04220811	10 x 80	26	0.6	18.9	6.58	17	46.5	54	1.5	45	100
04220821	10 x 90	26	0.6	18.9	6.58	17	56.5	64	1.5	45	100
04220831	10 x 100	26	0.6	18.9	6.58	17	66.5	74	1.5	45	100
04220841	10 x 110	26	0.6	18.9	6.58	17	76.5	84	1.5	45	100
04220851	10 x 120	26	0.6	18.9	6.58	17	86.5	94	1.5	45	100
04220861	10 x 130	32	0.6	18.9	6.58	17	90.5	98	1.5	45	100
04220871	10 x 140	32	0.6	18.9	6.58	17	100.5	108	1.5	45	100
04220881	10 x 150	32	0.6	18.9	6.58	17	110.5	118	1.5	45	100
04220891	10 x 160	32	0.6	18.9	6.58	17	120.5	128	1.5	45	100
04220901	10 x 170	32	0.6	18.9	6.58	17	130.5	138	1.5	45	100
04220961	12 x 40	30	0.6	21.1	7.68	19	6.25	10	1.75	77	200
04220981	12 x 50	30	0.6	21.1	7.68	19	11.25	20	1.75	77	100
04221001	12 x 60	30	0.6	21.1	7.68	19	21.25	30	1.75	77	100
04221011	12 x 65	30	0.6	21.1	7.68	19	26.25	35	1.75	77	100
04221021	12 x 70	30	0.6	21.1	7.68	19	31.25	40	1.75	77	100
04221031	12 x 75	30	0.6	21.1	7.68	19	36.25	45	1.75	77	100
04221041	12 x 80	30	0.6	21.1	7.68	19	41.25	50	1.75	77	100
04221051	12 x 90	30	0.6	21.1	7.68	19	51.25	60	1.75	77	100
04221061	12 x 100	30	0.6	21.1	7.68	19	61.25	70	1.75	77	100
04221071	12 x 110	30	0.6	21.1	7.68	19	71.25	80	1.75	77	100
04221081	12 x 120	30	0.6	21.1	7.68	19	81.25	90	1.75	77	100
04221091	12 x 130	36	0.6	21.1	7.68	19	82.25	94	1.75	77	100
04221101	12 x 140	36	0.6	21.1	7.68	19	95.25	104	1.75	77	100
04221111	12 x 150	36	0.6	21.1	7.68	19	105.25	114	1.75	77	100
04221121	12 x 160	36	0.6	21.1	7.68	19	115.25	124	1.75	77	100
04221131	12 x 170	36	0.6	21.1	7.68	19	125.25	134	1.75	77	100
04221141	12 x 180	36	0.6	21.1	7.68	19	135.25	144	1.75	77	100
04221201	14 x 50	34	0.6	24.49	8.98	22	6	16	2	125	100
04221221	14 x 60	34	0.6	24.49	8.98	22	16	26	2	125	100
04221231	14 x 65	34	0.6	24.49	8.98	22	16	26	2	125	50
04221241	14 x 70	34	0.6	24.49	8.98	22	26	36	2	125	50
04221261	14 x 80	34	0.6	24.49	8.98	22	36	46	2	125	50
04221271	14 x 90	34	0.6	24.49	8.98	22	46	56	2	125	50
04221281	14 x 100	34	0.6	24.49	8.98	22	56	66	2	125	50
04221291	14 x 110	34	0.6	24.49	8.98	22	66	76	2	125	50
04221301	14 x 120	34	0.6	24.49	8.98	22	76	86	2	125	50
04221311	14 x 130	40	0.6	24.49	8.98	22	80	90	2	125	50
04221321	14 x 140	40	0.6	24.49	8.98	22	90	100	2	125	50
04221331	14 x 150	40	0.6	24.49	8.98	22	100	110	2	125	50
04221341	14 x 160	40	0.6	24.49	8.98	22	110	120	2	125	50
04221351	14 x 170	40	0.6	24.49	8.98	22	120	130	2	125	50
04221361	14 x 180	40	0.6	24.49	8.98	22	130	140	2	125	50
04221441	16 x 50	38	0.8	26.75	10.18	24	6	12	2	190	100
04221451	16 x 55	38	0.8	26.75	10.18	24	7	17	2	190	50
04221461	16 x 60	38	0.8	26.75	10.18	24	12	22	2	190	50
04221471	16 x 65	38	0.8	26.75	10.18	24	17	27	2	190	50
04221481	16 x 70	38	0.8	26.75	10.18	24	22	32	2	190	50
04221491	16 x 75	38	0.8	26.75	10.18	24	27	37	2	190	50
04221501	16 x 80	38	0.8	26.75	10.18	24	32	42	2	190	50
04221511	16 x 90	38	0.8	26.75	10.18	24	42	52	2	190	50
04221521	16 x 100	38	0.8	26.75	10.18	24	52	62	2	190	50
04221531	16 x 110	38	0.8	26.75	10.18	24	62	72	2	190	50
04221541	16 x 120	38	0.8	26.75	10.18	24	72	82	2	190	50
04221551	16 x 130	44	0.8	26.75	10.18	24	76	86	2	190	50
04221561	16 x 140	44	0.8	26.75	10.18	24	86	96	2	190	50
04221571	16 x 150	44	0.8	26.75	10.18	24	96	106	2	190	50
04221581	16 x 160	44	0.8	26.75	10.18	24	106	116	2	190	50
04221591	16 x 170	44	0.8	26.75	10.18	24	116	126	2	190	50
04221601	16 x 180	44	0.8	26.75	10.18	24	126	136	2	190	50
04221611	16 x 190	44	0.8	26.75	10.18	24	136	146	2	190	50
04221621	16 x 200	44	0.8	26.75	10.18	24	146	156	2	190	50
04221701	18 x 60	42	0.8	30.14	11.72	27	5.8	18	2.5	270	50
04221721	18 x 70	42	0.8	30.14	11.72	27	15.5	28	2.5	270	50
04221741	18 x 80	42	0.8	30.14	11.72	27	25.5	38	2.5	270	50
04221751	18 x 90	42	0.8	30.14	11.72	27	35.5	48	2.5	270	50
04221761	18 x 100	42	0.8	30.14	11.72	27	45.5	58	2.5	270	25
04221771	18 x 110	42	0.8	30.14	11.72	27	55.5	68	2.5	270	25
04221781	18 x 120	42	0.8	30.14	11.72	27	65.5	78	2.5	270	25
04221791	18 x 130	48	0.8	30.14	11.72	27	69.5	82	2.5	270	25
04221801	18 x 140	48	0.8	30.14	11.72	27	86	96	2.5	270	25
04221811	18 x 150	48	0.8	30.14	11.72	27	96	106	2.5	270	25
04221821	18 x 160	48	0.8	30.14	11.72	27	106	116	2.5	270	25
04221831	18 x 170	48	0.8	30.14	11.72	27	116	126	2.5	270	25
04221841	18 x 180	48	0.8	30.14	11.72	27	126	136	2.5	270	25
04221931	20 x 60	46	0.8	33.53	12.72	30	5.8	14	2.5	380	25
04221941	20 x 65	46	0.8	33.53	12.72	30	6.5	19	2.5	380	25
04221951	20 x 70	46	0.8	33.53	12.72	30	11.5	24	2.5	380	25
04221961	20 x 75	46	0.8	33.53	12.72	30	16.5	29	2.5	380	25
04221971	20 x 80	46	0.8	33.53	12.72	30	21.5	34	2.5	380	25
04221981	20 x 90	46	0.8	33.53	12.72	30	31.5	44	2.5	380	25
04221991	20 x 100	46	0.8	33.53	12.72	30	41.5	54	2.5	380	25
04222001	20 x 110	46	0.8	33.53	12.72	30	51.5	64	2.5	380	25
04222011	20 x 120	46	0.8	33.53	12.72	30	61.5	74	2.5	380	25
04222021	20 x 130	52	0.8	33.53	12.72	30	65.5	78	2.5	380	25
04222031	20 x 140	52	0.8	33.53	12.72	30	75.5	88	2.5	380	25
04222041	20 x 150	52	0.8	33.53	12.72	30	85.5	98	2.5	380	25
04222051	20 x 160	52	0.8	33.53	12.72	30	95.5	108	2.5	380	25
04222061	20 x 170	52	0.8	33.53	12.72	30	105.5	118	2.5	380	25
04222071	20 x 180	52	0.8	33.53	12.72	30	115.5	128	2.5	380	25
04222081	20 x 190	52	0.8	33.53	12.72	30	125.5	138	2.5	380	25
04222091	20 x 200	52	0.8	33.53	12.72	30	135.5	148	2.5	380	25
04222161	22 x 70	50	0.8	35.72	14.22	32	7.5	20	2.5	515	25
04222181	22 x 80	50	0.8	35.72	14.22	32	17.5	30	2.5	515	10
04222191	22 x 90	50	0.8	35.72	14.22	32	27.5	40	2.5	515	10
04222201	22 x 100	50	0.8	35.72	14.22	32	37.5	50	2.5	515	10
04222211	22 x 110	50	0.8	35.72	14.22	32	47.5	60	2.5	515	10
04222221	22 x 120	50	0.8	35.72	14.22	32	57.5	70	2.5	515	10
04222231	22 x 130	56	0.8	35.72	14.22	32	61.5	74	2.5	515	10
04222241	22 x 140	56	0.8	35.72	14.22	32	71.5	84	2.5	515	10
04222251	22 x 150	56	0.8	35.72	14.22	32	81.5	94	2.5	515	10
04222261	22 x 160	56	0.8	35.72	14.22	32	91.5	104	2.5	515	10
04222281	22 x 180	56	0.8	35.72	14.22	32	111.5	124	2.5	515	10
04222371	24 x 70	54	0.8	39.98	15.22	36	6	16	3	655	25
04222391	24 x 80	54	0.8	39.98	15.22	36	11	26	3	655	25
04222401	24 x 90	54	0.8	39.98	15.22	36	21	36	3	655	20
04222411	24 x 100	54	0.8	39.98	15.22	36	31	46	3	655	20
04222421	24 x 110	54	0.8	39.98	15.22	36	41	56	3	655	20
04222431	24 x120	54	0.8	39.98	15.22	36	51	66	3	655	20
04222441	24 x 130	60	0.8	39.98	15.22	36	55	70	3	655	20
04222451	24 x 140	60	0.8	39.98	15.22	36	65	80	3	655	20
04222461	24 x 150	60	0.8	39.98	15.22	36	75	90	3	655	20
04222471	24 x 160	60	0.8	39.98	15.22	36	85	100	3	655	20
04222481	24 x 170	60	0.8	39.98	15.22	36	95	110	3	655	20
04222491	24 x 180	60	0.8	39.98	15.22	36	105	120	3	655	20
04222501	24 x 190	60	0.8	39.98	15.22	36	115	130	3	655	20
04222511	24 x 200	60	0.8	39.98	15.22	36	125	140	3	655	20

All references

Part number	Taille MxL	b =	c Max.	e Min.	K Max.	S Max.	Ls Min.	Lg Max.	P Pas du filetage	Couple serrage Nm	Boîtage
04220523	8 x 30	22	0.6	14.38	5.45	13	6.75	13	1.25	22	200
04220533	8 X 35	22	0.6	14.38	5.45	13	21.75	28	1.25	22	200
04220543	8 x 40	22	0.6	14.38	5.45	13	11.75	18	1.25	22	200
04220563	8 x 50	22	0.6	14.38	5.45	13	21.75	28	1.25	22	200
04220573	8 x 55	22	0.6	14.38	5.45	13	21.75	28	1.25	22	200
04220583	8 x 60	22	0.6	14.38	5.45	13	31.75	38	1.25	22	200
04220603	8 x 70	22	0.6	14.38	5.45	13	41.75	48	1.25	22	200
04220623	8 x 80	22	0.6	14.38	5.45	13	51.75	58	1.25	22	200
04220633	8 x 90	22	0.6	14.38	5.45	13	61.75	68	1.25	22	200
04220643	8 x 100	22	0.6	14.38	5.45	13	71.75	78	1.25	22	200
04220653	8 x 110	22	0.6	14.38	5.45	13	81.75	88	1.25	22	200
04220663	8 x 120	22	0.6	14.38	5.45	13	91.75	98	1.25	22	200
04220673	8 x 130	28	0.6	14.38	5.45	13	95.75	102	1.25	22	200
04220683	8 x 140	28	0.6	14.38	5.45	13	105.75	112	1.25	22	200
04220693	8 x 150	28	0.6	14.38	5.45	13	115.75	122	1.25	22	200
04220733	10 x 40	26	0.6	18.9	6.58	17	6.5	14	1.5	45	200
04220753	10 x 50	26	0.6	18.9	6.58	17	16.5	24	1.5	45	200
04220773	10 x 60	26	0.6	18.9	6.58	17	26.5	34	1.5	45	200
04220793	10 x 70	26	0.6	18.9	6.58	17	36.5	44	1.5	45	100
04220813	10 x 80	26	0.6	18.9	6.58	17	46.5	54	1.5	45	100
04220823	10 x 90	26	0.6	18.9	6.58	17	56.5	64	1.5	45	100
04220833	10 x 100	26	0.6	18.9	6.58	17	66.5	74	1.5	45	100
04220843	10 x 110	26	0.6	18.9	6.58	17	76.5	84	1.5	45	100
04220853	10 x 120	26	0.6	18.9	6.58	17	86.5	94	1.5	45	100
04220863	10 x 130	32	0.6	18.9	6.58	17	90.5	98	1.5	45	100
04220873	10 x 140	32	0.6	18.9	6.58	17	100.5	108	1.5	45	100
04220883	10 x 150	32	0.6	18.9	6.58	17	110.5	118	1.5	45	100
04220963	12 x 40	30	0.6	21.1	7.68	19	6.25	10	1.75	77	200
04220983	12 x 50	30	0.6	21.1	7.68	19	11.25	20	1.75	77	100
04221003	12 x 60	30	0.6	21.1	7.68	19	21.25	30	1.75	77	100
04221013	12 x 65	30	0.6	21.1	7.68	19	26.25	35	1.75	77	100
04221023	12 x 70	30	0.6	21.1	7.68	19	31.25	40	1.75	77	100
04221033	12 x 75	30	0.6	21.1	7.68	19	36.25	45	1.75	77	100
04221043	12 x 80	30	0.6	21.1	7.68	19	41.25	50	1.75	77	100
04221053	12 x 90	30	0.6	21.1	7.68	19	51.25	60	1.75	77	100
04221063	12 x 100	30	0.6	21.1	7.68	19	61.25	70	1.75	77	100
04221073	12 x 110	30	0.6	21.1	7.68	19	71.25	80	1.75	77	100
04221083	12 x 120	30	0.6	21.1	7.68	19	81.25	90	1.75	77	100
04221093	12 x 130	36	0.6	21.1	7.68	19	82.25	94	1.75	77	100
04221103	12 x 140	36	0.6	21.1	7.68	19	95.25	104	1.75	77	100
04221113	12 x 150	36	0.6	21.1	7.68	19	105.25	114	1.75	77	100
04221203	14 x 50	34	0.6	24.49	8.98	22	6	16	2	125	100
04221223	14 x 60	34	0.6	24.49	8.98	22	16	26	2	125	100
04221243	14 x 70	34	0.6	24.49	8.98	22	26	36	2	125	50
04221263	14 x 80	34	0.6	24.49	8.98	22	36	46	2	125	50
04221273	14 x 90	34	0.6	24.49	8.98	22	46	56	2	125	50
04221283	14 x 100	34	0.6	24.49	8.98	22	56	66	2	125	50
04221293	14 x 110	34	0.6	24.49	8.98	22	66	76	2	125	50
04221303	14 x 120	34	0.6	24.49	8.98	22	76	86	2	125	50
04221313	14 x 130	40	0.6	24.49	8.98	22	80	90	2	125	50
04221323	14 x 140	40	0.6	24.49	8.98	22	90	100	2	125	50
04221333	14 x 150	40	0.6	24.49	8.98	22	100	110	2	125	50
04221443	16 x 50	38	0.8	26.75	10.18	24	6	12	2	190	100
04221463	16 x 60	38	0.8	26.75	10.18	24	12	22	2	190	50
04221483	16 x 70	38	0.8	26.75	10.18	24	22	32	2	190	50
04221503	16 x 80	38	0.8	26.75	10.18	24	32	42	2	190	50
04221513	16 x 90	38	0.8	26.75	10.18	24	42	52	2	190	50
04221523	16 x 100	38	0.8	26.75	10.18	24	52	62	2	190	50
04221533	16 x 110	38	0.8	26.75	10.18	24	62	72	2	190	50
04221543	16 x 120	38	0.8	26.75	10.18	24	72	82	2	190	50
04221553	16 x 130	44	0.8	26.75	10.18	24	76	86	2	190	50
04221563	16 x 140	44	0.8	26.75	10.18	24	86	96	2	190	50
04221573	16 x 150	44	0.8	26.75	10.18	24	96	106	2	190	50
04221703	18 x 60	42	0.8	30.14	11.72	27	5.8	18	2.5	270	50
04221723	18 x 70	42	0.8	30.14	11.72	27	15.5	28	2.5	270	50
04221743	18 x 80	42	0.8	30.14	11.72	27	25.5	38	2.5	270	50
04221753	18 x 90	42	0.8	30.14	11.72	27	35.5	48	2.5	270	50
04221763	18 x 100	42	0.8	30.14	11.72	27	45.5	58	2.5	270	25
04221773	18 x 110	42	0.8	30.14	11.72	27	55.5	68	2.5	270	25
04221783	18 x 120	42	0.8	30.14	11.72	27	65.5	78	2.5	270	25
04221793	18 x 130	48	0.8	30.14	11.72	27	69.5	82	2.5	270	25
04221803	18 x 140	48	0.8	30.14	11.72	27	86	96	2.5	270	25
04221813	18 x 150	48	0.8	30.14	11.72	27	96	106	2.5	270	25
04221933	20 x 60	46	0.8	33.53	12.72	30	5.8	14	2.5	380	50
04221953	20 x 70	46	0.8	33.53	12.72	30	11.5	24	2.5	380	50
04221963	20 x 75	46	0.8	33.53	12.72	30	16.5	29	2.5	380	25
04221973	20 x 80	46	0.8	33.53	12.72	30	21.5	34	2.5	380	25
04221983	20 x 90	46	0.8	33.53	12.72	30	31.5	44	2.5	380	25
04221993	20 x 100	46	0.8	33.53	12.72	30	41.5	54	2.5	380	25
04222003	20 x 110	46	0.8	33.53	12.72	30	51.5	64	2.5	380	25
04222013	20 x 120	46	0.8	33.53	12.72	30	61.5	74	2.5	380	25
04222023	20 x 130	52	0.8	33.53	12.72	30	65.5	78	2.5	380	25
04222033	20 x 140	52	0.8	33.53	12.72	30	75.5	88	2.5	380	25
04222043	20 x 150	52	0.8	33.53	12.72	30	85.5	98	2.5	380	25
04222183	22 x 80	50	0.8	35.72	14.22	32	17.5	30	2.5	515	10
04222193	22 x 90	50	0.8	35.72	14.22	32	27.5	40	2.5	515	10
04222203	22 x 100	50	0.8	35.72	14.22	32	37.5	50	2.5	515	10
04222213	22 x 110	50	0.8	35.72	14.22	32	47.5	60	2.5	515	10
04222223	22 x 120	50	0.8	35.72	14.22	32	57.5	70	2.5	515	10
04222233	22 x 130	56	0.8	35.72	14.22	32	61.5	74	2.5	515	10
04222243	22 x 140	56	0.8	35.72	14.22	32	71.5	84	2.5	515	10
04222273	24 x 70	54	0.8	39.98	15.22	36	6	16	3	655	25
04222393	24 x 80	54	0.8	39.98	15.22	36	11	26	3	655	25
04222403	24 x 90	54	0.8	39.98	15.22	36	21	36	3	655	20
04222413	24 x 100	54	0.8	39.98	15.22	36	31	46	3	655	20
04222423	24 x 110	54	0.8	39.98	15.22	36	41	56	3	655	20
04222433	24 x120	54	0.8	39.98	15.22	36	51	66	3	655	20
04222443	24 x 130	60	0.8	39.98	15.22	36	55	70	3	655	20
04222454	24 x 140	60	0.8	39.98	15.22	36	65	80	3	655	20
04222463	24 x 150	60	0.8	39.98	15.22	36	75	90	3	655	20

D'autres produits qui pourraient vous intéresser

Vis DIN 912

Vis fraisée DIN 7991-10.9

Vis DIN 933 8.8

Vis DIN 931 8.8

À traitement antirouille

Technical info for combination: À traitement antirouille

All References for combination: À traitement antirouille
