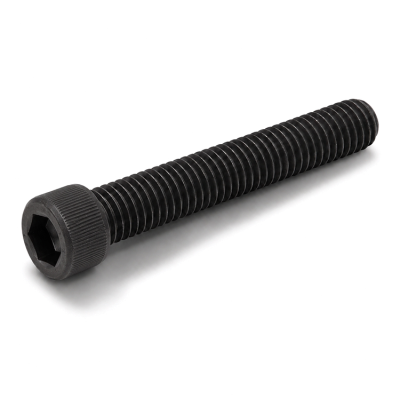

Tornillo DIN 912

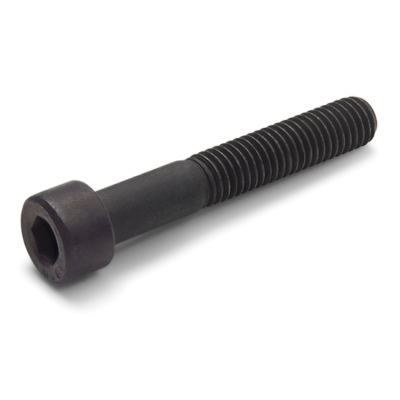

Acero 8.8 - Aceitado antioxidante
Tornillo con cabeza cilíndrica Allen. Se trata de un tornillo de alta calidad fabricado con acero calidad 8.8.

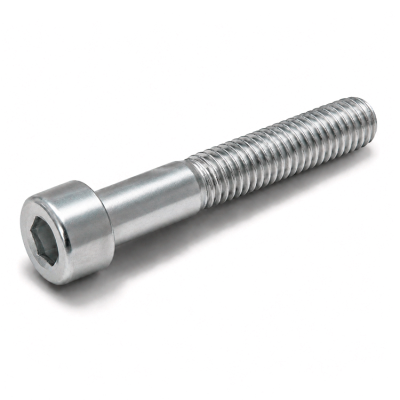

Acero 8.8 - Cincado blanco Cr3
Tornillo con cabeza cilíndrica Allen. Se trata de un tornillo de alta calidad fabricado con acero calidad 8.8 y con un acabado cincado blanco.
Acero 12.9
Tornillo con cabeza cilíndrica Allen. Se trata de un tornillo de alta calidad y soporta altos pares de apriete. Está fabricado con acero de calidad 12.9.
¿Qué material necesitas?
¿Qué acabado necesitas?
Technical info for combination: Acero 8.8 - Aceitado antioxidante
FichaComercial-D9128.pdf
Material:
Acero al carbono de alta resistencia
Acabado:
Aceitado antioxidante
Dureza:
250-320 HV
Technical info for combination: Acero 8.8 - Cincado blanco Cr3
FichaComercial-D9128ZB.pdf
Material:
Acero al carbono de alta resistencia
Acabado:
Cincado
Dureza:
250-320 HV

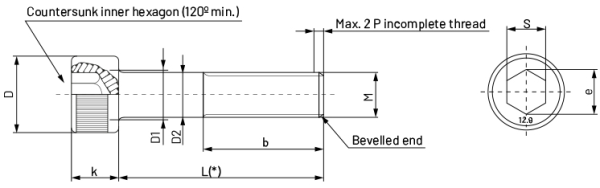

Technical info for combination: Acero 12.9
FichaComercial-D912K.pdf
Material:
Acero al carbono de alta resistencia
Acabado:
Aceitado antioxidante
Dureza:
385-435 HV
All References for combination: Acero 8.8 - Aceitado antioxidante
Todas las referencias

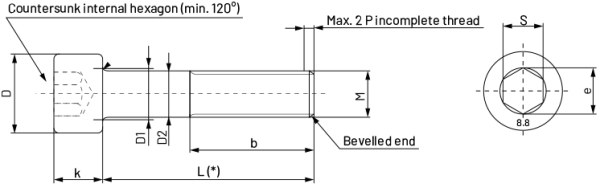

| Referencia | Medida M x L | Ø D Máx. | Ø D1 Máx. | Ø D2 Mín. | K Máx. | b = | e Mín. | S Nominal | P Paso rosca | t Mín. | r1 Mín. | r2 Máx. | Par apriete N/m | Envase |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 04200141 | 4 x 45 | 7 | 4.7 | 3.82 | 4 | 20 | 3.44 | 3 | 0.7 | 2 | 0.2 | 0.4 | 2.7 | 500 |
| 04200151 | 4 x 50 | 7 | 4.7 | 3.82 | 4 | 20 | 3.44 | 3 | 0.7 | 2 | 0.2 | 0.4 | 2.7 | 500 |
| 04200211 | 5 x 8 | 8.5 | 5.7 | * | 5 | * | 4.58 | 4 | 0.8 | 2.5 | 0.2 | 0.5 | 5.4 | 500 |
| 04200221 | 5 x 10 | 8.5 | 5.7 | * | 5 | * | 4.58 | 4 | 0.8 | 2.5 | 0.2 | 0.5 | 5.4 | 500 |
| 04200231 | 5 x 12 | 8.5 | 5.7 | * | 5 | * | 4.58 | 4 | 0.8 | 2.5 | 0.2 | 0.5 | 5.4 | 500 |
| 04200241 | 5 x 14 | 8.5 | 5.7 | * | 5 | * | 4.58 | 4 | 0.8 | 2.5 | 0.2 | 0.5 | 5.4 | 500 |
| 04200251 | 5 x 16 | 8.5 | 5.7 | * | 5 | * | 4.58 | 4 | 0.8 | 2.5 | 0.2 | 0.5 | 5.4 | 500 |
| 04200261 | 5 x 18 | 8.5 | 5.7 | * | 5 | * | 4.58 | 4 | 0.8 | 2.5 | 0.2 | 0.5 | 5.4 | 500 |
| 01131079 | 3 x 6 | 5.5 | 3.6 | * | 3 | * | 2.9 | 2.5 | 0.5 | 1.3 | 0.1 | 0.2 | 1.4 | 500 |
| 01131087 | 3 x 8 | 5.5 | 3.6 | * | 3 | * | 2.9 | 2.5 | 0.5 | 1.3 | 0.1 | 0.2 | 1.4 | 500 |
| 01131095 | 3 x 10 | 5.5 | 3.6 | * | 3 | * | 2.9 | 2.5 | 0.5 | 1.3 | 0.1 | 0.2 | 1.4 | 500 |
| 01131108 | 3 x 12 | 5.5 | 3.6 | * | 3 | * | 2.9 | 2.5 | 0.5 | 1.3 | 0.1 | 0.2 | 1.4 | 500 |
| 01131394 | 3 x 14 | 5.5 | 3.6 | * | 3 | * | 2.9 | 2.5 | 0.5 | 1.3 | 0.1 | 0.2 | 1.4 | 500 |
| 01131407 | 3 x 16 | 5.5 | 3.6 | * | 3 | * | 2.9 | 2.5 | 0.5 | 1.3 | 0.1 | 0.2 | 1.4 | 500 |
| 01131132 | 3 x 20 | 5.5 | 3.6 | 2.82 | 3 | 12 | 2.9 | 2.5 | 0.5 | 1.3 | 0.1 | 0.2 | 1.4 | 500 |
| 01131159 | 3 x 25 | 5.5 | 3.6 | 2.82 | 3 | 12 | 2.9 | 2.5 | 0.5 | 1.3 | 0.1 | 0.2 | 1.4 | 500 |
| 01131167 | 3 x 30 | 5.5 | 3.6 | 2.82 | 3 | 12 | 2.9 | 2.5 | 0.5 | 1.3 | 0.1 | 0.2 | 1.4 | 500 |
| 01131175 | 3 x 35 | 5.5 | 3.6 | 2.82 | 3 | 12 | 2.9 | 2.5 | 0.5 | 1.3 | 0.1 | 0.2 | 1.4 | 500 |
| 04200011 | 4 x 6 | 7 | 4.7 | * | 4 | * | 3.44 | 3 | 0.7 | 2 | 0.2 | 0.4 | 2.7 | 500 |
| 04200021 | 4 x 8 | 7 | 4.7 | * | 4 | * | 3.44 | 3 | 0.7 | 2 | 0.2 | 0.4 | 2.7 | 500 |
| 04200031 | 4 x 10 | 7 | 4.7 | * | 4 | * | 3.44 | 3 | 0.7 | 2 | 0.2 | 0.4 | 2.7 | 500 |
| 04200041 | 4 x 12 | 7 | 4.7 | * | 4 | * | 3.44 | 3 | 0.7 | 2 | 0.2 | 0.4 | 2.7 | 500 |
| 04200051 | 4 x 14 | 7 | 4.7 | * | 4 | * | 3.44 | 3 | 0.7 | 2 | 0.2 | 0.4 | 2.7 | 500 |
| 04200061 | 4 x 16 | 7 | 4.7 | * | 4 | * | 3.44 | 3 | 0.7 | 2 | 0.2 | 0.4 | 2.7 | 500 |
| 04200071 | 4 x 18 | 7 | 4.7 | * | 4 | * | 3.44 | 3 | 0.7 | 2 | 0.2 | 0.4 | 2.7 | 500 |
| 04200081 | 4 x 20 | 7 | 4.7 | * | 4 | * | 3.44 | 3 | 0.7 | 2 | 0.2 | 0.4 | 2.7 | 500 |
| 04200101 | 4 x 25 | 7 | 4.7 | * | 4 | * | 3.44 | 3 | 0.7 | 2 | 0.2 | 0.4 | 2.7 | 500 |
| 04200111 | 4 x 30 | 7 | 4.7 | 3.82 | 4 | 20 | 3.44 | 3 | 0.7 | 2 | 0.2 | 0.4 | 2.7 | 500 |
| 04200121 | 4 x 35 | 7 | 4.7 | 3.82 | 4 | 20 | 3.44 | 3 | 0.7 | 2 | 0.2 | 0.4 | 2.7 | 500 |
| 04200131 | 4 x 40 | 7 | 4.7 | 3.82 | 4 | 20 | 3.44 | 3 | 0.7 | 2 | 0.2 | 0.4 | 2.7 | 500 |
| 04200271 | 5 x 20 | 8.5 | 5.7 | * | 5 | * | 4.58 | 4 | 0.8 | 2.5 | 0.2 | 0.5 | 5.4 | 500 |
| 04200291 | 5 x 25 | 8.5 | 5.7 | * | 5 | * | 4.58 | 4 | 0.8 | 2.5 | 0.2 | 0.5 | 5.4 | 500 |
| 04200301 | 5 x 30 | 8.5 | 5.7 | 4.82 | 5 | 22 | 4.58 | 4 | 0.8 | 2.5 | 0.2 | 0.5 | 5.4 | 500 |
| 04200311 | 5 x 35 | 8.5 | 5.7 | 4.82 | 5 | 22 | 4.58 | 4 | 0.8 | 2.5 | 0.2 | 0.5 | 5.4 | 500 |
| 04200321 | 5 x 40 | 8.5 | 5.7 | 4.82 | 5 | 22 | 4.58 | 4 | 0.8 | 2.5 | 0.2 | 0.5 | 5.4 | 500 |
| 04200331 | 5 x 45 | 8.5 | 5.7 | 4.82 | 5 | 22 | 4.58 | 4 | 0.8 | 2.5 | 0.2 | 0.5 | 5.4 | 500 |
| 04200341 | 5 x 50 | 8.5 | 5.7 | 4.82 | 5 | 22 | 4.58 | 4 | 0.8 | 2.5 | 0.2 | 0.5 | 5.4 | 500 |
| 04200351 | 5 x 55 | 8.5 | 5.7 | 4.82 | 5 | 22 | 4.58 | 4 | 0.8 | 2.5 | 0.2 | 0.5 | 5.4 | 500 |
| 04200361 | 5 x 60 | 8.5 | 5.7 | 4.82 | 5 | 22 | 4.58 | 4 | 0.8 | 2.5 | 0.2 | 0.5 | 5.4 | 500 |
| 04200371 | 5 x 65 | 8.5 | 5.7 | 4.82 | 5 | 22 | 4.58 | 4 | 0.8 | 2.5 | 0.2 | 0.5 | 5.4 | 500 |
| 04200451 | 6 x 8 | 10 | 6.8 | * | 6 | * | 5.72 | 5 | 1 | 3 | 0.25 | 0.6 | 9.3 | 200 |
| 04200461 | 6 x 10 | 10 | 6.8 | * | 6 | * | 5.72 | 5 | 1 | 3 | 0.25 | 0.6 | 9.3 | 200 |
| 04200471 | 6 x 12 | 10 | 6.8 | * | 6 | * | 5.72 | 5 | 1 | 3 | 0.25 | 0.6 | 9.3 | 200 |
| 04200481 | 6 x 14 | 10 | 6.8 | * | 6 | * | 5.72 | 5 | 1 | 3 | 0.25 | 0.6 | 9.3 | 200 |
| 04200491 | 6 x 16 | 10 | 6.8 | * | 6 | * | 5.72 | 5 | 1 | 3 | 0.25 | 0.6 | 9.3 | 200 |
| 04200501 | 6 x 18 | 10 | 6.8 | * | 6 | * | 5.72 | 5 | 1 | 3 | 0.25 | 0.6 | 9.3 | 200 |
| 04200511 | 6 x 20 | 10 | 6.8 | * | 6 | * | 5.72 | 5 | 1 | 3 | 0.25 | 0.6 | 9.3 | 200 |
| 04200531 | 6 x 25 | 10 | 6.8 | * | 6 | * | 5.72 | 5 | 1 | 3 | 0.25 | 0.6 | 9.3 | 200 |
| 04200541 | 6 x 30 | 10 | 6.8 | * | 6 | * | 5.72 | 5 | 1 | 3 | 0.25 | 0.6 | 9.3 | 200 |
| 04200551 | 6 x 35 | 10 | 6.8 | 5.82 | 6 | 24 | 5.72 | 5 | 1 | 3 | 0.25 | 0.6 | 9.3 | 200 |
| 04200561 | 6 x 40 | 10 | 6.8 | 5.82 | 6 | 24 | 5.72 | 5 | 1 | 3 | 0.25 | 0.6 | 9.3 | 200 |
| 04200571 | 6 x 45 | 10 | 6.8 | 5.82 | 6 | 24 | 5.72 | 5 | 1 | 3 | 0.25 | 0.6 | 9.3 | 200 |
| 04200581 | 6 x 50 | 10 | 6.8 | 5.82 | 6 | 24 | 5.72 | 5 | 1 | 3 | 0.25 | 0.6 | 9.3 | 200 |
| 04200591 | 6 x 55 | 10 | 6.8 | 5.82 | 6 | 24 | 5.72 | 5 | 1 | 3 | 0.25 | 0.6 | 9.3 | 200 |
| 04200601 | 6 x 60 | 10 | 6.8 | 5.82 | 6 | 24 | 5.72 | 5 | 1 | 3 | 0.25 | 0.6 | 9.3 | 200 |
| 04200611 | 6 x 65 | 10 | 6.8 | 5.82 | 6 | 24 | 5.72 | 5 | 1 | 3 | 0.25 | 0.6 | 9.3 | 200 |
| 04200621 | 6 x 70 | 10 | 6.8 | 5.82 | 6 | 24 | 5.72 | 5 | 1 | 3 | 0.25 | 0.6 | 9.3 | 200 |
| 04200641 | 6 x 80 | 10 | 6.8 | 5.82 | 6 | 24 | 5.72 | 5 | 1 | 3 | 0.25 | 0.6 | 9.3 | 200 |
| 04200651 | 6 x 90 | 10 | 6.8 | 5.82 | 6 | 24 | 5.72 | 5 | 1 | 3 | 0.25 | 0.6 | 9.3 | 200 |
| 04200661 | 6 x 100 | 10 | 6.8 | 5.82 | 6 | 24 | 5.72 | 5 | 1 | 3 | 0.25 | 0.6 | 9.3 | 200 |
| 04200691 | 8 x 10 | 13 | 9.2 | * | 8 | * | 6.86 | 6 | 1.25 | 4 | 0.4 | 0.8 | 22 | 200 |
| 04200701 | 8 x 12 | 13 | 9.2 | * | 8 | * | 6.86 | 6 | 1.25 | 4 | 0.4 | 0.8 | 22 | 200 |
| 04200711 | 8 x 14 | 13 | 9.2 | * | 8 | * | 6.86 | 6 | 1.25 | 4 | 0.4 | 0.8 | 22 | 200 |
| 04200721 | 8 x 16 | 13 | 9.2 | * | 8 | * | 6.86 | 6 | 1.25 | 4 | 0.4 | 0.8 | 22 | 200 |
| 04200731 | 8 x 18 | 13 | 9.2 | * | 8 | * | 6.86 | 6 | 1.25 | 4 | 0.4 | 0.8 | 22 | 200 |
| 04200741 | 8 x 20 | 13 | 9.2 | * | 8 | * | 6.86 | 6 | 1.25 | 4 | 0.4 | 0.8 | 22 | 200 |
| 04200751 | 8 x 22 | 13 | 9.2 | * | 8 | * | 6.86 | 6 | 1.25 | 4 | 0.4 | 0.8 | 22 | 200 |
| 04200761 | 8 x 25 | 13 | 9.2 | * | 8 | * | 6.86 | 6 | 1.25 | 4 | 0.4 | 0.8 | 22 | 200 |
| 04200771 | 8 x 30 | 13 | 9.2 | * | 8 | * | 6.86 | 6 | 1.25 | 4 | 0.4 | 0.8 | 22 | 200 |
| 04200781 | 8 x 35 | 13 | 9.2 | * | 8 | * | 6.86 | 6 | 1.25 | 4 | 0.4 | 0.8 | 22 | 200 |
| 04200791 | 8 x 40 | 13 | 9.2 | 7.78 | 8 | 28 | 6.86 | 6 | 1.25 | 4 | 0.4 | 0.8 | 22 | 200 |
| 04200801 | 8 x 45 | 13 | 9.2 | 7.78 | 8 | 28 | 6.86 | 6 | 1.25 | 4 | 0.4 | 0.8 | 22 | 200 |
| 04200811 | 8 x 50 | 13 | 9.2 | 7.78 | 8 | 28 | 6.86 | 6 | 1.25 | 4 | 0.4 | 0.8 | 22 | 200 |
| 04200821 | 8 x 55 | 13 | 9.2 | 7.78 | 8 | 28 | 6.86 | 6 | 1.25 | 4 | 0.4 | 0.8 | 22 | 200 |
| 04200831 | 8 x 60 | 13 | 9.2 | 7.78 | 8 | 28 | 6.86 | 6 | 1.25 | 4 | 0.4 | 0.8 | 22 | 200 |
| 04200841 | 8 x 65 | 13 | 9.2 | 7.78 | 8 | 28 | 6.86 | 6 | 1.25 | 4 | 0.4 | 0.8 | 22 | 200 |
| 04200851 | 8 x 70 | 13 | 9.2 | 7.78 | 8 | 28 | 6.86 | 6 | 1.25 | 4 | 0.4 | 0.8 | 22 | 200 |
| 04200871 | 8 x 80 | 13 | 9.2 | 7.78 | 8 | 28 | 6.86 | 6 | 1.25 | 4 | 0.4 | 0.8 | 22 | 200 |
| 04200881 | 8 x 90 | 13 | 9.2 | 7.78 | 8 | 28 | 6.86 | 6 | 1.25 | 4 | 0.4 | 0.8 | 22 | 200 |
| 04200891 | 8 x 100 | 13 | 9.2 | 7.78 | 8 | 28 | 6.86 | 6 | 1.25 | 4 | 0.4 | 0.8 | 22 | 200 |
| 04200901 | 8 x 110 | 13 | 9.2 | 7.78 | 8 | 28 | 6.86 | 6 | 1.25 | 4 | 0.4 | 0.8 | 22 | 200 |
| 04200911 | 8 x 120 | 13 | 9.2 | 7.78 | 8 | 28 | 6.86 | 6 | 1.25 | 4 | 0.4 | 0.8 | 22 | 200 |
| 04200921 | 8 x 130 | 13 | 9.2 | 7.78 | 8 | 28 | 6.86 | 6 | 1.25 | 4 | 0.4 | 0.8 | 22 | 200 |
| 04200931 | 8 x 140 | 13 | 9.2 | 7.78 | 8 | 28 | 6.86 | 6 | 1.25 | 4 | 0.4 | 0.8 | 22 | 200 |
| 04200941 | 8 x 150 | 13 | 9.2 | 7.78 | 8 | 28 | 6.86 | 6 | 1.25 | 4 | 0.4 | 0.8 | 22 | 200 |
| 04200971 | 10 x 16 | 16 | 11.2 | * | 10 | * | 9.15 | 8 | 1.5 | 5 | 0.4 | 1 | 45 | 200 |
| 04200981 | 10 x 18 | 16 | 11.2 | * | 10 | * | 9.15 | 8 | 1.5 | 5 | 0.4 | 1 | 45 | 200 |
| 04200991 | 10 x 20 | 16 | 11.2 | * | 10 | * | 9.15 | 8 | 1.5 | 5 | 0.4 | 1 | 45 | 200 |
| 04201011 | 10 x 25 | 16 | 11.2 | * | 10 | * | 9.15 | 8 | 1.5 | 5 | 0.4 | 1 | 45 | 200 |
| 04201021 | 10 x 30 | 16 | 11.2 | * | 10 | * | 9.15 | 8 | 1.5 | 5 | 0.4 | 1 | 45 | 200 |
| 04201031 | 10 x 35 | 16 | 11.2 | * | 10 | * | 9.15 | 8 | 1.5 | 5 | 0.4 | 1 | 45 | 200 |
| 04201041 | 10 x 40 | 16 | 11.2 | * | 10 | * | 9.15 | 8 | 1.5 | 5 | 0.4 | 1 | 45 | 200 |
| 04201051 | 10 x 45 | 16 | 11.2 | 9.78 | 10 | 32 | 9.15 | 8 | 1.5 | 5 | 0.4 | 1 | 45 | 200 |
| 04201061 | 10 x 50 | 16 | 11.2 | 9.78 | 10 | 32 | 9.15 | 8 | 1.5 | 5 | 0.4 | 1 | 45 | 200 |
| 04201071 | 10 x 55 | 16 | 11.2 | 9.78 | 10 | 32 | 9.15 | 8 | 1.5 | 5 | 0.4 | 1 | 45 | 200 |
| 04201081 | 10 x 60 | 16 | 11.2 | 9.78 | 10 | 32 | 9.15 | 8 | 1.5 | 5 | 0.4 | 1 | 45 | 200 |
| 04201091 | 10 x 65 | 16 | 11.2 | 9.78 | 10 | 32 | 9.15 | 8 | 1.5 | 5 | 0.4 | 1 | 45 | 100 |
| 04201101 | 10 x 70 | 16 | 11.2 | 9.78 | 10 | 32 | 9.15 | 8 | 1.5 | 5 | 0.4 | 1 | 45 | 100 |
| 04201121 | 10 x 80 | 16 | 11.2 | 9.78 | 10 | 32 | 9.15 | 8 | 1.5 | 5 | 0.4 | 1 | 45 | 100 |
| 04201131 | 10 x 90 | 16 | 11.2 | 9.78 | 10 | 32 | 9.15 | 8 | 1.5 | 5 | 0.4 | 1 | 45 | 100 |
| 04201141 | 10 x 100 | 16 | 11.2 | 9.78 | 10 | 32 | 9.15 | 8 | 1.5 | 5 | 0.4 | 1 | 45 | 100 |
| 04201151 | 10 x 110 | 16 | 11.2 | 9.78 | 10 | 32 | 9.15 | 8 | 1.5 | 5 | 0.4 | 1 | 45 | 100 |
| 04201161 | 10 x 120 | 16 | 11.2 | 9.78 | 10 | 32 | 9.15 | 8 | 1.5 | 5 | 0.4 | 1 | 45 | 100 |
| 04201171 | 10 x 130 | 16 | 11.2 | 9.78 | 10 | 32 | 9.15 | 8 | 1.5 | 5 | 0.4 | 1 | 45 | 100 |
| 04201181 | 10 x 140 | 16 | 11.2 | 9.78 | 10 | 32 | 9.15 | 8 | 1.5 | 5 | 0.4 | 1 | 45 | 100 |
| 04201191 | 10 x 150 | 16 | 11.2 | 9.78 | 10 | 32 | 9.15 | 8 | 1.5 | 5 | 0.4 | 1 | 45 | 100 |
| 04201281 | 12 x 20 | 18 | 13.7 | * | 12 | * | 11.43 | 10 | 1.75 | 6 | 0.6 | 1.2 | 77 | 200 |
| 04201301 | 12 x 25 | 18 | 13.7 | * | 12 | * | 11.43 | 10 | 1.75 | 6 | 0.6 | 1.2 | 77 | 200 |
| 04201311 | 12 x 30 | 18 | 13.7 | * | 12 | * | 11.43 | 10 | 1.75 | 6 | 0.6 | 1.2 | 77 | 200 |
| 04201321 | 12 x 35 | 18 | 13.7 | * | 12 | * | 11.43 | 10 | 1.75 | 6 | 0.6 | 1.2 | 77 | 200 |
| 04201331 | 12 x 40 | 18 | 13.7 | * | 12 | * | 11.43 | 10 | 1.75 | 6 | 0.6 | 1.2 | 77 | 200 |
| 04201341 | 12 x 45 | 18 | 13.7 | * | 12 | * | 11.43 | 10 | 1.75 | 6 | 0.6 | 1.2 | 77 | 100 |
| 04201351 | 12 x 50 | 18 | 13.7 | * | 12 | * | 11.43 | 10 | 1.75 | 6 | 0.6 | 1.2 | 77 | 100 |
| 04201361 | 12 x 55 | 18 | 13.7 | 11.73 | 12 | 36 | 11.43 | 10 | 1.75 | 6 | 0.6 | 1.2 | 77 | 100 |
| 04201371 | 12 x 60 | 18 | 13.7 | 11.73 | 12 | 36 | 11.43 | 10 | 1.75 | 6 | 0.6 | 1.2 | 77 | 100 |
| 04201381 | 12 x 65 | 18 | 13.7 | 11.73 | 12 | 36 | 11.43 | 10 | 1.75 | 6 | 0.6 | 1.2 | 77 | 100 |
| 04201391 | 12 x 70 | 18 | 13.7 | 11.73 | 12 | 36 | 11.43 | 10 | 1.75 | 6 | 0.6 | 1.2 | 77 | 100 |
| 04201411 | 12 x 80 | 18 | 13.7 | 11.73 | 12 | 36 | 11.43 | 10 | 1.75 | 6 | 0.6 | 1.2 | 77 | 100 |
| 04201421 | 12 x 90 | 18 | 13.7 | 11.73 | 12 | 36 | 11.43 | 10 | 1.75 | 6 | 0.6 | 1.2 | 77 | 100 |
| 04201431 | 12 x 100 | 18 | 13.7 | 11.73 | 12 | 36 | 11.43 | 10 | 1.75 | 6 | 0.6 | 1.2 | 77 | 100 |
| 04201441 | 12 x 110 | 18 | 13.7 | 11.73 | 12 | 36 | 11.43 | 10 | 1.75 | 6 | 0.6 | 1.2 | 77 | 100 |
| 04201451 | 12 x 120 | 18 | 13.7 | 11.73 | 12 | 36 | 11.43 | 10 | 1.75 | 6 | 0.6 | 1.2 | 77 | 100 |
| 04201461 | 12 x 130 | 18 | 13.7 | 11.73 | 12 | 36 | 11.43 | 10 | 1.75 | 6 | 0.6 | 1.2 | 77 | 100 |
| 04201471 | 12 x 140 | 18 | 13.7 | 11.73 | 12 | 36 | 11.43 | 10 | 1.75 | 6 | 0.6 | 1.2 | 77 | 100 |
| 04201481 | 12 x 150 | 18 | 13.7 | 11.73 | 12 | 36 | 11.43 | 10 | 1.75 | 6 | 0.6 | 1.2 | 77 | 100 |
| 04201581 | 14 x 30 | 21 | 15.7 | * | 14 | * | 13.72 | 12 | 2 | 7 | 0.6 | 1.4 | 125 | 200 |
| 04201601 | 14 x 40 | 21 | 15.7 | * | 14 | * | 13.72 | 12 | 2 | 7 | 0.6 | 1.4 | 125 | 100 |
| 04201621 | 14 x 50 | 21 | 15.7 | * | 14 | * | 13.72 | 12 | 2 | 7 | 0.6 | 1.4 | 125 | 100 |
| 04201641 | 14 x 60 | 21 | 15.7 | 13.73 | 14 | 40 | 13.72 | 12 | 2 | 7 | 0.6 | 1.4 | 125 | 100 |
| 04201661 | 14 x 70 | 21 | 15.7 | 13.73 | 14 | 40 | 13.72 | 12 | 2 | 7 | 0.6 | 1.4 | 125 | 50 |
| 04201681 | 14 x 80 | 21 | 15.7 | 13.73 | 14 | 40 | 13.72 | 12 | 2 | 7 | 0.6 | 1.4 | 125 | 50 |
| 04201691 | 14 x 90 | 21 | 15.7 | 13.73 | 14 | 40 | 13.72 | 12 | 2 | 7 | 0.6 | 1.4 | 125 | 50 |
| 04201701 | 14 x 100 | 21 | 15.7 | 13.73 | 14 | 40 | 13.72 | 12 | 2 | 7 | 0.6 | 1.4 | 125 | 50 |
| 04201711 | 14 x 110 | 21 | 15.7 | 13.73 | 14 | 40 | 13.72 | 12 | 2 | 7 | 0.6 | 1.4 | 125 | 50 |
| 04201721 | 14 x 120 | 21 | 15.7 | 13.73 | 14 | 40 | 13.72 | 12 | 2 | 7 | 0.6 | 1.4 | 125 | 50 |
| 04201731 | 14 x 130 | 21 | 15.7 | 13.73 | 14 | 40 | 13.72 | 12 | 2 | 7 | 0.6 | 1.4 | 125 | 50 |
| 04201741 | 14 x 140 | 21 | 15.7 | 13.73 | 14 | 40 | 13.72 | 12 | 2 | 7 | 0.6 | 1.4 | 125 | 50 |
| 04201751 | 14 x 150 | 21 | 15.7 | 13.73 | 14 | 40 | 13.72 | 12 | 2 | 7 | 0.6 | 1.4 | 125 | 50 |
| 04201851 | 16 x 30 | 24 | 17.7 | * | 16 | * | 16 | 14 | 2 | 8 | 0.6 | 1.6 | 190 | 100 |
| 04201871 | 16 x 40 | 24 | 17.7 | * | 16 | * | 16 | 14 | 2 | 8 | 0.6 | 1.6 | 190 | 100 |
| 04201891 | 16 x 50 | 24 | 17.7 | * | 16 | * | 16 | 14 | 2 | 8 | 0.6 | 1.6 | 190 | 100 |
| 04201911 | 16 x 60 | 24 | 17.7 | * | 16 | * | 16 | 14 | 2 | 8 | 0.6 | 1.6 | 190 | 50 |
| 04201931 | 16 x 70 | 24 | 17.7 | 15.73 | 16 | 44 | 16 | 14 | 2 | 8 | 0.6 | 1.6 | 190 | 50 |
| 04201951 | 16 x 80 | 24 | 17.7 | 15.73 | 16 | 44 | 16 | 14 | 2 | 8 | 0.6 | 1.6 | 190 | 50 |
| 04201961 | 16 x 90 | 24 | 17.7 | 15.73 | 16 | 44 | 16 | 14 | 2 | 8 | 0.6 | 1.6 | 190 | 50 |
| 04201971 | 16 x 100 | 24 | 17.7 | 15.73 | 16 | 44 | 16 | 14 | 2 | 8 | 0.6 | 1.6 | 190 | 50 |
| 04201981 | 16 x 110 | 24 | 17.7 | 15.73 | 16 | 44 | 16 | 14 | 2 | 8 | 0.6 | 1.6 | 190 | 50 |
| 04201991 | 16 x 120 | 24 | 17.7 | 15.73 | 16 | 44 | 16 | 14 | 2 | 8 | 0.6 | 1.6 | 190 | 50 |
| 04202001 | 16 x 130 | 24 | 17.7 | 15.73 | 16 | 44 | 16 | 14 | 2 | 8 | 0.6 | 1.6 | 190 | 50 |
| 04202011 | 16 x 140 | 24 | 17.7 | 15.73 | 16 | 44 | 16 | 14 | 2 | 8 | 0.6 | 1.6 | 190 | 50 |
| 04202021 | 16 x 150 | 24 | 17.7 | 15.73 | 16 | 44 | 16 | 14 | 2 | 8 | 0.6 | 1.6 | 190 | 50 |
| 04202131 | 18 x 40 | 27 | 20.2 | * | 18 | * | 16 | 14 | 2.5 | 9 | 0.6 | 1.8 | 270 | 50 |
| 04202151 | 18 x 50 | 27 | 20.2 | * | 18 | * | 16 | 14 | 2.5 | 9 | 0.6 | 1.8 | 270 | 50 |
| 04202171 | 18 x 60 | 27 | 20.2 | * | 18 | * | 16 | 14 | 2.5 | 9 | 0.6 | 1.8 | 270 | 50 |
| 04202191 | 18 x 70 | 27 | 20.2 | 17.73 | 18 | 48 | 16 | 14 | 2.5 | 9 | 0.6 | 1.8 | 270 | 50 |
| 04202211 | 18 x 80 | 27 | 20.2 | 17.73 | 18 | 48 | 16 | 14 | 2.5 | 9 | 0.6 | 1.8 | 270 | 50 |
| 04202221 | 18 x 90 | 27 | 20.2 | 17.73 | 18 | 48 | 16 | 14 | 2.5 | 9 | 0.6 | 1.8 | 270 | 50 |
| 04202231 | 18 x 100 | 27 | 20.2 | 17.73 | 18 | 48 | 16 | 14 | 2.5 | 9 | 0.6 | 1.8 | 270 | 50 |
| 04202241 | 18 x 110 | 27 | 20.2 | 17.73 | 18 | 48 | 16 | 14 | 2.5 | 9 | 0.6 | 1.8 | 270 | 50 |
| 04202251 | 18 x 120 | 27 | 20.2 | 17.73 | 18 | 48 | 16 | 14 | 2.5 | 9 | 0.6 | 1.8 | 270 | 50 |
| 04202261 | 18 x 130 | 27 | 20.2 | 17.73 | 18 | 48 | 16 | 14 | 2.5 | 9 | 0.6 | 1.8 | 270 | 50 |
| 04202271 | 18 x 140 | 27 | 20.2 | 17.73 | 18 | 48 | 16 | 14 | 2.5 | 9 | 0.6 | 1.8 | 270 | 50 |
| 04202281 | 18 x 150 | 27 | 20.2 | 17.73 | 18 | 48 | 16 | 14 | 2.5 | 9 | 0.6 | 1.8 | 270 | 50 |
| 04202391 | 20 x 40 | 30 | 22.4 | * | 20 | * | 19.44 | 17 | 2.5 | 10 | 0.8 | 2 | 380 | 50 |
| 04202411 | 20 x 50 | 30 | 22.4 | * | 20 | * | 19.44 | 17 | 2.5 | 10 | 0.8 | 2 | 380 | 50 |
| 04202431 | 20 x 60 | 30 | 22.4 | * | 20 | * | 19.44 | 17 | 2.5 | 10 | 0.8 | 2 | 380 | 50 |
| 04202451 | 20 x 70 | 30 | 22.4 | * | 20 | * | 19.44 | 17 | 2.5 | 10 | 0.8 | 2 | 380 | 50 |
| 04202471 | 20 x 80 | 30 | 22.4 | 19.67 | 20 | 52 | 19.44 | 17 | 2.5 | 10 | 0.8 | 2 | 380 | 25 |
| 04202481 | 20 x 90 | 30 | 22.4 | 19.67 | 20 | 52 | 19.44 | 17 | 2.5 | 10 | 0.8 | 2 | 380 | 25 |
| 04202491 | 20 x 100 | 30 | 22.4 | 19.67 | 20 | 52 | 19.44 | 17 | 2.5 | 10 | 0.8 | 2 | 380 | 25 |
| 04202501 | 20 x 110 | 30 | 22.4 | 19.67 | 20 | 52 | 19.44 | 17 | 2.5 | 10 | 0.8 | 2 | 380 | 25 |
| 04202511 | 20 x 120 | 30 | 22.4 | 19.67 | 20 | 52 | 19.44 | 17 | 2.5 | 10 | 0.8 | 2 | 380 | 25 |
| 04202521 | 20 x 130 | 30 | 22.4 | 19.67 | 20 | 52 | 19.44 | 17 | 2.5 | 10 | 0.8 | 2 | 380 | 25 |
| 04202531 | 20 x 140 | 30 | 22.4 | 19.67 | 20 | 52 | 19.44 | 17 | 2.5 | 10 | 0.8 | 2 | 380 | 25 |
| 04202541 | 20 x 150 | 30 | 22.4 | 19.67 | 20 | 52 | 19.44 | 17 | 2.5 | 10 | 0.8 | 2 | 380 | 25 |
| 04202891 | 24 x 50 | 36 | 26.4 | * | 24 | * | 21.73 | 19 | 3 | 12 | 0.8 | 2.4 | 655 | 25 |
| 04202911 | 24 x 60 | 36 | 26.4 | * | 24 | * | 21.73 | 19 | 3 | 12 | 0.8 | 2.4 | 655 | 25 |
| 04202931 | 24 x 70 | 36 | 26.4 | * | 24 | * | 21.73 | 19 | 3 | 12 | 0.8 | 2.4 | 655 | 25 |
| 04202951 | 24 x 80 | 36 | 26.4 | * | 24 | * | 21.73 | 19 | 3 | 12 | 0.8 | 2.4 | 655 | 25 |
| 04202961 | 24 x 90 | 36 | 26.4 | 23.67 | 24 | 60 | 21.73 | 19 | 3 | 12 | 0.8 | 2.4 | 655 | 20 |
| 04202971 | 24 x 100 | 36 | 26.4 | 23.67 | 24 | 60 | 21.73 | 19 | 3 | 12 | 0.8 | 2.4 | 655 | 20 |
| 04202981 | 24 x 110 | 36 | 26.4 | 23.67 | 24 | 60 | 21.73 | 19 | 3 | 12 | 0.8 | 2.4 | 655 | 20 |
| 04202991 | 24 x 120 | 36 | 26.4 | 23.67 | 24 | 60 | 21.73 | 19 | 3 | 12 | 0.8 | 2.4 | 655 | 20 |
| 04203001 | 24 x 130 | 36 | 26.4 | 23.67 | 24 | 60 | 21.73 | 19 | 3 | 12 | 0.8 | 2.4 | 655 | 20 |
| 04203011 | 24 x 140 | 36 | 26.4 | 23.67 | 24 | 60 | 21.73 | 19 | 3 | 12 | 0.8 | 2.4 | 655 | 20 |
| 04203021 | 24 x 150 | 36 | 26.4 | 23.67 | 24 | 60 | 21.73 | 19 | 3 | 12 | 0.8 | 2.4 | 655 | 20 |
All References for combination: Acero 8.8 - Cincado blanco Cr3
Todas las referencias
| Referencia | Medida M x L | Ø D Máx. | Ø D1 Máx. | Ø D2 Mín. | K Máx. | b = | e Mín. | S Nominal | P Paso rosca | t Mín. | r1 Mín. | r2 Máx. | Par apriete N/m | Envase |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 04201333 | 12 x 40 | 18 | 13.7 | * | 12 | * | 11.43 | 10 | 1.75 | 6 | 0.6 | 1.2 | 77 | 200 |
| 04201343 | 12 x 45 | 18 | 13.7 | * | 12 | * | 11.43 | 10 | 1.75 | 6 | 0.6 | 1.2 | 77 | 100 |
| 04201353 | 12 x 50 | 18 | 13.7 | * | 12 | * | 11.43 | 10 | 1.75 | 6 | 0.6 | 1.2 | 77 | 100 |
| 04201363 | 12 x 55 | 18 | 13.7 | 11.73 | 12 | 36 | 11.43 | 10 | 1.75 | 6 | 0.6 | 1.2 | 77 | 100 |
| 04201373 | 12 x 60 | 18 | 13.7 | 11.73 | 12 | 36 | 11.43 | 10 | 1.75 | 6 | 0.6 | 1.2 | 77 | 100 |
| 04201393 | 12 x 70 | 18 | 13.7 | 11.73 | 12 | 36 | 11.43 | 10 | 1.75 | 6 | 0.6 | 1.2 | 77 | 100 |
| 04201413 | 12 x 80 | 18 | 13.7 | 11.73 | 12 | 36 | 11.43 | 10 | 1.75 | 6 | 0.6 | 1.2 | 77 | 100 |
| 04201423 | 12 x 90 | 18 | 13.7 | 11.73 | 12 | 36 | 11.43 | 10 | 1.75 | 6 | 0.6 | 1.2 | 77 | 100 |
| 04201433 | 12 x 100 | 18 | 13.7 | 11.73 | 12 | 36 | 11.43 | 10 | 1.75 | 6 | 0.6 | 1.2 | 77 | 100 |
| 04200033 | 4 x 10 | 7 | 4.7 | * | 4 | * | 3.44 | 3 | 0.7 | 2 | 0.2 | 0.4 | 2.7 | 500 |
| 04200043 | 4 x 12 | 7 | 4.7 | * | 4 | * | 3.44 | 3 | 0.7 | 2 | 0.2 | 0.4 | 2.7 | 500 |
| 04200053 | 4 x 14 | 7 | 4.7 | * | 4 | * | 3.44 | 3 | 0.7 | 2 | 0.2 | 0.4 | 2.7 | 500 |
| 04200063 | 4 x 16 | 7 | 4.7 | * | 4 | * | 3.44 | 3 | 0.7 | 2 | 0.2 | 0.4 | 2.7 | 500 |
| 04200073 | 4 x 18 | 7 | 4.7 | * | 4 | * | 3.44 | 3 | 0.7 | 2 | 0.2 | 0.4 | 2.7 | 500 |
| 04200083 | 4 x 20 | 7 | 4.7 | * | 4 | * | 3.44 | 3 | 0.7 | 2 | 0.2 | 0.4 | 2.7 | 500 |
| 04200103 | 4 x 25 | 7 | 4.7 | * | 4 | * | 3.44 | 3 | 0.7 | 2 | 0.2 | 0.4 | 2.7 | 500 |
| 04200113 | 4 x 30 | 7 | 4.7 | 3.82 | 4 | 20 | 3.44 | 3 | 0.7 | 2 | 0.2 | 0.4 | 2.7 | 500 |
| 04200123 | 4 x 35 | 7 | 4.7 | 3.82 | 4 | 20 | 3.44 | 3 | 0.7 | 2 | 0.2 | 0.4 | 2.7 | 500 |
| 04200133 | 4 x 40 | 7 | 4.7 | 3.82 | 4 | 20 | 3.44 | 3 | 0.7 | 2 | 0.2 | 0.4 | 2.7 | 500 |
| 04200143 | 4 x 45 | 7 | 4.7 | 3.82 | 4 | 20 | 3.44 | 3 | 0.7 | 2 | 0.2 | 0.4 | 2.7 | 500 |
| 04200153 | 4 x 50 | 7 | 4.7 | 3.82 | 4 | 20 | 3.44 | 3 | 0.7 | 2 | 0.2 | 0.4 | 2.7 | 500 |
| 04200223 | 5 x 10 | 8.5 | 5.7 | * | 5 | * | 4.58 | 4 | 0.8 | 2.5 | 0.2 | 0.5 | 5.4 | 500 |
| 04200233 | 5 x 12 | 8.5 | 5.7 | * | 5 | * | 4.58 | 4 | 0.8 | 2.5 | 0.2 | 0.5 | 5.4 | 500 |
| 04200243 | 5 x 14 | 8.5 | 5.7 | * | 5 | * | 4.58 | 4 | 0.8 | 2.5 | 0.2 | 0.5 | 5.4 | 500 |
| 04200253 | 5 x 16 | 8.5 | 5.7 | * | 5 | * | 4.58 | 4 | 0.8 | 2.5 | 0.2 | 0.5 | 5.4 | 500 |
| 04200263 | 5 x 18 | 8.5 | 5.7 | * | 5 | * | 4.58 | 4 | 0.8 | 2.5 | 0.2 | 0.5 | 5.4 | 500 |
| 04200273 | 5 x 20 | 8.5 | 5.7 | * | 5 | * | 4.58 | 4 | 0.8 | 2.5 | 0.2 | 0.5 | 5.4 | 500 |
| 04200293 | 5 x 25 | 8.5 | 5.7 | * | 5 | * | 4.58 | 4 | 0.8 | 2.5 | 0.2 | 0.5 | 5.4 | 500 |
| 04200303 | 5 x 30 | 8.5 | 5.7 | 4.82 | 5 | 22 | 4.58 | 4 | 0.8 | 2.5 | 0.2 | 0.5 | 5.4 | 500 |
| 04200313 | 5 x 35 | 8.5 | 5.7 | 4.82 | 5 | 22 | 4.58 | 4 | 0.8 | 2.5 | 0.2 | 0.5 | 5.4 | 500 |
| 04200323 | 5 x 40 | 8.5 | 5.7 | 4.82 | 5 | 22 | 4.58 | 4 | 0.8 | 2.5 | 0.2 | 0.5 | 5.4 | 500 |
| 04200333 | 5 x 45 | 8.5 | 5.7 | 4.82 | 5 | 22 | 4.58 | 4 | 0.8 | 2.5 | 0.2 | 0.5 | 5.4 | 500 |
| 04200343 | 5 x 50 | 8.5 | 5.7 | 4.82 | 5 | 22 | 4.58 | 4 | 0.8 | 2.5 | 0.2 | 0.5 | 5.4 | 500 |
| 04200363 | 5 x 60 | 8.5 | 5.7 | 4.82 | 5 | 22 | 4.58 | 4 | 0.8 | 2.5 | 0.2 | 0.5 | 5.4 | 500 |
| 04200463 | 6 x 10 | 10 | 6.8 | * | 6 | * | 5.72 | 5 | 1 | 3 | 0.25 | 0.6 | 9.3 | 200 |
| 04200473 | 6 x 12 | 10 | 6.8 | * | 6 | * | 5.72 | 5 | 1 | 3 | 0.25 | 0.6 | 9.3 | 200 |
| 04200483 | 6 x 14 | 10 | 6.8 | * | 6 | * | 5.72 | 5 | 1 | 3 | 0.25 | 0.6 | 9.3 | 200 |
| 04200493 | 6 x 16 | 10 | 6.8 | * | 6 | * | 5.72 | 5 | 1 | 3 | 0.25 | 0.6 | 9.3 | 200 |
| 04200503 | 6 x 18 | 10 | 6.8 | * | 6 | * | 5.72 | 5 | 1 | 3 | 0.25 | 0.6 | 9.3 | 200 |
| 04200513 | 6 x 20 | 10 | 6.8 | * | 6 | * | 5.72 | 5 | 1 | 3 | 0.25 | 0.6 | 9.3 | 200 |
| 04200533 | 6 x 25 | 10 | 6.8 | * | 6 | * | 5.72 | 5 | 1 | 3 | 0.25 | 0.6 | 9.3 | 200 |
| 04200543 | 6 x 30 | 10 | 6.8 | * | 6 | * | 5.72 | 5 | 1 | 3 | 0.25 | 0.6 | 9.3 | 200 |
| 04200553 | 6 x 35 | 10 | 6.8 | 5.82 | 6 | 24 | 5.72 | 5 | 1 | 3 | 0.25 | 0.6 | 9.3 | 200 |
| 04200563 | 6 x 40 | 10 | 6.8 | 5.82 | 6 | 24 | 5.72 | 5 | 1 | 3 | 0.25 | 0.6 | 9.3 | 200 |
| 04200573 | 6 x 45 | 10 | 6.8 | 5.82 | 6 | 24 | 5.72 | 5 | 1 | 3 | 0.25 | 0.6 | 9.3 | 200 |
| 04200583 | 6 x 50 | 10 | 6.8 | 5.82 | 6 | 24 | 5.72 | 5 | 1 | 3 | 0.25 | 0.6 | 9.3 | 200 |
| 04200603 | 6 x 60 | 10 | 6.8 | 5.82 | 6 | 24 | 5.72 | 5 | 1 | 3 | 0.25 | 0.6 | 9.3 | 200 |
| 04200623 | 6 x 70 | 10 | 6.8 | 5.82 | 6 | 24 | 5.72 | 5 | 1 | 3 | 0.25 | 0.6 | 9.3 | 200 |
| 04200643 | 6 x 80 | 10 | 6.8 | 5.82 | 6 | 24 | 5.72 | 5 | 1 | 3 | 0.25 | 0.6 | 9.3 | 200 |
| 04200653 | 6 x 90 | 10 | 6.8 | 5.82 | 6 | 24 | 5.72 | 5 | 1 | 3 | 0.25 | 0.6 | 9.3 | 200 |
| 04200663 | 6 x 100 | 10 | 6.8 | 5.82 | 6 | 24 | 5.72 | 5 | 1 | 3 | 0.25 | 0.6 | 9.3 | 200 |
| 04200693 | 8 x 10 | 13 | 9.2 | * | 8 | * | 6.86 | 6 | 1.25 | 4 | 0.4 | 0.8 | 22 | 200 |
| 04200713 | 8 x 14 | 13 | 9.2 | * | 8 | * | 6.86 | 6 | 1.25 | 4 | 0.4 | 0.8 | 22 | 200 |
| 04200723 | 8 x 16 | 13 | 9.2 | * | 8 | * | 6.86 | 6 | 1.25 | 4 | 0.4 | 0.8 | 22 | 200 |
| 04200733 | 8 x 18 | 13 | 9.2 | * | 8 | * | 6.86 | 6 | 1.25 | 4 | 0.4 | 0.8 | 22 | 200 |
| 04200743 | 8 x 20 | 13 | 9.2 | * | 8 | * | 6.86 | 6 | 1.25 | 4 | 0.4 | 0.8 | 22 | 200 |
| 04200763 | 8 x 25 | 13 | 9.2 | * | 8 | * | 6.86 | 6 | 1.25 | 4 | 0.4 | 0.8 | 22 | 200 |
| 04200773 | 8 x 30 | 13 | 9.2 | * | 8 | * | 6.86 | 6 | 1.25 | 4 | 0.4 | 0.8 | 22 | 200 |
| 04200783 | 8 x 35 | 13 | 9.2 | * | 8 | * | 6.86 | 6 | 1.25 | 4 | 0.4 | 0.8 | 22 | 200 |
| 04200793 | 8 x 40 | 13 | 9.2 | 7.78 | 8 | 28 | 6.86 | 6 | 1.25 | 4 | 0.4 | 0.8 | 22 | 200 |
| 04200803 | 8 x 45 | 13 | 9.2 | 7.78 | 8 | 28 | 6.86 | 6 | 1.25 | 4 | 0.4 | 0.8 | 22 | 200 |
| 04200813 | 8 x 50 | 13 | 9.2 | 7.78 | 8 | 28 | 6.86 | 6 | 1.25 | 4 | 0.4 | 0.8 | 22 | 200 |
| 04200823 | 8 x 55 | 13 | 9.2 | 7.78 | 8 | 28 | 6.86 | 6 | 1.25 | 4 | 0.4 | 0.8 | 22 | 200 |
| 04200833 | 8 x 60 | 13 | 9.2 | 7.78 | 8 | 28 | 6.86 | 6 | 1.25 | 4 | 0.4 | 0.8 | 22 | 200 |
| 04200853 | 8 x 70 | 13 | 9.2 | 7.78 | 8 | 28 | 6.86 | 6 | 1.25 | 4 | 0.4 | 0.8 | 22 | 200 |
| 04200873 | 8 x 80 | 13 | 9.2 | 7.78 | 8 | 28 | 6.86 | 6 | 1.25 | 4 | 0.4 | 0.8 | 22 | 200 |
| 04200883 | 8 x 90 | 13 | 9.2 | 7.78 | 8 | 28 | 6.86 | 6 | 1.25 | 4 | 0.4 | 0.8 | 22 | 200 |
| 04200893 | 8 x 100 | 13 | 9.2 | 7.78 | 8 | 28 | 6.86 | 6 | 1.25 | 4 | 0.4 | 0.8 | 22 | 200 |
| 04200973 | 10 x 16 | 16 | 11.2 | * | 10 | * | 9.15 | 8 | 1.5 | 5 | 0.4 | 1 | 45 | 200 |
| 04200993 | 10 x 20 | 16 | 11.2 | * | 10 | * | 9.15 | 8 | 1.5 | 5 | 0.4 | 1 | 45 | 200 |
| 04201013 | 10 x 25 | 16 | 11.2 | * | 10 | * | 9.15 | 8 | 1.5 | 5 | 0.4 | 1 | 45 | 200 |
| 04201023 | 10 x 30 | 16 | 11.2 | * | 10 | * | 9.15 | 8 | 1.5 | 5 | 0.4 | 1 | 45 | 200 |
| 04201033 | 10 x 35 | 16 | 11.2 | * | 10 | * | 9.15 | 8 | 1.5 | 5 | 0.4 | 1 | 45 | 200 |
| 04201043 | 10 x 40 | 16 | 11.2 | * | 10 | * | 9.15 | 8 | 1.5 | 5 | 0.4 | 1 | 45 | 200 |
| 04201053 | 10 x 45 | 16 | 11.2 | 9.78 | 10 | 32 | 9.15 | 8 | 1.5 | 5 | 0.4 | 1 | 45 | 200 |
| 04201063 | 10 x 50 | 16 | 11.2 | 9.78 | 10 | 32 | 9.15 | 8 | 1.5 | 5 | 0.4 | 1 | 45 | 200 |
| 04201073 | 10 x 55 | 16 | 11.2 | 9.78 | 10 | 32 | 9.15 | 8 | 1.5 | 5 | 0.4 | 1 | 45 | 200 |
| 04201083 | 10 x 60 | 16 | 11.2 | 9.78 | 10 | 32 | 9.15 | 8 | 1.5 | 5 | 0.4 | 1 | 45 | 200 |
| 04201103 | 10 x 70 | 16 | 11.2 | 9.78 | 10 | 32 | 9.15 | 8 | 1.5 | 5 | 0.4 | 1 | 45 | 100 |
| 04201123 | 10 x 80 | 16 | 11.2 | 9.78 | 10 | 32 | 9.15 | 8 | 1.5 | 5 | 0.4 | 1 | 45 | 100 |
| 04201133 | 10 x 90 | 16 | 11.2 | 9.78 | 10 | 32 | 9.15 | 8 | 1.5 | 5 | 0.4 | 1 | 45 | 100 |
| 04201143 | 10 x 100 | 16 | 11.2 | 9.78 | 10 | 32 | 9.15 | 8 | 1.5 | 5 | 0.4 | 1 | 45 | 100 |
| 04201283 | 12 x 20 | 18 | 13.7 | * | 12 | * | 11.43 | 10 | 1.75 | 6 | 0.6 | 1.2 | 77 | 200 |
| 04201303 | 12 x 25 | 18 | 13.7 | * | 12 | * | 11.43 | 10 | 1.75 | 6 | 0.6 | 1.2 | 77 | 200 |
| 04201313 | 12 x 30 | 18 | 13.7 | * | 12 | * | 11.43 | 10 | 1.75 | 6 | 0.6 | 1.2 | 77 | 200 |
| 04201323 | 12 x 35 | 18 | 13.7 | * | 12 | * | 11.43 | 10 | 1.75 | 6 | 0.6 | 1.2 | 77 | 200 |

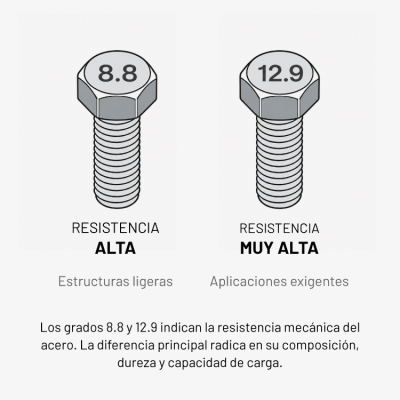

All References for combination: Acero 12.9
Todas las referencias
| Referencia | Medida M x L | Ø D Máx. | Ø D1 Máx. | Ø D2 Mín. | K Máx. | b = | e Mín. | S Nominal | P Paso rosca | t Mín. | r1 Mín. | r2 Máx. | Par apriete N/m | Envase |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 04210391 | 5 x 20 | 8.72 | 5.7 | * | 5 | * | 4.58 | 4 | 0.8 | 2.5 | 0.2 | 0.5 | 9.3 | 500 |
| 04210411 | 5 x 25 | 8.72 | 5.7 | * | 5 | * | 4.58 | 4 | 0.8 | 2.5 | 0.2 | 0.5 | 9.3 | 500 |
| 04210421 | 5 x 30 | 8.72 | 5.7 | 4.82 | 5 | 22 | 4.58 | 4 | 0.8 | 2.5 | 0.2 | 0.5 | 9.3 | 500 |
| 04210431 | 5 x 35 | 8.72 | 5.7 | 4.82 | 5 | 22 | 4.58 | 4 | 0.8 | 2.5 | 0.2 | 0.5 | 9.3 | 500 |
| 04210441 | 5 x 40 | 8.72 | 5.7 | 4.82 | 5 | 22 | 4.58 | 4 | 0.8 | 2.5 | 0.2 | 0.5 | 9.3 | 500 |
| 04210451 | 5 x 45 | 8.72 | 5.7 | 4.82 | 5 | 22 | 4.58 | 4 | 0.8 | 2.5 | 0.2 | 0.5 | 9.3 | 500 |
| 04210461 | 5 x 50 | 8.72 | 5.7 | 4.82 | 5 | 22 | 4.58 | 4 | 0.8 | 2.5 | 0.2 | 0.5 | 9.3 | 500 |
| 04210611 | 6 x 20 | 10.22 | 6.8 | * | 6 | * | 5.72 | 5 | 1 | 3 | 0.25 | 0.6 | 16 | 200 |
| 04210631 | 6 x 25 | 10.22 | 6.8 | * | 6 | * | 5.72 | 5 | 1 | 3 | 0.25 | 0.6 | 16 | 200 |
| 04210641 | 6 x 30 | 10.22 | 6.8 | * | 6 | * | 5.72 | 5 | 1 | 3 | 0.25 | 0.6 | 16 | 200 |
| 04210651 | 6 x 35 | 10.22 | 6.8 | 5.82 | 6 | 24 | 5.72 | 5 | 1 | 3 | 0.25 | 0.6 | 16 | 200 |
| 04210661 | 6 x 40 | 10.22 | 6.8 | 5.82 | 6 | 24 | 5.72 | 5 | 1 | 3 | 0.25 | 0.6 | 16 | 200 |
| 04210671 | 6 x 45 | 10.22 | 6.8 | 5.82 | 6 | 24 | 5.72 | 5 | 1 | 3 | 0.25 | 0.6 | 16 | 200 |
| 04210681 | 6 x 50 | 10.22 | 6.8 | 5.82 | 6 | 24 | 5.72 | 5 | 1 | 3 | 0.25 | 0.6 | 16 | 200 |
| 04210691 | 6 x 55 | 10.22 | 6.8 | 5.82 | 6 | 24 | 5.72 | 5 | 1 | 3 | 0.25 | 0.6 | 16 | 200 |
| 04210701 | 6 x 60 | 10.22 | 6.8 | 5.82 | 6 | 24 | 5.72 | 5 | 1 | 3 | 0.25 | 0.6 | 16 | 200 |
| 04210711 | 6 x 70 | 10.22 | 6.8 | 5.82 | 6 | 24 | 5.72 | 5 | 1 | 3 | 0.25 | 0.6 | 16 | 200 |
| 04210721 | 6 x 80 | 10.22 | 6.8 | 5.82 | 6 | 24 | 5.72 | 5 | 1 | 3 | 0.25 | 0.6 | 16 | 200 |
| 04210731 | 6 x 90 | 10.22 | 6.8 | 5.82 | 6 | 24 | 5.72 | 5 | 1 | 3 | 0.25 | 0.6 | 16 | 200 |
| 04210741 | 6 x 100 | 10.22 | 6.8 | 5.82 | 6 | 24 | 5.72 | 5 | 1 | 3 | 0.25 | 0.6 | 16 | 200 |
| 04210821 | 8 x 20 | 13.27 | 9.2 | * | 8 | * | 6.86 | 6 | 1.25 | 4 | 0.4 | 0.8 | 38 | 200 |
| 04210841 | 8 x 25 | 13.27 | 9.2 | * | 8 | * | 6.86 | 6 | 1.25 | 4 | 0.4 | 0.8 | 38 | 200 |
| 04210851 | 8 x 30 | 13.27 | 9.2 | * | 8 | * | 6.86 | 6 | 1.25 | 4 | 0.4 | 0.8 | 38 | 200 |
| 04210861 | 8 x 35 | 13.27 | 9.2 | * | 8 | * | 6.86 | 6 | 1.25 | 4 | 0.4 | 0.8 | 38 | 200 |
| 04210871 | 8 x 40 | 13.27 | 9.2 | 7.78 | 8 | 28 | 6.86 | 6 | 1.25 | 4 | 0.4 | 0.8 | 38 | 200 |
| 04210881 | 8 x 45 | 13.27 | 9.2 | 7.78 | 8 | 28 | 6.86 | 6 | 1.25 | 4 | 0.4 | 0.8 | 38 | 200 |
| 04210891 | 8 x 50 | 13.27 | 9.2 | 7.78 | 8 | 28 | 6.86 | 6 | 1.25 | 4 | 0.4 | 0.8 | 38 | 200 |
| 04210901 | 8 x 55 | 13.27 | 9.2 | 7.78 | 8 | 28 | 6.86 | 6 | 1.25 | 4 | 0.4 | 0.8 | 38 | 200 |
| 04210911 | 8 x 60 | 13.27 | 9.2 | 7.78 | 8 | 28 | 6.86 | 6 | 1.25 | 4 | 0.4 | 0.8 | 38 | 200 |
| 04210921 | 8 x 70 | 13.27 | 9.2 | 7.78 | 8 | 28 | 6.86 | 6 | 1.25 | 4 | 0.4 | 0.8 | 38 | 200 |
| 04210931 | 8 x 80 | 13.27 | 9.2 | 7.78 | 8 | 28 | 6.86 | 6 | 1.25 | 4 | 0.4 | 0.8 | 38 | 200 |
| 04210941 | 8 x 90 | 13.27 | 9.2 | 7.78 | 8 | 28 | 6.86 | 6 | 1.25 | 4 | 0.4 | 0.8 | 38 | 200 |
| 04210951 | 8 x 100 | 13.27 | 9.2 | 7.78 | 8 | 28 | 6.86 | 6 | 1.25 | 4 | 0.4 | 0.8 | 38 | 200 |
| 04210961 | 8 x 110 | 13.27 | 9.2 | 7.78 | 8 | 28 | 6.86 | 6 | 1.25 | 4 | 0.4 | 0.8 | 38 | 200 |
| 04210971 | 8 x 120 | 13.27 | 9.2 | 7.78 | 8 | 28 | 6.86 | 6 | 1.25 | 4 | 0.4 | 0.8 | 38 | 200 |
| 04211051 | 10 x 20 | 16.27 | 11.2 | * | 10 | * | 9.15 | 8 | 1.5 | 5 | 0.4 | 1 | 77 | 200 |
| 04211071 | 10 x 25 | 16.27 | 11.2 | * | 10 | * | 9.15 | 8 | 1.5 | 5 | 0.4 | 1 | 77 | 200 |
| 04211081 | 10 x 30 | 16.27 | 11.2 | * | 10 | * | 9.15 | 8 | 1.5 | 5 | 0.4 | 1 | 77 | 200 |
| 04211091 | 10 x 35 | 16.27 | 11.2 | * | 10 | * | 9.15 | 8 | 1.5 | 5 | 0.4 | 1 | 77 | 200 |
| 04211101 | 10 x 40 | 16.27 | 11.2 | * | 10 | * | 9.15 | 8 | 1.5 | 5 | 0.4 | 1 | 77 | 200 |
| 04211111 | 10 x 45 | 16.27 | 11.2 | 9.78 | 10 | 32 | 9.15 | 8 | 1.5 | 5 | 0.4 | 1 | 77 | 200 |
| 04211121 | 10 x 50 | 16.27 | 11.2 | 9.78 | 10 | 32 | 9.15 | 8 | 1.5 | 5 | 0.4 | 1 | 77 | 200 |
| 04211131 | 10 x 55 | 16.27 | 11.2 | 9.78 | 10 | 32 | 9.15 | 8 | 1.5 | 5 | 0.4 | 1 | 77 | 200 |
| 04211141 | 10 x 60 | 16.27 | 11.2 | 9.78 | 10 | 32 | 9.15 | 8 | 1.5 | 5 | 0.4 | 1 | 77 | 200 |
| 04211151 | 10 x 70 | 16.27 | 11.2 | 9.78 | 10 | 32 | 9.15 | 8 | 1.5 | 5 | 0.4 | 1 | 77 | 100 |
| 04211161 | 10 x 80 | 16.27 | 11.2 | 9.78 | 10 | 32 | 9.15 | 8 | 1.5 | 5 | 0.4 | 1 | 77 | 100 |
| 04211171 | 10 x 90 | 16.27 | 11.2 | 9.78 | 10 | 32 | 9.15 | 8 | 1.5 | 5 | 0.4 | 1 | 77 | 100 |
| 04211181 | 10 x 100 | 16.27 | 11.2 | 9.78 | 10 | 32 | 9.15 | 8 | 1.5 | 5 | 0.4 | 1 | 77 | 100 |
| 04211191 | 10 x 110 | 16.27 | 11.2 | 9.78 | 10 | 32 | 9.15 | 8 | 1.5 | 5 | 0.4 | 1 | 77 | 100 |
| 04211201 | 10 x 120 | 16.27 | 11.2 | 9.78 | 10 | 32 | 9.15 | 8 | 1.5 | 5 | 0.4 | 1 | 77 | 100 |
| 04211321 | 12 x 20 | 18.27 | 13.7 | * | 12 | * | 11.43 | 10 | 1.75 | 6 | 0.6 | 1.2 | 130 | 200 |
| 04211341 | 12 x 25 | 18.27 | 13.7 | * | 12 | * | 11.43 | 10 | 1.75 | 6 | 0.6 | 1.2 | 130 | 200 |
| 04211351 | 12 x 30 | 18.27 | 13.7 | * | 12 | * | 11.43 | 10 | 1.75 | 6 | 0.6 | 1.2 | 130 | 200 |
| 04211361 | 12 x 35 | 18.27 | 13.7 | * | 12 | * | 11.43 | 10 | 1.75 | 6 | 0.6 | 1.2 | 130 | 200 |
| 04211371 | 12 x 40 | 18.27 | 13.7 | * | 12 | * | 11.43 | 10 | 1.75 | 6 | 0.6 | 1.2 | 130 | 200 |
| 04211381 | 12 x 45 | 18.27 | 13.7 | * | 12 | * | 11.43 | 10 | 1.75 | 6 | 0.6 | 1.2 | 130 | 100 |
| 04211391 | 12 x 50 | 18.27 | 13.7 | * | 12 | * | 11.43 | 10 | 1.75 | 6 | 0.6 | 1.2 | 130 | 100 |
| 04211401 | 12 x 55 | 18.27 | 13.7 | 11.73 | 12 | 36 | 11.43 | 10 | 1.75 | 6 | 0.6 | 1.2 | 130 | 100 |
| 04211411 | 12 x 60 | 18.27 | 13.7 | 11.73 | 12 | 36 | 11.43 | 10 | 1.75 | 6 | 0.6 | 1.2 | 130 | 100 |
| 04211421 | 12 x 70 | 18.27 | 13.7 | 11.73 | 12 | 36 | 11.43 | 10 | 1.75 | 6 | 0.6 | 1.2 | 130 | 100 |
| 04211431 | 12 x 80 | 18.27 | 13.7 | 11.73 | 12 | 36 | 11.43 | 10 | 1.75 | 6 | 0.6 | 1.2 | 130 | 100 |
| 04211441 | 12 x 90 | 18.27 | 13.7 | 11.73 | 12 | 36 | 11.43 | 10 | 1.75 | 6 | 0.6 | 1.2 | 130 | 50 |
| 04211451 | 12 x 100 | 18.27 | 13.7 | 11.73 | 12 | 36 | 11.43 | 10 | 1.75 | 6 | 0.6 | 1.2 | 130 | 50 |
| 04211461 | 12 x 110 | 18.27 | 13.7 | 11.73 | 12 | 36 | 11.43 | 10 | 1.75 | 6 | 0.6 | 1.2 | 130 | 50 |
| 04211471 | 12 x 120 | 18.27 | 13.7 | 11.73 | 12 | 36 | 11.43 | 10 | 1.75 | 6 | 0.6 | 1.2 | 130 | 50 |
| 04211601 | 14 x 30 | 21.33 | 15.7 | * | 14 | * | 13.72 | 12 | 2 | 7 | 0.6 | 1.4 | 210 | 50 |
| 04211611 | 14 x 35 | 21.33 | 15.7 | * | 14 | * | 13.72 | 12 | 2 | 7 | 0.6 | 1.4 | 210 | 50 |
| 04211621 | 14 x 40 | 21.33 | 15.7 | * | 14 | * | 13.72 | 12 | 2 | 7 | 0.6 | 1.4 | 210 | 50 |
| 04211631 | 14 x 45 | 21.33 | 15.7 | * | 14 | * | 13.72 | 12 | 2 | 7 | 0.6 | 1.4 | 210 | 50 |
| 04211641 | 14 x 50 | 21.33 | 15.7 | * | 14 | * | 13.72 | 12 | 2 | 7 | 0.6 | 1.4 | 210 | 50 |
| 04211651 | 14 x 55 | 21.33 | 15.7 | * | 14 | * | 13.72 | 12 | 2 | 7 | 0.6 | 1.4 | 210 | 100 |
| 04211661 | 14 x 60 | 21.33 | 15.7 | 13.73 | 14 | 40 | 13.72 | 12 | 2 | 7 | 0.6 | 1.4 | 210 | 100 |
| 04211671 | 14 x 70 | 21.33 | 15.7 | 13.73 | 14 | 40 | 13.72 | 12 | 2 | 7 | 0.6 | 1.4 | 210 | 100 |
| 04211681 | 14 x 80 | 21.33 | 15.7 | 13.73 | 14 | 40 | 13.72 | 12 | 2 | 7 | 0.6 | 1.4 | 210 | 200 |
| 04211691 | 14 x 90 | 21.33 | 15.7 | 13.73 | 14 | 40 | 13.72 | 12 | 2 | 7 | 0.6 | 1.4 | 210 | 100 |
| 04211701 | 14 x 100 | 21.33 | 15.7 | 13.73 | 14 | 40 | 13.72 | 12 | 2 | 7 | 0.6 | 1.4 | 210 | 100 |
| 04211711 | 14 x 110 | 21.33 | 15.7 | 13.73 | 14 | 40 | 13.72 | 12 | 2 | 7 | 0.6 | 1.4 | 210 | 100 |
| 04211721 | 14 x 120 | 21.33 | 15.7 | 13.73 | 14 | 40 | 13.72 | 12 | 2 | 7 | 0.6 | 1.4 | 210 | 100 |
| 04211731 | 14 x 130 | 21.33 | 15.7 | 13.73 | 14 | 40 | 13.72 | 12 | 2 | 7 | 0.6 | 1.4 | 210 | 100 |
| 04211741 | 14 x 140 | 21.33 | 15.7 | 13.73 | 14 | 40 | 13.72 | 12 | 2 | 7 | 0.6 | 1.4 | 210 | 100 |
| 04211751 | 14 x 150 | 21.33 | 15.7 | 13.73 | 14 | 40 | 13.72 | 12 | 2 | 7 | 0.6 | 1.4 | 210 | 100 |
| 04211851 | 16 x 30 | 24.33 | 17.7 | * | 16 | * | 16 | 14 | 2 | 8 | 0.6 | 1.6 | 325 | 100 |
| 04211861 | 16 x 35 | 24.33 | 17.7 | * | 16 | * | 16 | 14 | 2 | 8 | 0.6 | 1.6 | 325 | 100 |
| 04211871 | 16 x 40 | 24.33 | 17.7 | * | 16 | * | 16 | 14 | 2 | 8 | 0.6 | 1.6 | 325 | 100 |
| 04211881 | 16 x 45 | 24.33 | 17.7 | * | 16 | * | 16 | 14 | 2 | 8 | 0.6 | 1.6 | 325 | 100 |
| 04211891 | 16 x 50 | 24.33 | 17.7 | * | 16 | * | 16 | 14 | 2 | 8 | 0.6 | 1.6 | 325 | 50 |
| 04211901 | 16 x 55 | 24.33 | 17.7 | * | 16 | * | 16 | 14 | 2 | 8 | 0.6 | 1.6 | 325 | 50 |
| 04211911 | 16 x 60 | 24.33 | 17.7 | * | 16 | * | 16 | 14 | 2 | 8 | 0.6 | 1.6 | 325 | 50 |
| 04211921 | 16 x 70 | 24.33 | 17.7 | 15.73 | 16 | 44 | 16 | 14 | 2 | 8 | 0.6 | 1.6 | 325 | 50 |
| 04211931 | 16 x 80 | 24.33 | 17.7 | 15.73 | 16 | 44 | 16 | 14 | 2 | 8 | 0.6 | 1.6 | 325 | 50 |
| 04211941 | 16 x 90 | 24.33 | 17.7 | 15.73 | 16 | 44 | 16 | 14 | 2 | 8 | 0.6 | 1.6 | 325 | 50 |
| 04211951 | 16 x 100 | 24.33 | 17.7 | 15.73 | 16 | 44 | 16 | 14 | 2 | 8 | 0.6 | 1.6 | 325 | 50 |
| 04211961 | 16 x 110 | 24.33 | 17.7 | 15.73 | 16 | 44 | 16 | 14 | 2 | 8 | 0.6 | 1.6 | 325 | 50 |
| 04211971 | 16 x 120 | 24.33 | 17.7 | 15.73 | 16 | 44 | 16 | 14 | 2 | 8 | 0.6 | 1.6 | 325 | 50 |
| 04211981 | 16 x 130 | 24.33 | 17.7 | 15.73 | 16 | 44 | 16 | 14 | 2 | 8 | 0.6 | 1.6 | 325 | 50 |
| 04211991 | 16 x 140 | 24.33 | 17.7 | 15.73 | 16 | 44 | 16 | 14 | 2 | 8 | 0.6 | 1.6 | 325 | 50 |
| 04212001 | 16 x 150 | 24.33 | 17.7 | 15.73 | 16 | 44 | 16 | 14 | 2 | 8 | 0.6 | 1.6 | 325 | 50 |
| 04212121 | 18 x 45 | 27.33 | 20.2 | * | 18 | * | 16 | 14 | 2.5 | 9 | 0.6 | 1.8 | 445 | 50 |
| 04212131 | 18 x 50 | 27.33 | 20.2 | * | 18 | * | 16 | 14 | 2.5 | 9 | 0.6 | 1.8 | 445 | 50 |
| 04212141 | 18 x 55 | 27.33 | 20.2 | * | 18 | * | 16 | 14 | 2.5 | 9 | 0.6 | 1.8 | 445 | 50 |
| 04212151 | 18 x 60 | 27.33 | 20.2 | * | 18 | * | 16 | 14 | 2.5 | 9 | 0.6 | 1.8 | 445 | 50 |
| 04212161 | 18 x 70 | 27.33 | 20.2 | 17.73 | 18 | 48 | 16 | 14 | 2.5 | 9 | 0.6 | 1.8 | 445 | 50 |
| 04212171 | 18 x 80 | 27.33 | 20.2 | 17.73 | 18 | 48 | 16 | 14 | 2.5 | 9 | 0.6 | 1.8 | 445 | 50 |
| 04212181 | 18 x 90 | 27.33 | 20.2 | 17.73 | 18 | 48 | 16 | 14 | 2.5 | 9 | 0.6 | 1.8 | 445 | 50 |
| 04212191 | 18 x 100 | 27.33 | 20.2 | 17.73 | 18 | 48 | 16 | 14 | 2.5 | 9 | 0.6 | 1.8 | 445 | 50 |
| 04212351 | 20 x 40 | 30.33 | 22.4 | * | 20 | * | 19.44 | 17 | 2.5 | 10 | 0.8 | 2 | 635 | 50 |
| 04212361 | 20 x 45 | 30.33 | 22.4 | * | 20 | * | 19.44 | 17 | 2.5 | 10 | 0.8 | 2 | 635 | 50 |
| 04212371 | 20 x 50 | 30.33 | 22.4 | * | 20 | * | 19.44 | 17 | 2.5 | 10 | 0.8 | 2 | 635 | 50 |
| 04212381 | 20 x 55 | 30.33 | 22.4 | * | 20 | * | 19.44 | 17 | 2.5 | 10 | 0.8 | 2 | 635 | 50 |
| 04212391 | 20 x 60 | 30.33 | 22.4 | * | 20 | * | 19.44 | 17 | 2.5 | 10 | 0.8 | 2 | 635 | 50 |
| 04212401 | 20 x 70 | 30.33 | 22.4 | * | 20 | * | 19.44 | 17 | 2.5 | 10 | 0.8 | 2 | 635 | 25 |
| 04212411 | 20 x 80 | 30.33 | 22.4 | 19.67 | 20 | 52 | 19.44 | 17 | 2.5 | 10 | 0.8 | 2 | 635 | 25 |
| 04212421 | 20 x 90 | 30.33 | 22.4 | 19.67 | 20 | 52 | 19.44 | 17 | 2.5 | 10 | 0.8 | 2 | 635 | 25 |
| 04212431 | 20 x 100 | 30.33 | 22.4 | 19.67 | 20 | 52 | 19.44 | 17 | 2.5 | 10 | 0.8 | 2 | 635 | 25 |
| 04212441 | 20 x 110 | 30.33 | 22.4 | 19.67 | 20 | 52 | 19.44 | 17 | 2.5 | 10 | 0.8 | 2 | 635 | 25 |
| 04212451 | 20 x 120 | 30.33 | 22.4 | 19.67 | 20 | 52 | 19.44 | 17 | 2.5 | 10 | 0.8 | 2 | 635 | 25 |
| 04212461 | 20 x 130 | 30.33 | 22.4 | 19.67 | 20 | 52 | 19.44 | 17 | 2.5 | 10 | 0.8 | 2 | 635 | 25 |
| 04212471 | 20 x 140 | 30.33 | 22.4 | 19.67 | 20 | 52 | 19.44 | 17 | 2.5 | 10 | 0.8 | 2 | 635 | 25 |
| 04212481 | 20 x 150 | 30.33 | 22.4 | 19.67 | 20 | 52 | 19.44 | 17 | 2.5 | 10 | 0.8 | 2 | 635 | 25 |
| 04212831 | 24 x 60 | 36.39 | 26.4 | * | 24 | * | 21.73 | 19 | 3 | 12 | 0.8 | 2.4 | 1090 | 25 |
| 04212841 | 24 x 70 | 36.39 | 26.4 | * | 24 | * | 21.73 | 19 | 3 | 12 | 0.8 | 2.4 | 1090 | 25 |
| 04212851 | 24 x 80 | 36.39 | 26.4 | * | 24 | * | 21.73 | 19 | 3 | 12 | 0.8 | 2.4 | 1090 | 25 |
| 04212861 | 24 x 90 | 36.39 | 26.4 | 23.67 | 24 | 60 | 21.73 | 19 | 3 | 12 | 0.8 | 2.4 | 1090 | 20 |
Otros productos que pueden interesarte
