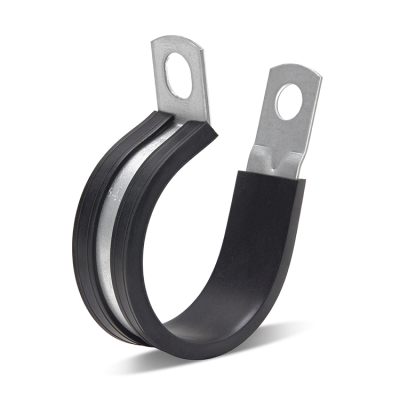

Abrazadera SMS
Las abrazaderas P-Clip SMS están especialmente recomendadas para los trabajos de sujeción de tubos de plástico y mangueras en aplicaciones de sectores como la construcción, sanitario y la automoción. Usadas habitualmente en diferentes tipos de maquinaria agrícola, construcción de barcos y vehículos comerciales.
El perfil en caucho EPDM asegura una buena sujeción eliminando la vibración y evitando el daño que se pudiera causar en la zona de sujeción. A diferencia de la P-Clip DIN 3016, la P-Clip SMS tiene un agujero frontal ovalado y el agujero posterior redondo que permite una flexibilidad en el momento de la sujeción.
Las abrazaderas P-Clip SMS se presentan en dos anchos de cinta 12,7 mm (tornillo M6) y 15,9 mm (tornillo M8).
* Diámetros especiales disponibles bajo pedido.
¿Qué calidad necesitas?
Material:
W1 Acero galvanizado S350 + Z275
Resistencia a la corrosión:
144 horas de niebla salina (ASTM B-117)
Referencia | Denom. | Ø D ± 0.4 | E ± 0.4 | T ± 0.1 | Envase | Embalaje |
---|---|---|---|---|---|---|
03025007 | SMS 4/12 | 4.8 | 15.4 | 0.8 | 500 | 2000 |
03025015 | SMS 6/12 | 6.4 | 16.2 | 0.8 | 500 | 500 |
03025022 | SMS 7/12 | 7.9 | 17 | 0.8 | 500 | 500 |
03025066 | SMS 9/12 | 9.5 | 17.8 | 0.8 | 500 | 500 |
03025067 | SMS 10/12 | 10 | 18 | 0.8 | 500 | 500 |
03025069 | SMS 11/12 | 11.1 | 18.6 | 0.8 | 500 | 500 |
03025077 | SMS 12/12 | 12.7 | 19.4 | 1 | 200 | 200 |
03025082 | SMS 13/12 | 13 | 19.6 | 1 | 200 | 200 |
03025090 | SMS 14/12 | 14.3 | 20.2 | 1 | 200 | 200 |
03025106 | SMS 15/12 | 15.9 | 21 | 1 | 200 | 800 |
03025122 | SMS 17/12 | 17.5 | 21.8 | 1 | 200 | 800 |
03025144 | SMS 19/12 | 19 | 22.6 | 1 | 200 | 200 |
03025155 | SMS 20/12 | 20.6 | 23.4 | 1 | 200 | 200 |
03025169 | SMS 22/12 | 22.2 | 24.2 | 1 | 100 | 100 |
03025185 | SMS 23/12 | 23.8 | 25 | 1 | 100 | 100 |
03025177 | SMS 25/12 | 25.4 | 25.8 | 1 | 200 | 200 |
03025225 | SMS 27/12 | 27 | 27.1 | 1.2 | 100 | 100 |
03025235 | SMS 28/12 | 28.6 | 27.9 | 1.2 | 100 | 100 |
03025255 | SMS 30/12 | 30.2 | 28.6 | 1.2 | 100 | 100 |
03025266 | SMS 31/12 | 31.8 | 29.4 | 1.2 | 100 | 100 |
03025274 | SMS 33/12 | 33.3 | 30.2 | 1.2 | 100 | 100 |
03025293 | SMS 34/12 | 34.9 | 31 | 1.2 | 100 | 100 |
03025310 | SMS 36/12 | 36.5 | 31.8 | 1.2 | 100 | 100 |
03025330 | SMS 38/12 | 38.1 | 32.6 | 1.2 | 100 | 100 |
03025360 | SMS 41/12 | 41 | 34 | 1.2 | 100 | 100 |
03025390 | SMS 44/12 | 45 | 36 | 1.2 | 50 | 50 |
03025422 | SMS 47/12 | 47 | 36.5 | 1.2 | 50 | 50 |
03025466 | SMS 51/12 | 51 | 39 | 1.2 | 50 | 50 |
03025499 | SMS 54/12 | 54 | 41.5 | 1.2 | 50 | 50 |
03025366 | SMS 60/12 | 60 | 43.5 | 1.2 | 50 | 50 |
03025377 | SMS 65/12 | 65 | 46.1 | 1.2 | 50 | 50 |
03025477 | SMS 74/12 | 74 | 50 | 1.2 | 25 | 25 |
03025480 | SMS 82/12 | 82 | 59 | 1.2 | 25 | 25 |
03025500 | SMS 110/12 | 110 | 68 | 1.2 | 50 | 50 |
03025600 | SMS 6/15 | 6.4 | 16.2 | 0.8 | 500 | 500 |
03025611 | SMS 7/15 | 7.9 | 17 | 0.8 | 500 | 500 |
03025622 | SMS 9/15 | 9.5 | 17.8 | 0.8 | 200 | 200 |
03025633 | SMS 11/15 | 11.1 | 18.6 | 0.8 | 200 | 200 |
03025644 | SMS 12/15 | 12.7 | 19.4 | 1 | 200 | 200 |
03025655 | SMS 14/15 | 14.3 | 20.2 | 1 | 200 | 200 |
03025666 | SMS 15/15 | 15.9 | 21 | 1 | 200 | 200 |
03025677 | SMS 17/15 | 17.5 | 21.8 | 1 | 200 | 200 |
03025688 | SMS 19/15 | 19 | 22.6 | 1 | 200 | 200 |
03025699 | SMS 20/15 | 20.6 | 23.4 | 1 | 200 | 200 |
03025700 | SMS 22/15 | 22.2 | 24.2 | 1 | 100 | 100 |
03025711 | SMS 23/15 | 23.8 | 25 | 1 | 100 | 100 |
03025722 | SMS 25/15 | 25.4 | 25.8 | 1 | 100 | 100 |
03025733 | SMS 27/15 | 27 | 27.1 | 1.2 | 100 | 100 |
03025744 | SMS 30/15 | 30.2 | 28.6 | 1.2 | 100 | 100 |
03025755 | SMS 31/15 | 31.8 | 29.4 | 1.2 | 100 | 100 |
03025766 | SMS 33/15 | 33.3 | 30.2 | 1.2 | 100 | 100 |
03025777 | SMS 35/15 | 34.9 | 31 | 1.2 | 100 | 100 |
03025788 | SMS 36/15 | 36.5 | 31.8 | 1.2 | 100 | 100 |
03025799 | SMS 38/15 | 38.1 | 32.6 | 1.2 | 50 | 50 |
03025800 | SMS 40/15 | 40 | 33.5 | 1.2 | 50 | 50 |
03025811 | SMS 41/15 | 41 | 34 | 1.2 | 50 | 50 |
03025822 | SMS 44/15 | 44 | 35.5 | 1.2 | 50 | 50 |
03025833 | SMS 45/15 | 45 | 36 | 1.2 | 100 | 100 |
03025844 | SMS 47/15 | 47 | 36.5 | 1.2 | 100 | 100 |
03025855 | SMS 51/15 | 51 | 39 | 1.2 | 50 | 50 |
03025866 | SMS 55/15 | 55 | 42 | 1.2 | 50 | 50 |
03025877 | SMS 60/15 | 60 | 43.5 | 1.2 | 50 | 50 |
03025888 | SMS 64/15 | 64 | 45.6 | 1.2 | 50 | 50 |
03025899 | SMS 75/15 | 75 | 50.5 | 1.2 | 25 | 25 |
03025900 | SMS 110/15 | 110 | 68 | 1.2 | 50 | 50 |
