Ball-Lock Stainless Steel Cable Tie: Permanent and Backlash-Free Fastening
Are you tired of plastic cable ties failing against the corrosion? Discover the Mikalor stainless steel cable tie, featuring an unbreakable ball-lock system that can withstand up to 114 kg and 400 hours of salt spray exposure. The ultimate 'fit and forget' solution for heavy-duty industrial installations.
The Stainless Steel Cable Tie is a permanent fastening system manufactured from AISI 304 stainless steel. Thanks to its innovative ball-lock mechanism, it guarantees a reliable, self-locking fastening with zero backlash or slippage under load.
With a tensile strength of up to 114 kg and the capacity to secure diameters exceeding 300 mm, it far outperforms standard nylon ties in heavy-duty applications.
For a professional and flush finish, using a dedicated tensioning tool is highly recommended. This installation gun automates tensioning and cuts the excess band, accelerating assembly lines and eliminating the need for periodic maintenance inspections.
Technical Datasheet
| Feature | Data |
|---|---|
| Material | Stainless Steel W4 AISI 304 |
| Maximum Tensile Strength | Up to 114 kg |
| Diameter Range | Up to > 300 mm |
| Available Band Widths | 14 options |
| Corrosion Resistance (ASTM B117) | 400 h Salt Spray Test |
| Reversibility | No, permanent application |

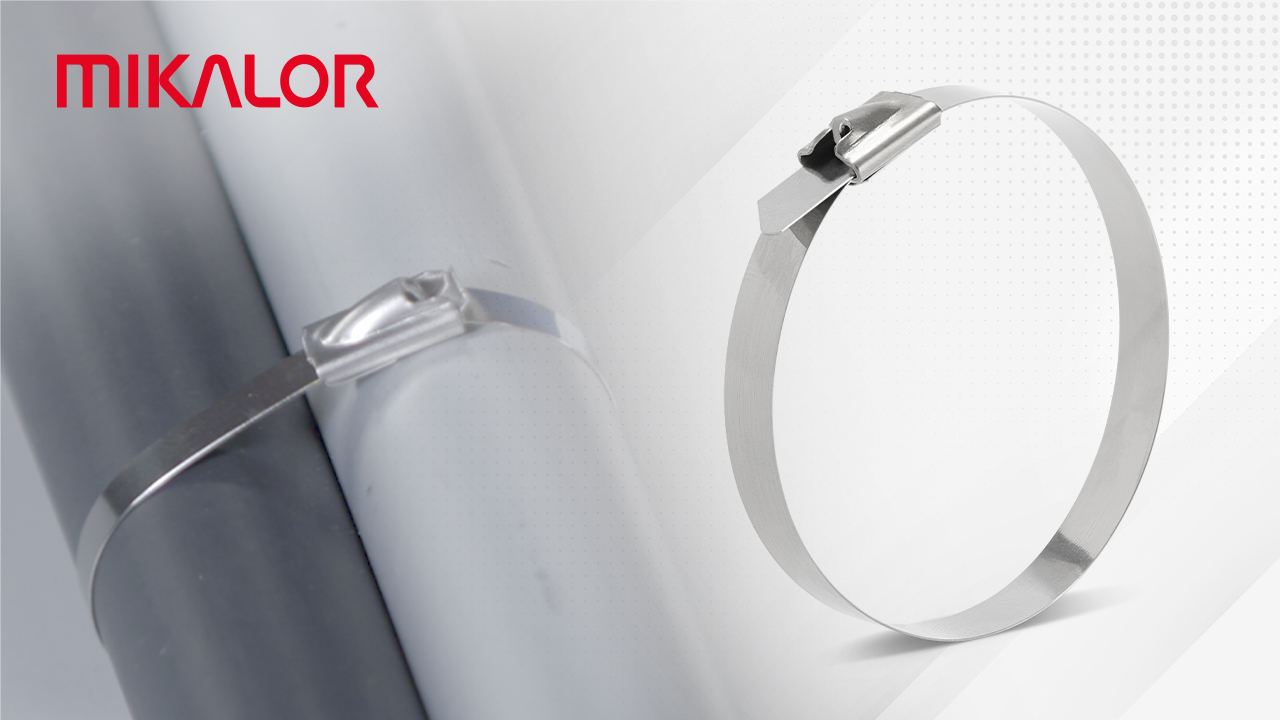

What is a Stainless Steel Cable Tie?
A Stainless Steel Cable Tie—technically known as a stainless steel locking tie—is a fastening system made of AISI 304 stainless steel that secures via a locking head with an internal steel ball inside. After tensioning, the ball permanently blocks the band into place.
This eliminates any backlash, maintains the tightening force, and ensures a tamper-proof installation. It is the go-to choice for professionals who need a durable, maintenance-free solution capable of handling diameters up to 300 mm and loads up to 114 kg.
In short: fit and forget.
Why Choose a Stainless Steel Cable Tie Over Other Alternatives

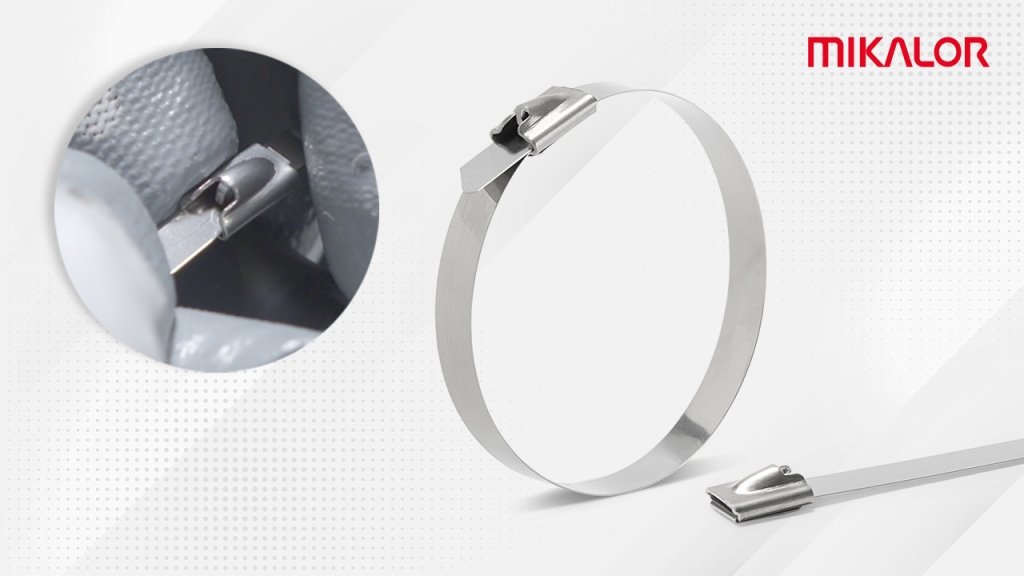

The Tamper-Proof Mechanism That Makes the Difference
The differentiating element of the Mikalor Stainless Steel Cable Tie lies in its locking head. A small steel ball housed inside acts as a one-way ratchet: as the band is tensioned, the ball wedges into place and blocks any reverse movement.
This eliminates the two most frequent issues found in conventional fastening systems:
The loss of tightness due to vibrations, thermal expansions, or material aging.
Unauthorized tampering, since once the cable tie is installed, it cannot be loosened again.
The result is a permanent and tamper-proof tie by design.

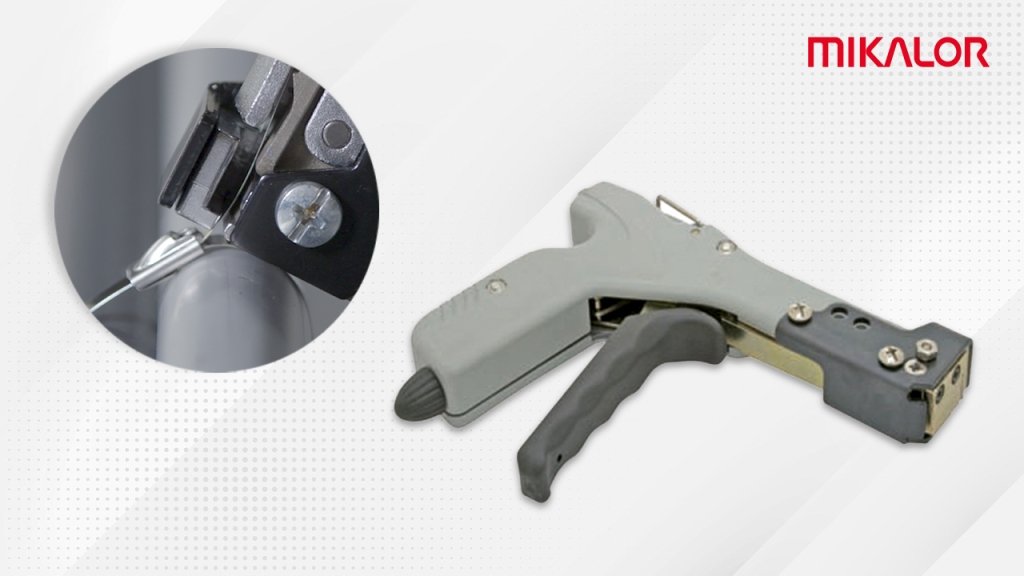

Clean Installation with an Assembly Gun
This type of tie is not installed using conventional manual tools. The Mikalor installation gun automates the process in two steps:
It automatically tensions up to the optimal point, meaning it does not rely solely on the operator's judgment.
It cuts the excess band flush with the locking-head, leaving no protruding ends or exposed sharp edges.
The result: a fast, uniform, and secure installation with no parts that can snag or cause injury. Zero rework.

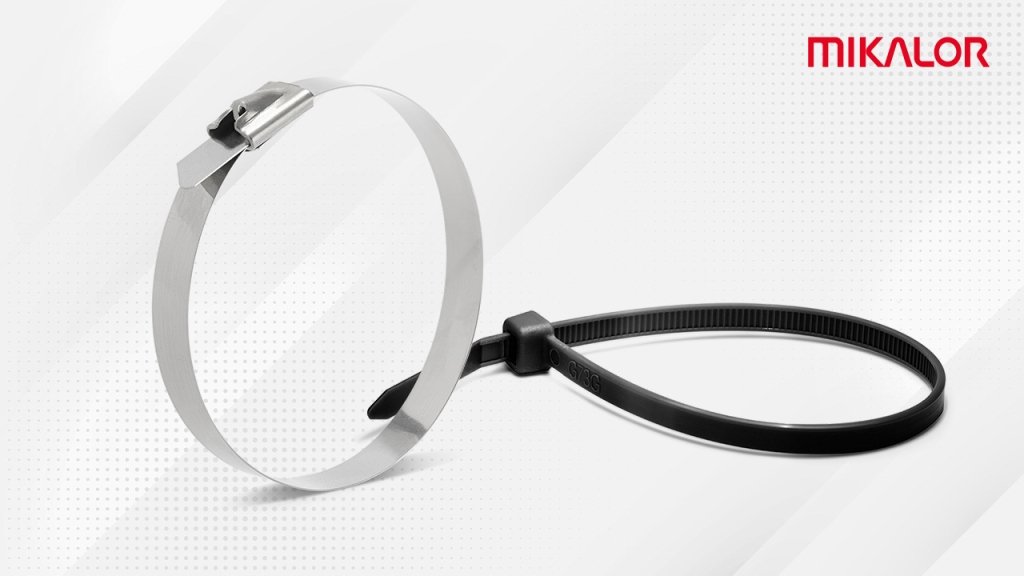

Stainless Steel Cable Tie vs. Nylon Cable Tie: Technical Comparison
When a Nylon Cable Tie is Not Enough
Nylon ties—also known as plastic cable ties—are a valid solution for low-demand applications, such as cable management, light bundling, and environments without significant chemical or thermal exposure.
However, when an installation requires real durability—in automotive engineering, industrial plumbing, or environments with chemical exposure—the limits of nylon ties become clear compared to a Stainless Steel Cable Tie.
The following comparison uses the technical data of Damesa's standard nylon tie (a brand of the same Mikalor group) as a reference, ensuring that the comparison is based on our own verified data:
| Feature | Nylon Tie (Standard Damesa) | Mikalor Stainless Steel Cable Tie |
|---|---|---|
| Material | Polyamide 6.6 | Stainless Steel AISI 304 |
| Tensile Strength | Around ~22 kg (standard models) | Up to 114 kg |
| Operating Temperature | Up to ~85 °C | High (metallic, no polymer limit) |
| UV Resistance | Degrades with prolonged exposure | Unaffected |
| Chemical Resistance | Moderate | High (AISI 304) |
| Loss of Tightness | Possible due to nylon expansion | Impossible (ball-lock mechanism) |
| Permanent Installation | No (can be cut and replaced) | Yes (tamper-proof by design) |
| Typical Applications | Cabling, light bundling | Pipes, hoses, critical installations |
The Key is Not the Cost, But the Total Value
A nylon tie that fails on an industrial pipe does not just involve the cost of the part; it also means downtime, inspection labor, and the risk of major damage. The Stainless Steel Cable Tie eliminates that hidden cost from day one.
Industrial Applications of the Stainless Steel Cable Tie
Sectors Where the Tamper-Proof Tie is Imperative
The Stainless Steel Cable Tie is a versatile tool that adapts to various demanding environments:
Automotive: Securing cooling, fuel, and compressed air hoses in high-vibration environments.
Plumbing and HVAC: Fastening large-diameter pipes and hoses where leak-tightness is critical.
Marine Industry and Maritime Environments: Providing resistance to 400 hours of salt spray (according to the ASTM B117 standard), suitable for coastal or onboard installations.
Agrofood Sector: Meeting the hygiene and chemical resistance requirements of processing facilities.
Industrial Electrical Installations: Bundling wire and cable harnesses where future access is difficult.
Construction and Civil Infrastructure: Conduits in restricted-access structures that must last for decades without intervention.
The Mediterranean Environment as a Real-World Testing Ground
Our production plant near Barcelona allows us to validate each Stainless Steel Cable Tie under the real conditions of the Mediterranean coast. Subjecting the product to the saline humidity, thermal fluctuations, and UV exposure of this environment—well beyond standard laboratory tests—ensures that each piece is engineered to withstand the highest environmental chemical aggressiveness.
The Mikalor Quality Standard: 80 Years Do Not Happen by Chance
A Long Trajectory is the Best Guarantee
For over 80 years, at Mikalor we have been manufacturing clamps and fasteners following a single criterion: that the product efficiently fulfills its purpose. This principle has guided every design decision, every material selection, and every quality control process we implement today.
Standardized certificates and testing, such as ASTM B117 for corrosion resistance, are not an external imposition for us, but rather the natural way to document what our products already do.
Why This Stainless Steel Cable Tie is the Culmination of That Experience
Because it concentrates all that expertise in these 3 characteristics:
Steel Ball-Lock Head Design: An elegant mechanical solution that resolves the issue of backlash at its root.
AISI 304 Stainless Steel: A material selected for its proven performance, not its cost.
Assembly Gun with Automatic Regulation: A tool engineered so that the installation depends on the system, not the operator.
All of this converges into a single promise: fit and forget.
Frequently Asked Questions About the Stainless Steel Cable Tie
What is the difference between a stainless steel cable tie and a worm-drive hose clamp?
A worm-drive clamp allows the tension to be adjusted and readjusted using a screw, meaning it can loosen over time due to vibration or temperature fluctuations. In contrast, the Stainless Steel Cable Tie utilizes a steel ball mechanism that locks the band permanently: once tensioned, no backlash or reverse movement is possible. It is the appropriate choice when the installation must be definitive and does not require subsequent disassembly.
Can a tamper-proof stainless steel cable tie be reused?
No. The tamper-proof tie is by definition designed to be a permanent fastening system. Once installed and the excess band is cut flush with the locking head, it cannot be loosened or removed without cutting it. This is precisely what guarantees that the tightening force is never lost. For applications that require disassembly, other alternatives are available in the Mikalor catalog.
What corrosion resistance does the cable tie offer in marine environments?
The Mikalor tie is manufactured from W4 AISI 304 stainless steel and exceeds 400 hours of salt spray testing according to the ASTM B117 standard. This makes it a valid and highly reliable solution for installations in coastal environments, on marine vessels, and for any application with continuous exposure to saline humidity or corrosive agents.
Is the assembly gun necessary to install the stainless steel cable tie?
Technically it is not mandatory, but it is highly recommended. The Mikalor installation gun automatically regulates the tension and cuts the excess band flush with the head, ensuring a uniform, clean, and safe installation. Without it, the result depends entirely on the operator's criteria, and the finish may not be optimal. For professional and high-volume serial installations, the gun is the correct tool.
For what diameters is the stainless steel cable tie suitable?
The Mikalor Stainless Steel Cable Tie can be applied to bundle diameters exceeding 300 mm, covering a very wide range of applications: from medium-sized industrial hoses to large-section conduits in plumbing, HVAC installations, or civil infrastructure. The 14 available band widths allow the solution to be perfectly tailored to each specific case.
Is the stainless steel cable tie suitable for large-diameter pipes in HVAC systems?
Yes. The Mikalor Stainless Steel Cable Tie is specifically engineered for diameters exceeding 300 mm, making it an ideal choice for heating, ventilation, and air conditioning (HVAC) installations, industrial ventilation, and fluid conduits in major infrastructures. The variety of available band widths allows the clamping pressure to be adjusted to the specifications of each pipe.
The Definitive Fastening for Zero-Failure Installations
When the margin for error is zero, the fastening mechanism cannot be a variable. The Mikalor Stainless Steel Cable Tie eliminates that variable by offering permanent tightening, certified materials, a clean installation, and the backing of over 80 years of experience in designing high-quality solutions.
Do you need technical advice or want to place your order?
Our technical team is available to help you select the right Stainless Steel Cable Tie for your specific application.
👉 Contact our technical team — Tell us about your project and we will guide you with no obligation.
👉 Log in to the private area and manage your order — Check immediate availability, prices, and place your order directly.
Mikalor — Hose clamp manufacturers for over 80 years. Barcelona, Spain.
Technical analysis: Diego Collado, Quality Manager at Mikalor. Written by the technical marketing team at Damesa, a Mikalor Group company.
