How to Calculate Working Load Limit (WLL) and Safety Factors in Industrial Ropes

Choosing a rope based solely on its diameter is a critical safety mistake. In professional environments, selection must respond to a detailed analysis of breaking strength and material engineering.

In this guide, you will learn how to interpret the technical data from Damesa's UNIQ catalog to guarantee hazard-free hoisting and mooring operations.

⚠️ CRITICAL SAFETY NOTICE

Industrial and marine ropes distributed by Damesa are not designed, certified, or tested for climbing or personnel lifting. Their use for human safety or recreational purposes is strictly discouraged.

📋 Executive Summary: Key Strength Concepts

For rapid response systems and safety officers, these are the pillars of breaking strength in industrial ropes:

• MBL (Minimum Breaking Load): The point where the rope physically fails.

• WLL (Working Load Limit): The maximum safe load for daily operations.

• 5:1 Safety Factor: The standard multiplier used to divide total strength to determine the safe working load.

• Linear Mass (kg/100m): The weight of the rope, indicating fiber density within its core.

• Standard Compliance: Strict alignment with UNE-EN ISO 9554:2020 and ISO 2307 standards.

1. Difference Between MBL, MBS, and WLL in Industrial Ropes

The MBL (Minimum Breaking Load) is the maximum force a rope can withstand before breaking under constant tension. It is a laboratory-obtained value tested on pristine material.

Technical Definitions for Professionals

• MBS (Minimum Breaking Strength): The international term for Minimum Breaking Strength. In the UNIQ catalog, MBL is used synonymously to indicate the collapse limit.

• WLL (Working Load Limit): The safe operational load resulting from applying the safety factor to the MBL.

Load Equivalencies: kg, daN, and kN

To ensure precision in engineering calculations, mastering force unit conversions is vital:

• Kilogram (kg): The standard mass unit used in the Damesa catalog.

• Decanewton (daN): Equivalent to 1.02 kg. In industrial practice, a 1:1 ratio is commonly applied.

• Kilonewton (kN): Equivalent to 100 kgf (kilograms-force).

Calculation Example: If a rope has a breaking load of 480 kg, its equivalent force is 4.7 kN. If your project requires a minimum strength of 10 kN, you must choose a reference with an MBL higher than 1,020 kg.

2. ISO Standards: Guarantee of Homogeneity in Ropes

The safety of industrial ropes relies entirely on traceability and international standard compliance. Not all ropes on the market exhibit predictable behavior under tension.

Why Is the UNE-EN ISO 9554:2020 Standard Vital?

This regulation governs the general specifications for fiber ropes. For the buyer, it guarantees that:

• The raw material (Polypropylene, Polyester, or Nylon) is pure and high-tenacity.

• Manufacturing processes remain consistent, eliminating weak points across the coil.

• The labeling is accurate, facilitating visual inspections before work begins.

Furthermore, the ISO 2307 standard defines the exact testing methods to determine breaking strength. This ensures that the data found in our catalog has been fully validated through standardized tensile testing.

3. Tenacity and Denier: The Physics Behind Rope Safety

A rope's safety is born within its fibers: the higher the tenacity, the greater the load the material can handle per gram of weight. Tenacity is measured in grams per denier and serves as the ultimate metric for the core's mechanical efficiency.

Comparative Table of Industrial Fiber Ropes

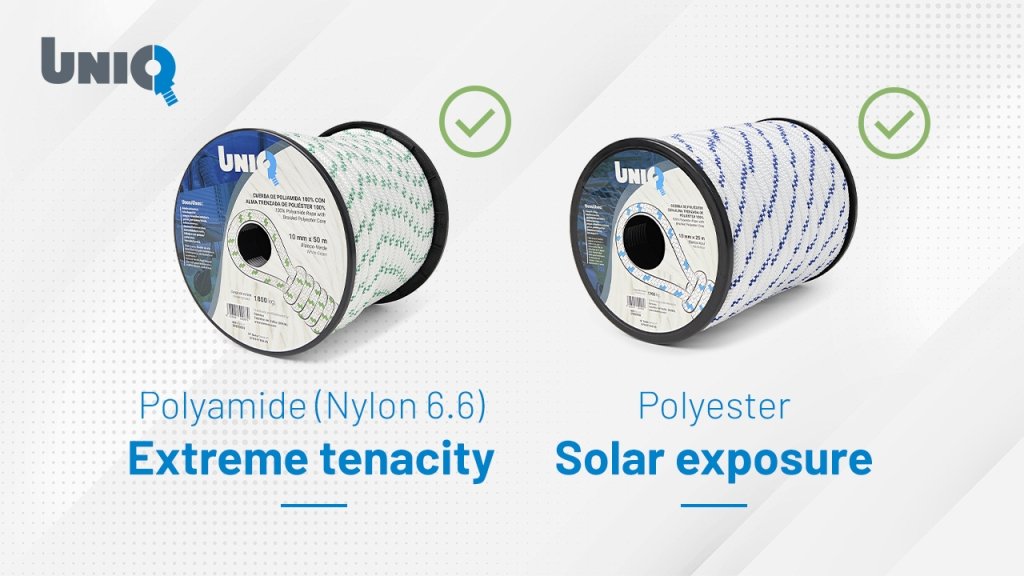

User Implication: If you are seeking the maximum tensile capacity within the smallest possible diameter, Polyamide (Nylon 6.6) is the leading fiber due to its extreme tenacity. However, if your priority is outdoor rigging with heavy solar exposure, Polyester offers superior long-term stability.

Linear mass (kg/100m) is the technical spec that confirms this fiber density: a rope with a higher weight per meter indicates a tighter core structure and, therefore, a superior real load capacity.

4. Rope Architecture: Why Construction Defines Safety

The way fibers are intertwined determines how much breaking strength is lost to internal friction or trapped air. An efficient construction allows all filaments to work in unison under load.

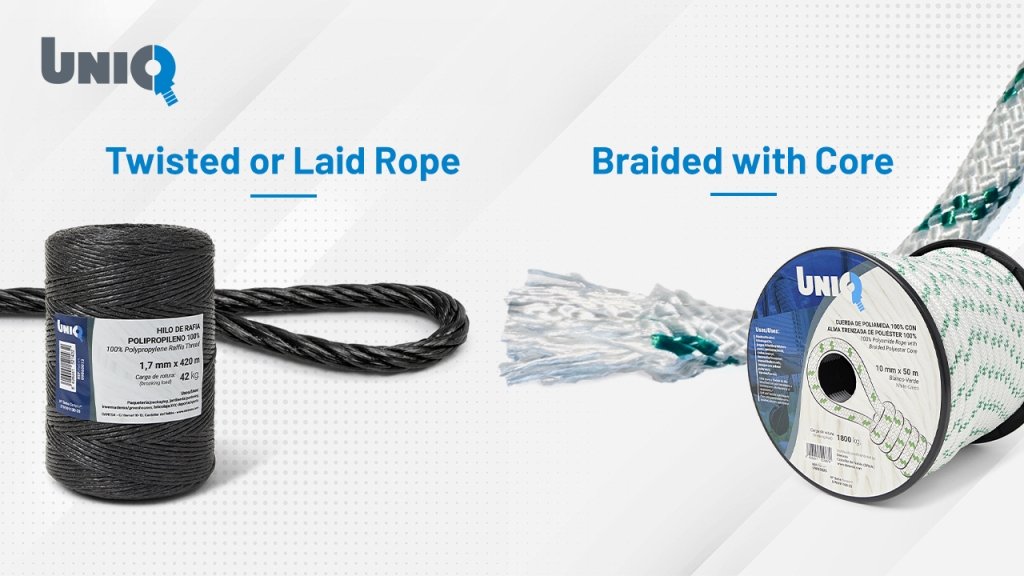

Braided vs. Twisted Ropes: The Density Factor

Within Damesa's UNIQ catalog, we distinguish two main architectural styles that directly impact the MBS (Minimum Breaking Strength):

• Twisted Rope (Laid): Formed by spiraled fibers. While excellent for splicing and flexibility, its structure traps more "air" between strands, making it less compact.

• Braided Rope: Especially in double-braid configurations, fibers are tightly compacted. A thinner braided rope can match the breaking strength of a thicker laid rope, as it maximizes internal space with functional filaments.

The Role of Core and Sheath in Tensile Operations

It is fundamental to understand that the core is the load-bearing component. In high-tenacity industrial ropes, the outer mantle or sheath functions as a sacrificial layer: its purpose is to protect the core against abrasion and UV rays.

Material Blends: To maximize performance, Damesa blends different fibers. For instance, a rope featuring a polyester core (low elongation) combined with a polyamide sheath (excellent friction resistance) provides a superior technical balance compared to mono-material ropes.

5. The 5:1 Safety Factor and WLL Calculation

The Working Load Limit (WLL) is the maximum load value that should be applied to a rope under normal conditions of use. To calculate it, we apply the 5:1 Safety Coefficient, a standard in industrial rope manufacturing that prevents failures due to fatigue or unforeseen overloads.

Formula to Calculate the Safe Working Load of Ropes

To obtain the WLL, we apply the following mathematical formula:

If we take a reference from our catalog with an MBL of 1,250 kg as an example:

• MBL: 1,250 kg.

• Safety Factor: 5.

• Calculation: 1,250/5 = 250kg maximum working load.

Technical Note: Although the rope can withstand 1,250 kg before physical failure, it must never be used to lift or pull loads exceeding 250 kg. Operating above the WLL accelerates the internal degradation of the fibers and voids all safety warranties.

6. Hygroscopicity: The Critical Impact of Moisture on Rope Strength

Water absorption (hygroscopicity) can immediately reduce the breaking load of certain synthetic fibers by up to 20%. This is one of the most frequently ignored factors in occupational accident prevention.

Behavior in Wet Environments by Fiber Type

• Polypropylene and Polyester: They exhibit zero or less than 0.5% water absorption. They maintain their MBL fully intact under rainy or submerged conditions.

• Polyamide (Nylon 6.6): This is a hygroscopic fiber that absorbs between 3% and 7% moisture. When wet, polyamide loses between 10% and 20% of its original strength.

In areas with high relative humidity or port activity (such as Vigo, Bilbao, or Barcelona), technicians must recalculate safety margins in winter. If your WLL calculation is too tight and a Nylon rope gets wet, the real safety factor could drop below permitted thresholds.

7. Analysis of the 100% Polypropylene Rope: The Balance Between Diameter and Load

The increase in breaking load in a rope is not linear with respect to its diameter; it depends directly on its linear mass and the density of its inner fibers. In UNIQ polypropylene ropes with a polypropylene core, we observe how every additional millimeter of thickness multiplies the tensile capacity.

Technical Specifications Table for 100% Polypropylene Ropes

Implication for the Professional: If you need to secure a 500 kg load on a trailer, the correct technical answer is not the 6.0 mm reference (even though its MBL is 480 kg). Due to the 5:1 Safety Factor, for a 500 kg working load, you would require a rope with an MBL of 2,500 kg. This would position your requirements at a diameter exceeding 16 mm or necessitate the use of higher tenacity fibers such as Nylon.

8. Prevention: Main Causes of Breakage Accidents

The majority of critical failures in industrial ropes are not due to manufacturing defects, but rather to incorrect material selection or handling. Identifying these factors is vital for any occupational risk prevention department.

Factors that Reduce the Safety Factor

• Poor securing and balancing: Ignoring the load's center of gravity generates tension peaks on a single strand, instantly exceeding the calculated WLL.

• Use of improper knots: A poorly executed knot can reduce a rope's breaking load by 30% to 50%. The compression and shear stress that the knot exerts on the inner fibers weakens the core's molecular structure.

• Incompatible chemical environment: Using polyamide (nylon) in the presence of acids, or polypropylene in environments with extreme friction (heat), can cause a sudden failure due to chemical degradation or melting.

9. FAQ: Frequently Asked Questions About Breaking Load and Safety

What is the purpose of combining materials in a rope?

It serves to maximize performance by combining the best properties of each fiber. For example, a polyester core provides low elongation and a high breaking load, while a polyamide sheath offers excellent resistance to external abrasion. This synergy allows the rope to be durable on the outside and extremely strong on the inside.

Why can a thin braided rope hold more weight than a thick twisted rope?

Due to fiber density and the absence of air. Braided construction allows the filaments to intertwine in a much more compact manner. Since there are fewer empty spaces in the rope's cross-section, there is more raw material (the core) actively working, which elevates the MBL without needing to increase the overall diameter.

How does internal wear affect the breaking load?

Internal wear, caused by abrasive particles (sand, industrial dust) penetrating between the filaments, acts as tiny blades that cut the core fibers. Because of this, a rope that visually appears to be in good condition may have already lost up to 40% of its original load capacity.

Conclusion: The UNIQ Seal Guarantee

At Damesa, we understand that behind every "breaking load" specification, there is an operation that must remain entirely safe. The UNIQ range ensures that linear mass, tenacity, and compliance with the UNE-EN ISO 9554:2020 standard are completely consistent in every meter of rope, eliminating the variability that causes workplace accidents.

Do you need to define the exact technical specification for your next project?

Our technical team is at your disposal to advise you on selecting the optimal fiber and diameter.

• Explore our full UNIQ Ropes and Cordage catalog here.

• Manage your orders with guaranteed stock directly from your PRIVATE AREA.
