Industrial Rope Types: A Technical Comparison of Fibers and Strengths

Not all ropes are created equal because not all fibers react the same way to tension, chemicals, or climate conditions.

In this technical guide, we analyze the materials in the Damesa rope range, comparing natural and synthetic fibers so you can always choose based on a set of reliable, objective data.

1. Types of Synthetic Ropes and Their Industrial Advantages

Synthetic fibers have revolutionized the industry due to their ability to be "engineered" for specific challenges.

• Polypropylene (PP): The fiber of efficiency. Thanks to its low specific gravity (0.91), it offers exceptional lightness and natural buoyancy.

  This characteristic, combined with its zero hygroscopy—meaning its inability to absorb water—makes it the preferred choice for applications in the marine and fluvial sectors.

• Polyamide (Nylon 6.6): The standard for shock absorption. It stands out for superior elasticity that prevents breakage during sudden jolts, backed by a tenacity of 8.5–10 g/denier.

  It is important to consider that its optimal performance occurs in dry conditions, as moisture slightly affects its load-bearing capacity.

• Polyester (PES): Maximum balance and resilience. This fiber is noted for its high UV tolerance and excellent resistance to frictional wear.

  Since it is unaffected by moisture, it guarantees constant performance in any weather condition, making it the standard for outdoor projects requiring a long service life.

• Polyethylene: Vital in waste management due to its extremely low friction and high resistance to corrosive chemical agents.

🔍 TECHNICAL NOTE – What does a tenacity of 8.5–10 g/denier mean?

To understand why this range is a "standard of excellence," we must break down the unit of measurement: the gram per denier (g/den).

1. What is Denier?

It is the measure of the "thickness" of the yarn. By international standards, if we take a yarn 9,000 meters long and it weighs 1 gram, we say it has 1 denier. The higher the denier, the thicker the yarn.

2. The Tenacity Formula

Tenacity is defined as the breaking strength divided by the linear mass of the fiber. In simple terms:

3. Why is 8.5 – 10 g/denier a high figure?

To put it into perspective, let’s compare the tenacity of Polyamide 6.6 with other common materials:

2. Natural Fiber Ropes: Sisal, Hemp, and Cotton

Despite the advancement of polymers, fibers like Sisal, Hemp, or Cotton remain the standard for various specific applications:

• Mechanical Properties: They are characterized by almost zero elongation, making them the ideal solution for static traction and firm moorings.

• Functional Behavior: They offer superior grip while being biodegradable. Therefore, they are ideal for sectors such as agriculture and decoration, where aesthetics and environmental respect are paramount.

3. Mechanical Properties: How Does a Rope Respond Under Tension?

To understand how a rope will respond under tension, we must analyze three key concepts:

• Tenacity: The maximum resistance to breaking per unit of linear mass.

  While polypropylene offers moderate tenacity (5–7 g/denier), polyamide 6.6 reaches levels of excellence (up to 10 g/denier).

• Elongation at Break: The percentage the rope stretches before failing.

  Polyamide is the most elastic (18–30%), acting as a shock absorber. Polyester is more rigid (12–20%), ideal when precision in load height is required.

• Flex Fatigue: Evaluates resistance to repetitive loading.

  Polyamide and polyester show very high and high resistance respectively, extending their service life in pulleys and intense duty cycles.

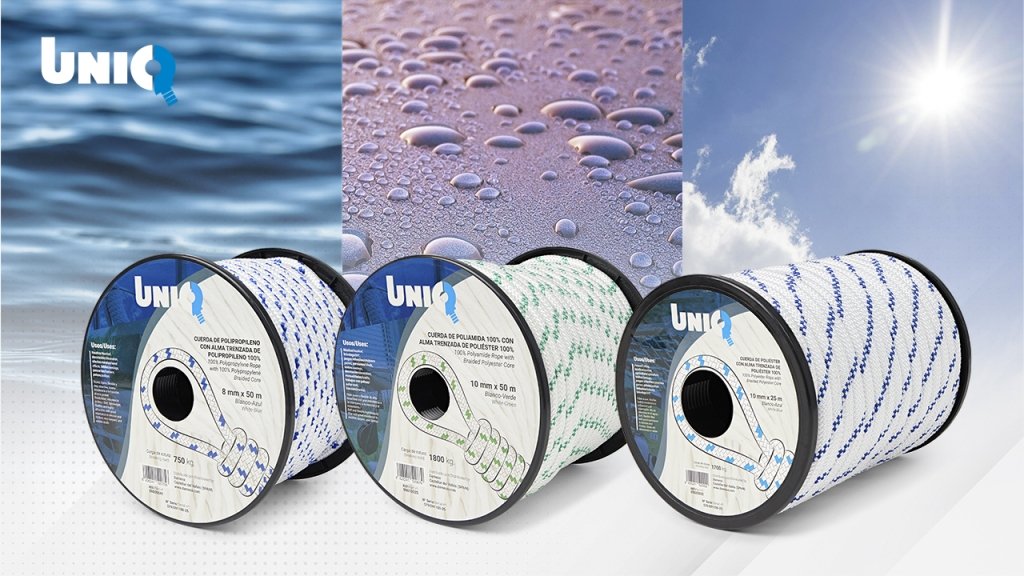

4. Environmental Resistance and Rope Durability

The environment where the rope will operate defines its durability as much as the load it supports:

• Specific Gravity (Buoyancy): Polypropylene is the only fiber with a value below 1 (0.91), which guarantees it floats, while materials like polyester (1.38) and polyamide (1.14) sink.

• Water Absorption (Hygroscopy): Polyamide absorbs between 3–7% moisture, which can increase its weight and slightly reduce its breaking load. However, polypropylene and polyester are practically immune to water.

• UV Resistance (Crystallization): Polyester is the undisputed leader in solar resistance. Polypropylene, without specific stabilizers, suffers rapid degradation that makes the fiber brittle, known as crystallization.

5. Rope Resistance to Chemicals and Extreme Heat

Industrial safety requires knowing the critical limits of each material:

• Melting Points:

  • Polyester: 255–265 °C (Safe working limit: 120 °C).

  • Polyamide: 210–265 °C (Safe working limit: 100 °C).

  • Polypropylene: 160–170 °C (Safe working limit: 80 °C).

• Flame Behavior: Polyester is self-extinguishing, making it safer in environments with spark risks or high-friction work.

⚠️ SAFETY NOTE (Thermal Risk): Due to its low melting point (160–170 °C), polypropylene ropes must not be used in applications where constant friction can generate extreme heat, as the fiber may melt and fail suddenly.

• Chemical Resistance: Polypropylene offers very high resistance to almost all acids and bases, surpassing polyamide in this regard, making it ideal for use in chemical waste treatment plants.

6. Industrial Rope Technical Glossary

For correct specification, we integrate these essential concepts:

• Linear Mass (kg/100m): The weight of the rope per unit of length.

• Specific Breaking Load: The maximum force the material withstands before structural collapse.

• Friction Coefficient: Defines the fiber's gripping capacity. A high value prevents knots from slipping, while a low value allows the rope to slide without wearing down.

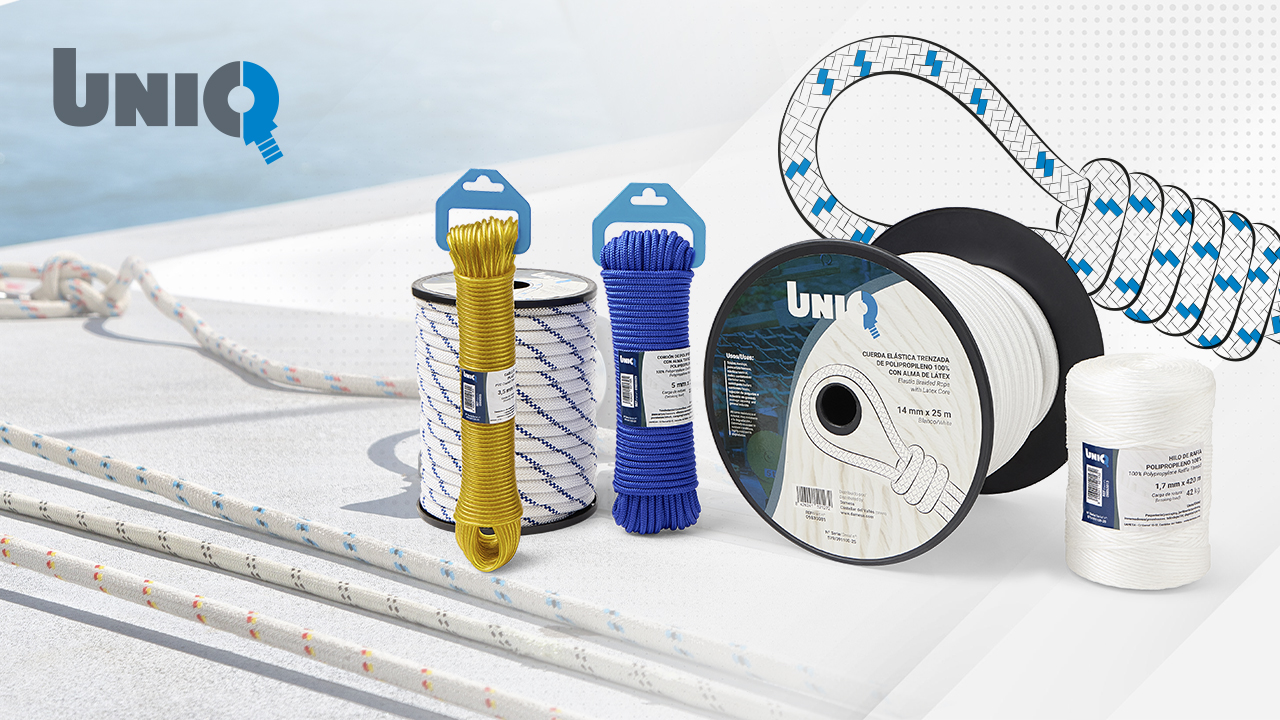

7. UNIQ Range: The Quality Standard in High-Tenacity Ropes

Beyond the material, the construction method is decisive. This is where the new UNIQ line makes the difference. An excellent fiber that is poorly braided loses its properties.

UNIQ ensures that the physical characteristics of the fiber remain constant in every meter of rope. In industry, variability is the enemy of safety; UNIQ eliminates weak points, ensuring that the tenacity declared in the technical data sheet is real from the beginning to the end of the reel.

Do you have questions about which fiber is most suitable for your environment?

Our technical team will help you define the best specification. Find all measurements and references in the new Rope Catalog and, once you have selected your reference, process your order conveniently from your PRIVATE AREA.

Coming Soon: In the second part of this series, we will take the leap into practice. We will analyze how to interpret breaking loads, what safety factors you should apply in your calculations, and how to avoid accidents by choosing the real strength your operations require.

See you in the next article!
