Polypropylene, Nylon, or Polyester Ropes: Technical Guide for Industrial Selection

For professionals in the industrial, marine, or construction sectors, high-tenacity industrial rope transcends the category of a simple resource to become an engineering tool. Understanding its composition—from the base polymer to the braiding technique—is the difference between an efficient operation and a critical material failure.

This guide consolidates the fundamental concepts to establish a solid technical foundation for the use of synthetic cordage. This technical guide analyzes the properties of synthetic ropes, from polyamide (nylon) ropes to high-tenacity polypropylene cords.

Key Points of Industrial Cordage:

• Definition: A fiber rope is a flexible element formed by joining yarns or filaments that are twisted or braided to create a heavy-duty structure.

• Construction: Primarily divided into twisted ropes (spiral fibers) and braided ropes (intertwined yarns, with or without a core).

• Materials: Predominant synthetic fibers include polyamide (PA)—also known as nylon rope—high-strength polyester (PES), polypropylene (PP)—ideal for its lightness and buoyancy—and polyethylene.

• Certified Quality: To ensure technical homogeneity and compliance in every meter of rope, it is essential to look for brands that adhere to the UNIQ standard.

Anatomy of Industrial Rope: Sheath, Core, and Technical Components

To speak the language of cordage, it is essential to break down the rope into its physical and operational components. Technical terminology enables precise communication in the work environment.

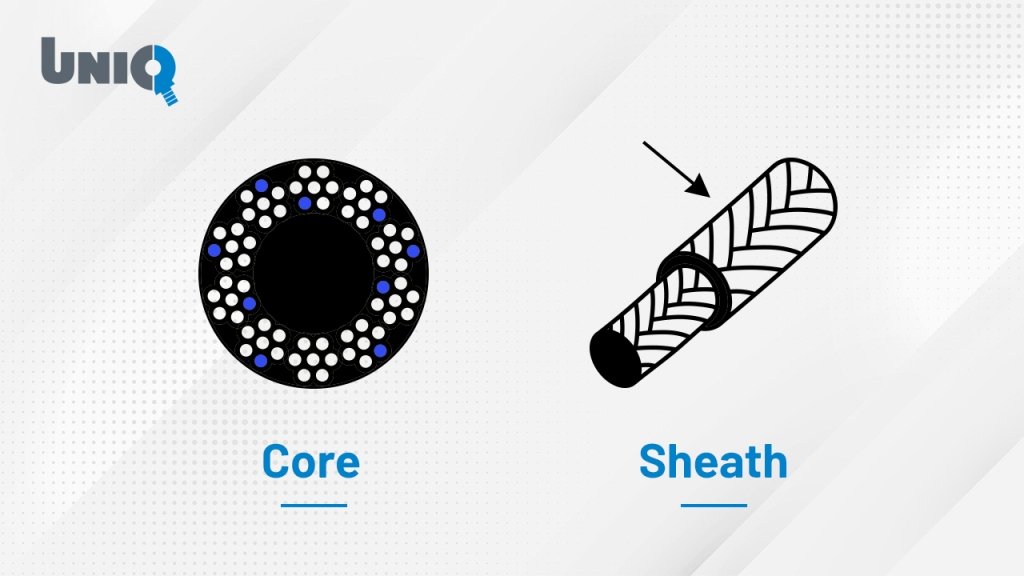

Structural Components:

• Core (Kernel): The inner part of the rope, responsible for bearing the main load. It can be composed of parallel, braided, or twisted filaments.

• Sheath (Cover/Mantle): The outer layer of braided ropes that protects the core from abrasion and external elements. Generally manufactured from polyester or polyamide (nylon) to provide shape and resistance to the assembly.

Terminology Dictionary for Cordage Professionals

In daily handling, specific terms are used to define the sections of the rope:

• Bitter end: The free end of the rope.

• Eye: A fixed loop at the end of the rope, created for clipping into an object or carabiner, permanently closed by a splice or seizing.

• Seizing/Whipping: A binding at the end of the rope to prevent fraying.

• Knot: Intertwining of the rope with itself or another to fasten, tighten, or join.

• Hitch: A security knot used to finish other knots and prevent slipping.

• Bight: The curve or loop formed between the two ends.

• Standing part: The section of the rope that is not being knotted or manipulated.

• Loop: A curvature formed by folding the rope over itself; when permanently closed, it is called an eye.

• Tracer (Marker): Refers to the secondary color thread or trace. While there is no universal standard, brands like Damesa's UNIQ use colors to identify different rope types, similar to lifting slings.

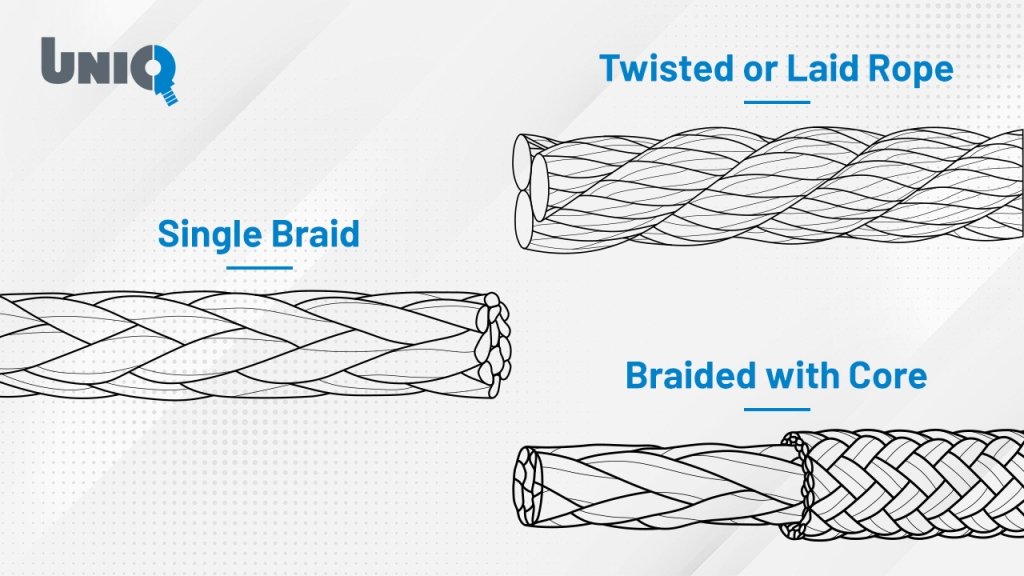

Rope Types by Manufacturing: Twisted vs. Braided Ropes

The way fibers are assembled determines the mechanical behavior regarding tensile strength and flexibility.

Twisted or Laid Rope

This method consists of twisting the fibers in a spiral. This construction improves strength and flexibility in a balanced way, being very common in traditional applications and simple mooring.

Braided Ropes: Strength and Double Braid

Manufactured by interlacing yarns, which offers a more compact structure.

• Single Braid: A solid structure of intertwined yarns.

• Braided with Core (Double Braid): Combines an outer sheath with a core and a second inner sheath. This is the standard configuration for high resistance, where the sheath protects the core while the core manages the tension.

Classification of Ropes according to Elongation and Material

Not all tasks require the same elastic response. Classification by elongation is vital for operational safety.

Elongation Comparison: Dynamic vs. Static Ropes

• Dynamic Ropes: Designed to absorb energy through high stretch capacity. They are essential when there is a risk of falls or sudden jerks.

• Semi-static Ropes: Offer a balance, with moderate elongation that allows safe handling in height work and rescue.

• Static Ropes: Have minimal elongation. They are the ideal choice for load lifting where precision is required and the load does not bounce or vary its height.

⚠️ SAFETY NOTE: It is particularly important to know if the use of such ropes is suitable for climbing or lifting people, as their characteristics and certifications are very different from industrial cordage.

Properties of Polypropylene, Polyamide (Nylon), and Polyester Rope

As discussed in the previous blog, unlike natural fibers (Cotton, Sisal, Hemp), synthetic fibers allow absolute control over chemical and physical properties, which is why we can distinguish:

• Polyamide (PA): High elasticity and great shock absorption capacity.

• Polyester (PES): Excellent UV resistance and low elongation, maintaining performance in dry and wet conditions.

• Polypropylene (PP): Notable for its buoyancy and resistance to chemical agents.

Technical Comparison of Synthetic Rope Fibers

To facilitate the choice of material according to the needs of your industrial or marine project, we have summarized the technical values of our range of polyester, nylon, and polypropylene in the following table:

Note for the professional: Although these values are a reference standard, the construction of the rope (twisted or braided), among others, can influence final performance. We will expand on these technical data in our next installment on Breaking Loads.

Technical Measurement Guide: Diameters and Cordage Formats

A common mistake in the procurement of industrial cordage is failing to consider how the material is measured or the format in which it is supplied. Whether you require local supply or international distribution, understanding these variables directly impacts logistics, budgeting, and operational safety.

How to Properly Measure the Diameter of Synthetic Ropes

The diameter (thickness in mm) directly affects compatibility with pulleys, carabiners, and braking devices. For an accurate measurement, follow these steps:

• Use a Vernier Caliper: It is the only tool that guarantees millimeter precision.

• Measure across the crests: Place the jaws at the maximum diameter, not in the valleys of the braid.

• Avoid compression: Do not apply pressure to the material to prevent false readings.

• Working load: It is recommended to measure under a light load (approx. 10 kg) so that the rope is properly compacted.

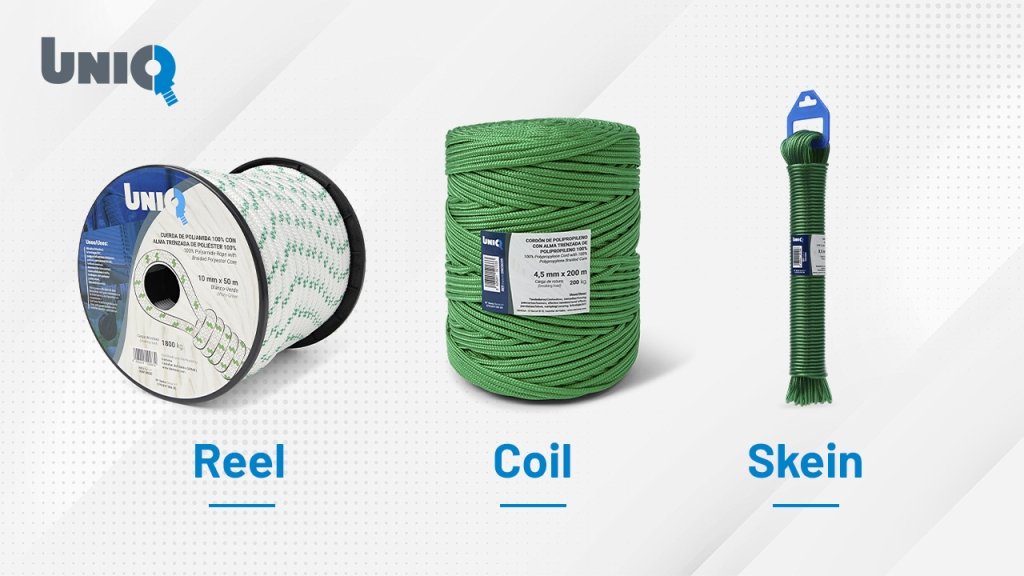

Commercial Formats and POS Display

• Reels: Supplied on a high-resistance black PVC support, ideal for frequent unwinding.

• Coils: Wound and compressed without the PVC component, optimizing storage space.

• Skeins: A compact format that includes a blue hanger, facilitating display and organization at the Point of Sale (POS).

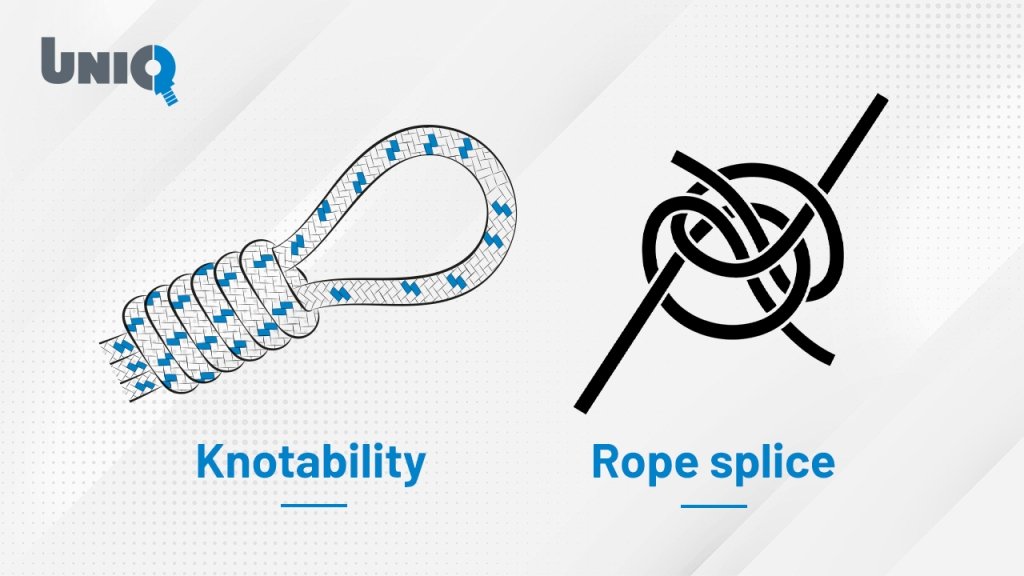

Difference between Knotability and Splicing: When to Avoid Knots

Knotability is defined as the ease of making secure knots that do not slip or damage the fiber structure. This property depends directly on the rope's flexibility and surface coating. A rope splice, on the other hand, is an advanced technique of interlacing fibers to join ends or form loops without resorting to knots, thus maintaining better structural integrity.

Work Safety: Impact of Knots on Rope Strength

While we will delve deeper into this in our next guide, it is vital to understand that any knot introduces zones of compression and shear stress. A knot can immediately reduce a rope's load capacity by 30% to 50%. For example, while a Figure-Eight Knot is among the safest—retaining 75-80% of the original strength—a Clove Hitch can reduce it by up to 50% and poses slipping risks under intermittent tension. Therefore, mechanical terminations or factory splices are recommended whenever possible.

UNIQ Quality Standard: Certified Ropes for Industrial Use

To ensure that all the aforementioned concepts (diameter, strength, knotability) are consistently met, the UNIQ brand establishes itself as the quality benchmark based on 7 fundamental pillars:

• Homogeneity: No unforeseen changes in manufacturing; consistent quality in every meter.

• Guarantee of Conformity: Strict compliance with technical specifications and certifications.

• Proximity: Fast access thanks to 7 regulatory warehouses in Spain and an international presence.

• Expert Advice: Personalized service for every specific application.

• Clear Information: Labeling and formats that facilitate the correct technical selection.

• Wide Range: Diversity of sizes and materials.

• Damesa Support: Excellence in service, immediacy, and stock availability.

FAQ: Frequently Asked Questions about Industrial Ropes

What rope should be used for work at height?

For industrial environments and professional rescue, semi-static ropes are used. These provide the necessary stability for positioning and controlled ascent/descent.

Important: These ropes are tools for industrial use and occupational safety; they should not be confused with dynamic climbing ropes, as their energy absorption properties and certifications are different.

How much does a knot reduce a rope's strength?

A knot can reduce a rope’s load capacity by 30% to 50%. For example, the Figure-Eight knot is among the most efficient, retaining 80% of the strength, whereas a Clove Hitch can reduce it by half. It is always preferable to use sewn terminations or factory splices.

What is the difference between polyamide rope and polyester rope?

The main difference lies in elasticity and UV resistance. Polyamide (nylon) is highly elastic and excels at shock absorption, but it loses strength when wet. Polyester is more rigid, maintains its tenacity in humid environments, and offers much better resistance to solar degradation.

Which rope floats in water and why?

Polypropylene rope is the one that floats because its specific gravity (0.91) is lower than that of water (1.0). It is the standard choice for the marine and buoyage sectors, as it does not sink or absorb water, maintaining its lightweight properties.

What is the difference between dynamic, static, and semi-static ropes?

The main difference lies in their elongation capacity and energy absorption. Dynamic ropes act like a spring, stretching to absorb the impact of a sudden fall. At the opposite end, static ropes have minimal elongation, making them the ideal choice for load lifting where precision is required without bouncing. Finally, semi-static ropes offer a middle ground, allowing safe handling in industrial work at height without the instability of an elastic rope.

What is the difference between twisted and braided ropes?

The difference lies in their mechanical behavior and structure. Twisted or laid rope is manufactured by spiraling fibers together, providing excellent flexibility and ease of splicing—very common in traditional mooring. Conversely, braided rope (especially "double braid") interlaces yarns to form a more compact and protected structure.

While a single braid is a solid construction, a braid-on-braid (core-dependent) rope uses an outer sheath to protect the core, which is the component that actually manages the tension and breaking load.

Understanding cordage from its technical foundation is the first step toward professional operations.

For more information, find all measurements and references in the new UNIQ Rope Catalog. Once you have selected your reference, process your order with total convenience through your PRIVATE AREA.

Coming Soon: In our next installment, we will analyze Breaking Loads in depth and how to perform the mathematical calculations to determine the real safety factor for your projects.

See you in the next article!
