Complete Guide to DIN 580 & DIN 582 Lifting Eye Bolts
Discover the differences between DIN 580 lifting eye bolts (male) and DIN 582 lifting eye nuts (female), how to choose the right lifting point, and UNIQ certified solutions from Damesa.
A poorly selected lifting eye bolt is a real safety risk
An incorrectly selected or improperly installed lifting eye bolt represents a genuine hazard—both for worker safety and for the integrity of the equipment being handled.
To prevent workplace accidents, production delays, and costly downtime, it is essential to understand how to select, install, and use lifting points correctly.
In this article, we’ll guide you in a clear and practical way so that you can identify which type of lifting eye you need, how to mount it properly, and how to operate it safely in any industrial lifting environment.
You’ll also learn to distinguish between the male lifting eye bolt (DIN 580) and the female lifting eye nut (DIN 582), when it’s best to choose rotating or fixed versions, and which factors you should check before purchasing and each time you use the lifting component.
What are lifting eye bolts, and what are they used for?
Definition and technical function
A lifting eye bolt is a threaded anchoring point designed to securely connect a sling, hook, or shackle to the load that needs to be lifted or manipulated.
Its primary function is to withstand the tensile forces generated during lifting, within the limits defined by the manufacturer—typically expressed as WLL (Working Load Limit) or CMU in Spanish (Carga Máxima de Utilización). Other key parameters include the safety factor, thread size and type, and, in some advanced models, the ability to rotate or pivot to align with the load’s direction.
At first glance, it may appear to be just another hardware part—but the lifting eye bolt is a critical anchoring component designed to support high-load lifting operations safely. Its geometry and material strength ensure that every lifting maneuver is carried out with maximum stability and reliability.
Main components and compatibility factors
For a lifting point to perform properly, it’s essential to understand its basic components and how they interact with other lifting system elements.
Eye or ring: the circular section where the sling or shackle connects.
Threaded shank (in lifting eye bolts, DIN 580) or internal thread (in lifting eye nuts, DIN 582).
Bearing surface or contact base: the threaded section must be embedded in a sufficiently strong base material to ensure mechanical resistance.
Compatibility: designed to connect with textile slings, wire rope or chain slings, crane hooks, and lifting shackles.
A single installation error—such as a damaged thread, a misaligned hole, or an incompatible sling—can compromise the safety of the entire lifting assembly. That’s why checking the condition and compatibility of each component is vital to avoid failure during the handling of suspended loads.

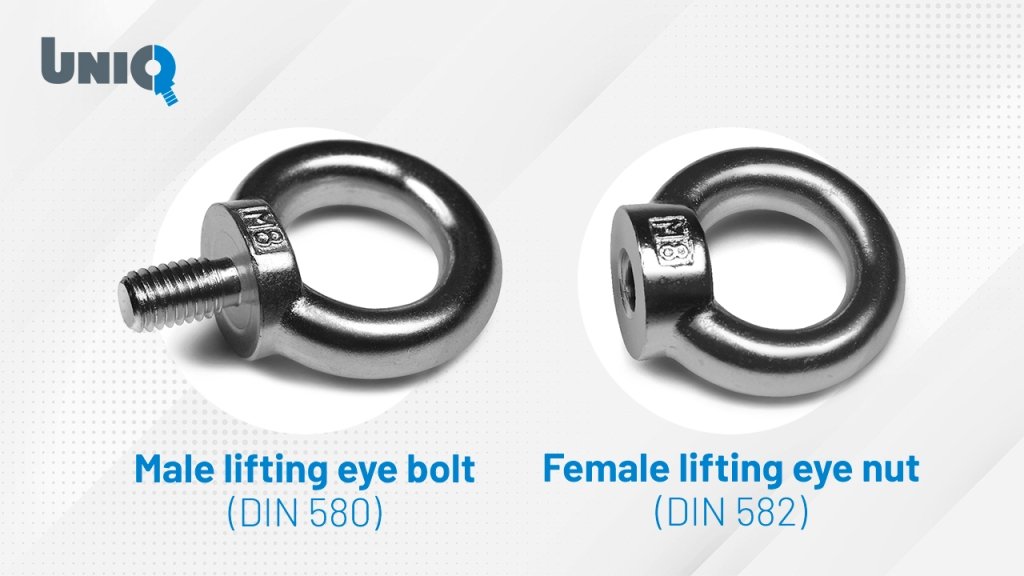

Differences Between Male and Female Lifting Eye Bolts
Identification and Function
Male and female lifting eye bolts represent two fundamental variants within the family of industrial lifting points. Choosing between them depends on the design of the component to be lifted, the type of attachment available, and the operating conditions of the lifting system.
The male lifting eye bolt (DIN 580) features a threaded shank that screws directly into a tapped hole in the load or into a pre-threaded mounting surface. This configuration provides a compact, robust, and permanent solution, ideal when the component being lifted includes a properly machined and threaded hole capable of bearing the working load.
The female lifting eye nut (DIN 582), by contrast, includes an internal thread, allowing it to be installed onto an existing stud or bolt. This design offers greater flexibility, particularly in assemblies where the lifting point must be frequently mounted and removed, or when the structure already incorporates a protruding threaded element.
Ultimately, the decision between a DIN 580 and a DIN 582 lifting point depends on three main factors:
the geometry and design of the component to be lifted,
the type of fixation available (threaded hole or external stud), and
the frequency of use or reassembly required in the lifting operation.
When to Choose Each Type of Lifting Eye
Selecting the correct lifting eye bolt or nut is critical to ensure both operator safety and load integrity.
If the part to be lifted is equipped with a standard threaded hole, the DIN 580 male lifting eye bolt is the most direct, compact, and secure choice. Its integrated shank ensures optimal alignment and minimizes the risk of thread misfit.
If, on the other hand, the component includes a fixed stud or bolt, or if you need a removable connection, the DIN 582 female lifting eye nut provides higher adaptability. It can be quickly mounted or replaced without altering the existing structure.
In both cases, proper installation depends on:
Sufficient thread engagement depth to guarantee mechanical strength,
Accurate alignment of the threaded hole or stud, and
Adequate access for tightening with the correct torque tools.
These factors directly influence the safety, durability, and load-bearing performance of the lifting assembly.
Rotating vs. Fixed Lifting Points: Orientation and Safety
Beyond the choice of thread type, lifting eyes can also be classified as fixed or rotating, depending on the nature of the load and the direction of pull.
Fixed lifting eyes
These are recommended for vertical lifting operations, where the pulling direction remains constant and no side load is applied. Fixed lifting points are ideal for static applications, straight lifts, or simple handling tasks where alignment changes are minimal.
Rotating or swivel lifting points
These are designed to pivot or rotate according to the load angle, automatically aligning the ring with the direction of tension. By doing so, they reduce side stresses, bending moments, and undesired friction on the threads or body. Swivel or tilting lifting rings significantly improve both safety and durability, particularly in multi-directional lifting, angled hoisting, or dynamic industrial environments.
In short, choosing the correct type—male or female, fixed or rotating—ensures safer, more efficient lifting operations that comply with the DIN 580 and DIN 582 standards for mechanical anchoring and load handling.
Types, Materials, and Mounting Systems of Lifting Eye Bolts
Common Materials Used in Lifting Eye Bolts

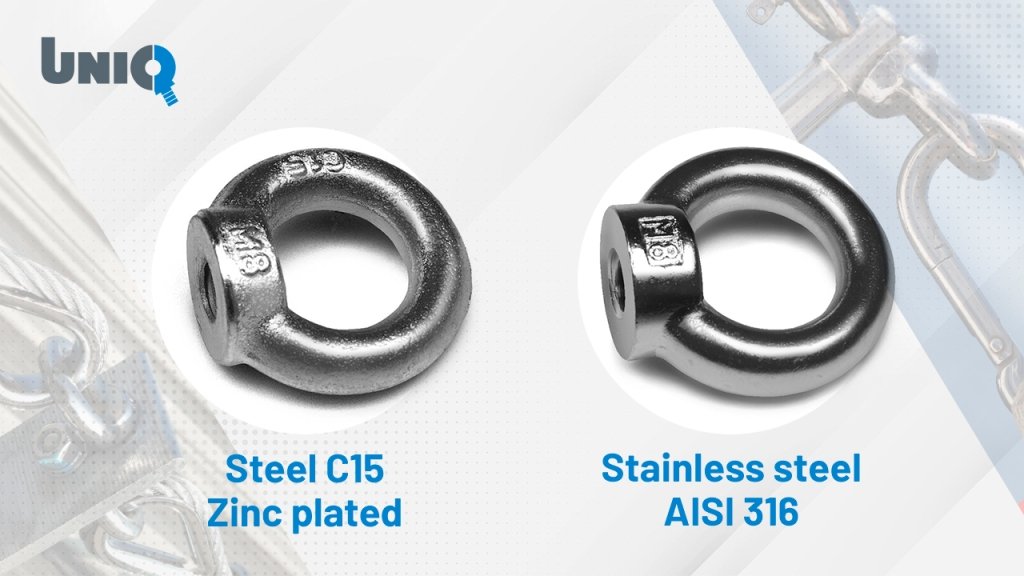

In industrial applications, lifting eye bolts and lifting eye nuts are primarily manufactured from high-tensile forged steel or alloy steel, materials chosen for their excellent load-bearing capacity and fatigue resistance under dynamic lifting conditions.
To extend their service life, these components are typically subjected to heat treatment processes that optimize mechanical performance and to anti-corrosion surface coatings—such as zinc or hot-dip galvanizing, electroplating, or technical protective paints—especially recommended when the lifting points are used in outdoor or aggressive environments exposed to moisture or chemical agents.
For marine, chemical, or food-grade applications, where humidity, salt, or corrosive agents are constant, stainless steel lifting points are preferred. Their high resistance to oxidation and low maintenance requirements make them ideal for installations demanding long-term reliability and hygiene compliance.
In short, the right material selection—whether forged carbon steel, alloy steel, or stainless steel (AISI 304 / AISI 316)—directly impacts the durability, safety, and corrosion resistance of the entire lifting system.
Thread Types and Installation Parameters
The threads of DIN 580 lifting eye bolts and DIN 582 lifting eye nuts are manufactured according to the ISO metric standard (for example, M10, M12, M16, M20), ensuring full compatibility with industrial components worldwide.
For a safe installation, the base material must provide the minimum thread engagement depth specified by the manufacturer. Insufficient engagement or mismatched thread types can severely reduce the pull-out strength and compromise safety.
The tightening torque is another critical parameter: it must always be applied in accordance with the manufacturer’s torque recommendations, since excessive or insufficient torque directly affects the mechanical integrity and tensile resistance of the assembly.
In the case of UNIQ lifting points by Damesa, recommended torque values range between 3.5 N·m and 1,981 N·m, depending on the model and thread size.
💡 Professional tip: never tighten “by feel.” Always use a calibrated torque wrench and refer to the technical documentation or product data sheet to confirm the correct torque value for each specific eye bolt.
Strength, Steel Grades, and Certified Load Capacity (WLL / CMU)

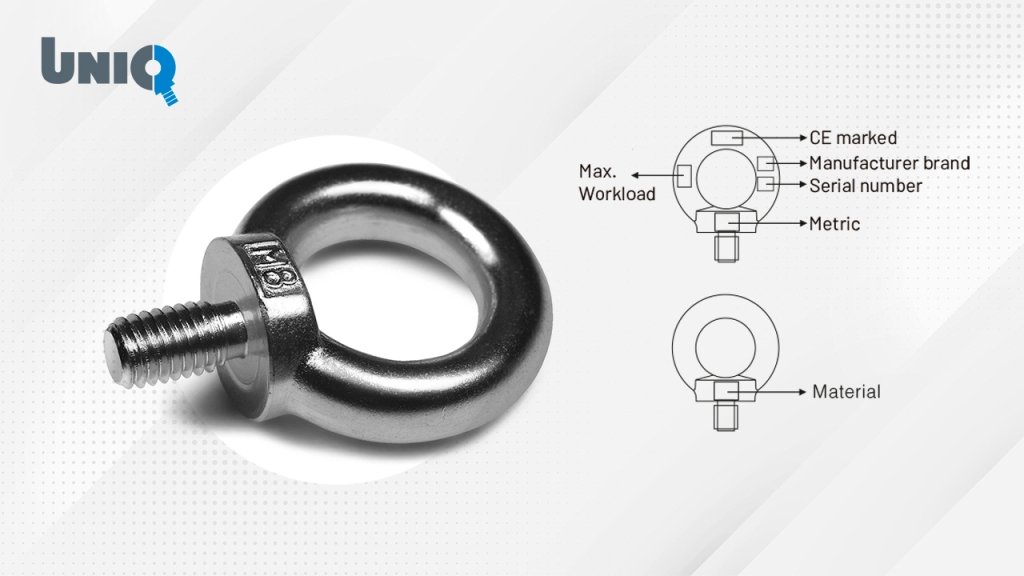

Some lifting eye bolts indicate the steel grade used in manufacturing—typically Grade 8 or Grade 10—which reflects the material’s tensile properties and mechanical strength. However, the most critical parameter for product selection is the WLL (Working Load Limit), also referred to as CMU (Carga Máxima de Utilización).
The WLL defines the maximum certified load that the lifting point can safely sustain under normal operating conditions, as determined and validated by the manufacturer through testing and conformity assessment.
Avoid relying on estimated or unverified values: every lifting point, whether DIN 580 or DIN 582, must feature a legible identification marking and be accompanied by official technical documentation or a Declaration of Conformity that confirms compliance with applicable industrial safety standards (such as the Machinery Directive 2006/42/EC, CE marking, and relevant DIN / ISO specifications).
Using only certified lifting eye bolts with traceable WLL markings ensures legal compliance, operator safety, and reliable performance in all professional lifting operations.
How to Choose the Right Lifting Eye (DIN 580 / DIN 582)
Selecting the correct lifting eye bolt or eye nut is essential to ensure lifting safety, system durability, and compliance with industrial standards. Below is a step-by-step technical procedure to help you specify the right model according to the load, environment, and operating conditions.
Step-by-Step Technical Selection Criteria
1) Determine the actual load weight
Include all associated elements—fixtures, tooling, temporary frames or pallets. Any omission can lead to dangerous overloads versus the certified WLL/CMU.
2) Evaluate the lifting angle
If the pull is not perfectly vertical, the effective capacity of the lifting point decreases. For angular pulls or multi-leg slings, select a rotating / swivel lifting point (tilting hoist ring) to keep the ring aligned with the direction of force.
3) Identify the available fixation
Confirm whether the load has a tapped hole (use male lifting eye bolt, DIN 580) or a protruding stud/bolt (use female lifting eye nut, DIN 582). The existing interface defines the required threaded connection.
4) Verify the thread metric and engagement
Confirm the ISO metric thread (e.g., M10, M12, M16, M20…) is compatible with the base material and that the usable thread depth meets the manufacturer’s minimum engagement requirements.
5) Analyse the working environment
Corrosion, temperature, humidity, vibration, and chemical exposure may require specific materials and coatings (e.g., stainless steel AISI 304/316 or galvanized finishes).
6) Check system compatibility
Ensure the eye inner diameter and clearance are compatible with the selected sling or shackle—verify fit, free movement, and that no binding occurs during rotation or under load.
7) Verify the technical documentation
Confirm CE marking, a certified WLL/CMU, and an up-to-date manufacturer’s data sheet with installation instructions (including tightening torque and inspection guidance).
8) Plan maintenance and inspection
Define a documented inspection plan: pre-use checks and periodic technical inspections at defined intervals. This maintains traceability and ongoing safety for the lifting equipment.
Applicable Standards and Regulations
Within Spain and the European Union, lifting accessories must meet the requirements of the Machinery Directive 2006/42/EC, especially when they form part of a lifting or load-handling system. The Directive requires CE marking and a Declaration of Conformity issued by the manufacturer.
Common technical references include:
These standards define dimensions, tolerances, materials, and load requirements to guarantee the safety and interchangeability of industrial lifting points.
Periodic Inspections and Retirement Criteria
Visual and functional inspection is a core part of preventive maintenance for lifting eyes. Establish a pre-use check before every lift and a scheduled technical inspection documented under your company’s safety procedures.
Pre-use checks (before each lift)
Threads clean, undamaged, and fully engaging
Eye rotates/tilts freely if the design allows (swivel/tilting models)
CE mark and WLL are legible, intact, and match the documentation
Periodic inspection — remove from service if any of the following are found
Damaged or worn threads (male or female)
Visible deformation of the body or eye/ring
Severe corrosion or surface cracks
Use outside certified conditions: overload, excessive lifting angle, unsuitable environment, or any deviation from the manufacturer’s specification
Safety note: Correct tightening torque must always be applied using a calibrated torque wrench and the manufacturer’s stated value. Do not proceed if torque data is missing—obtain official confirmation first. Incorrect torque can cause loosening, thread damage, or failure under load.
Tightening Torque: A Critical Safety Parameter
The tightening torque must always be applied with no load on the lifting point and strictly in accordance with the value specified in the manufacturer’s technical data sheet. This value is decisive to ensure the threads work correctly, preventing both loosening and failure due to excessive tensile stress.
⚠️ Warning: If the manufacturer does not state a torque value, do not proceed with installation until you obtain official confirmation.
Applying an incorrect torque can compromise the safety of the lifting point and the stability of the entire lifting operation. Always use a calibrated torque wrench and record the torque applied as part of your maintenance documentation.
Typical Applications Across Industrial Sectors
Lifting eye bolts and lifting eye nuts are essential in many industries where heavy loads must be handled, assembled, or transported safely and with full operational control.
Their versatility, strength, and compatibility with different attachment systems (slings, shackles, hooks) make them a standard lifting accessory in areas such as machinery manufacturing, structural steel and modular construction, industrial maintenance, and heavy logistics.
Machinery Manufacturing
In machinery and tooling production, male lifting eye bolts (DIN 580) are frequently used to lift molds, housings, and metal sub-assemblies during assembly. Because they screw directly into the mold body or tapped component, they provide a robust and secure anchoring point with minimal protrusion.
👉 In this environment, it is critical to verify:
the tightening torque applied,
the effective thread engagement depth, and
the alignment of the lifting point,
to ensure a stable, twist-free lift and to protect both personnel and equipment.
Structural Steel and Modular Builds
In structural steelworks and modular or prefabricated assemblies, female lifting eye nuts (DIN 582) are commonly installed on embedded studs. They allow vertical or inclined lifts from the workshop to the job site, providing a versatile and reusable attachment solution.
Their use is especially common for the transport and installation of structural frames, beams, and platforms that require controlled crane movements with reliable, repeatable connection points.
By ensuring correct installation torque and alignment, DIN 582 lifting eye nuts enable efficient and repeatable lifting operations that comply with the DIN standards for industrial lifting points.
Industrial Maintenance
During maintenance, repair, or replacement operations involving heavy components, swivel lifting eye bolts are the ideal choice. Their ability to align automatically with the direction of the load eliminates lateral stresses and significantly improves safety during angled or complex lifting maneuvers.
These lifting points are commonly used to raise industrial motors, compressors, and pumps, where precision and load stability are critical. So, by allowing full rotational alignment, swivel lifting rings help to prevent twisting forces on the threaded connection, thereby extending the life of the lifting equipment and machine components.
Heavy Load Handling and Industrial Logistics
In the industrial logistics and heavy transport sector, male lifting eye bolts (DIN 580) are widely used for the lifting of containers, frames, skids, and unitized loads using crane hooks or chain slings.
In these operations, it is crucial to check the pulling angle, the type of sling employed, and the compatibility between the eye diameter and the chosen lifting accessories. Proper selection ensures that the lifting forces are evenly distributed and that the entire system—from the lifting point to the crane hook—functions safely under rated load conditions.
The Importance of Technical Evaluation
Choosing the right lifting eye bolt or nut requires assessing multiple technical factors—not only thread size or diameter.
You must consider:
The weight of the load,
The working angle of the lift,
The material and environmental conditions (temperature, humidity, corrosion),
The compatibility with slings and shackles, and
The correct installation and periodic inspection procedures.
Applying these criteria rigorously enhances safety, reduces operational risks, and extends the service life of the entire lifting system.
UNIQ by Damesa: Certified Reliability for Demanding Industrial Lifting
All these technical and safety requirements are fully met by the UNIQ range from Damesa, which provides officially certified lifting solutions for use in demanding industrial environments.
Designed for maximum reliability and strength, UNIQ lifting eye bolts and eye nuts are supplied with comprehensive technical documentation, CE marking, and are available in both male (DIN 580) and female (DIN 582) configurations to suit any application.
Discover UNIQ lifting points in Damesa’s Private Area, where you can access technical data sheets, certificates, and personalized assistance to select the safest, most efficient, and most durable lifting solution for your industrial operations.
See you in the next blog post!
