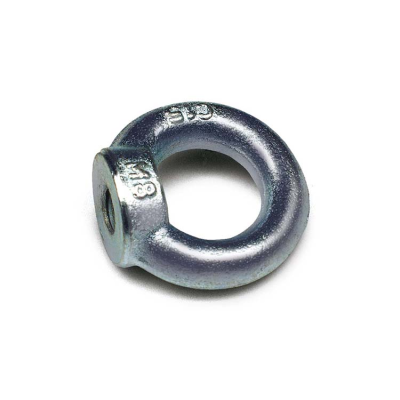

DIN 582 lifting eye nut

Steel

The use of lifting eye nuts is especially recommended when the load to be lifted or lashed has a perfectly flat surface.

The lifting eye nut is joined to the unit to be lifted or lashed by bolting the eye to the unit via the threaded section thereby guaranteeing a perfect join between both parts and ensuring that the unit can be lifted or lashed safely.

INSTRUCTIONS: In order not to compromise safety, the SWL working load of each metric bolt should never be exceeded.

What material do you need?

Stainless steel AISI 316

Steel

Brochure-AEH.pdf

Download |

Material:
Steel C15

Finish:
Zinc plated

All references

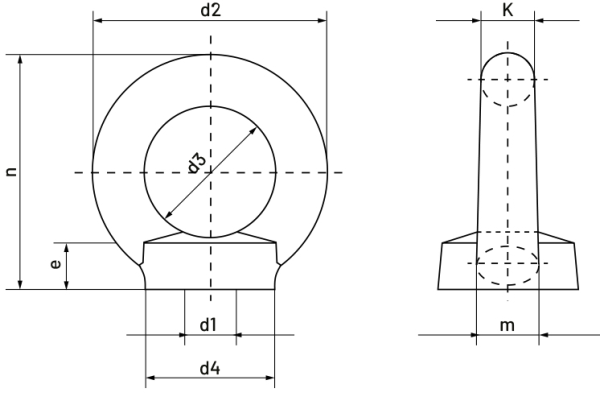

Part number	Thread d1 Dimension	Denomination	d2	d3	d4	n	e	K	m	Axial Working Load - W.L.L. (kg)	Box Quantity	Outer Box Quantity
09522816	M6	AEH106	36	20	20	36	8.5	8	10	90	100	400
09522824	M8	AEH108	36	20	20	36	8.5	8	10	140	100	400
09522832	M10	AEH110	45	25	25	45	10	10	12	230	100	300
09522840	M12	AEH112	54	30	30	53	11	12	14	340	100	100
09522859	M14	AEH114	63	35	35	62	13	14	16	500	50	50
09522867	M16	AEH116	63	35	35	62	13	14	16	700	50	50
09522875	M18	AEH118	72	40	40	71	16	16	19	930	50	50
09522883	M20	AEH120	72	40	40	71	16	16	19	1200	50	50
09522891	M22	AEH122	81	45	45	80.5	18	18	21	1500	25	25
09522904	M24	AEH124	90	50	50	90	20	20	24	1800	25	25
09522912	M27	AEH127	96	53	55	97	22	21.5	25	2500	10	10
09522920	M30	AEH130	108	60	65	109	25	24	28	3600	10	10
09522939	M36	AEH136	126	70	75	128	30	28	32	5100	1	4
09522947	M42	AEH142	144	80	85	147	35	32	38	7000	1	4
09522955	M48	AEH148	166	90	100	168	40	38	46	8600	1	1

All references

Part number	Thread Metric d1 Dimension	Denom.	d2	d3	d4	n	e	K	m	Axial Working Load - W.L.L. (kg)	Box Quantity	Outer Box Quantity
09525240	M6	AHI 106	27	16.5	16.5	28	6	6	8	80	10	160
09525259	M8	AHI 108	35	20	19	33	8.5	7.3	10	150	10	160
09525267	M10	AHI 110	44	25	24	42	10	9.2	10.5	250	10	160
09525275	M12	AHI 112	53	30	29	51	11	11.3	12.5	370	5	80
09525283	M14	AHI 114	54	30	29	53	11	12	14	540	5	40
09525291	M16	AHI 116	62	35	34	60	13	13.3	15	770	1	16
09525179	M18	AHI 118	71	39	39	71	14	16.5	18	930	1	16
09525304	M20	AHI 120	70	40	39	68.5	15	15.3	18	1320	1	16
09525312	M24	AHI 124	88.5	50	49	88.5	20	19	22	1700	1	8
