Easy Guide to Installing & Maintaining Wire Rope Clips

When dealing with industrial projects involving steel cables for lifting or securing loads, choosing the right accessories is crucial for ensuring stability and safety. Among these components, wire rope clips stand out as essential elements.

This complete guide explains what wire rope clips are, describes various types such as DIN 741 and U.S. model, as well as other variants suited for specific use cases.

We'll also offer expert insights into best practices for installation, maintenance routines to extend product life, and tips for choosing the ideal clip based on your project requirements.

What Is a Wire Rope Clip?

A wire rope clip is a metal accessory used to securely fasten the end of a steel cable, creating a secure loop that can be attached to other elements like hooks, shackles, or thimbles. This connection facilitates lifting, tensioning, and stabilizing heavy loads across various industrial sectors.

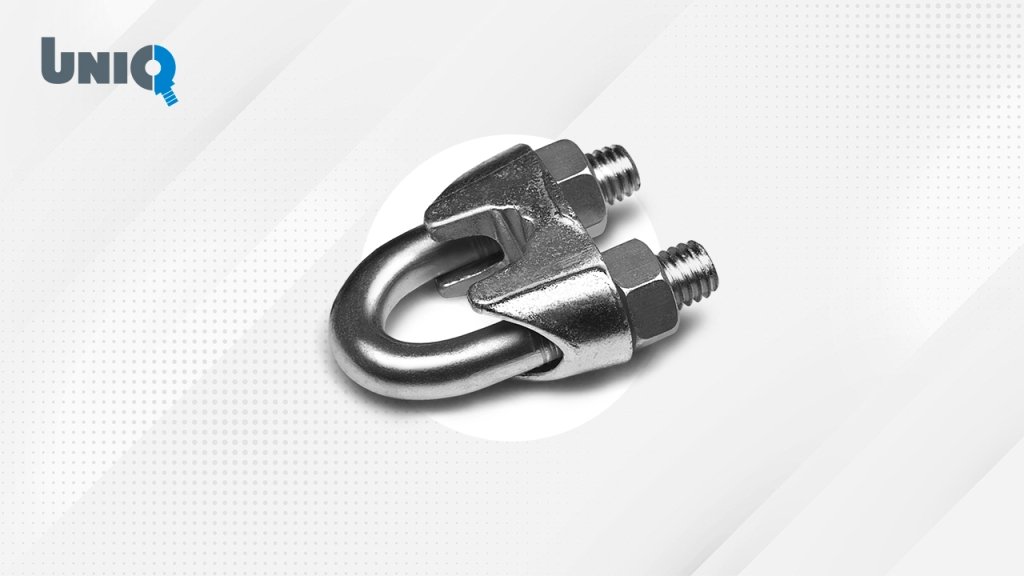

Each wire rope clip consists of three fundamental parts:

• Saddle: The portion that directly compresses against the live end of the cable (the load-bearing section).
• U-Bolt: A curved bolt that holds the dead end of the rope.
• Nuts: These are used to tighten the U-bolt and secure the clip in place.

Proper installation is absolutely essential. Not only does it uphold the mechanical strength of the connection, but it also plays a major role in accident prevention and compliance with safety regulations.

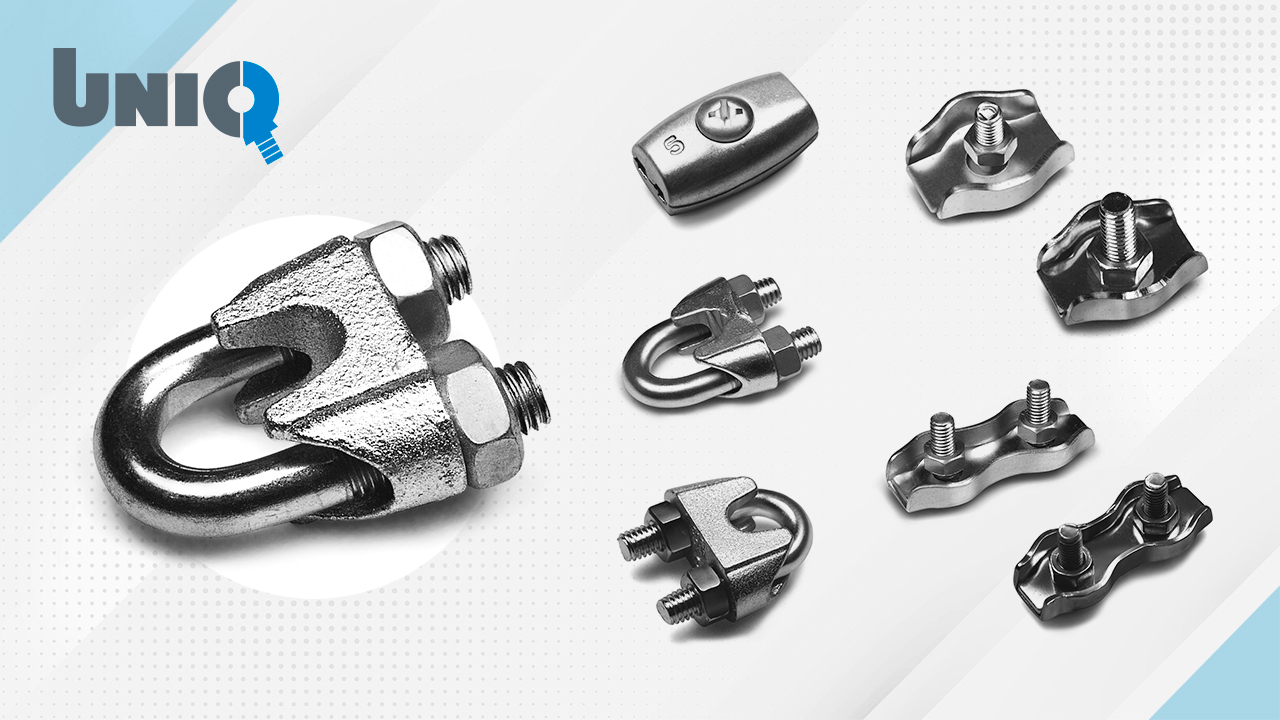

Types of Wire Rope Clips: Which Is Right for Your Project?

Understanding the different types of wire rope clips is key to making an informed decision that aligns with your operational environment and load requirements.

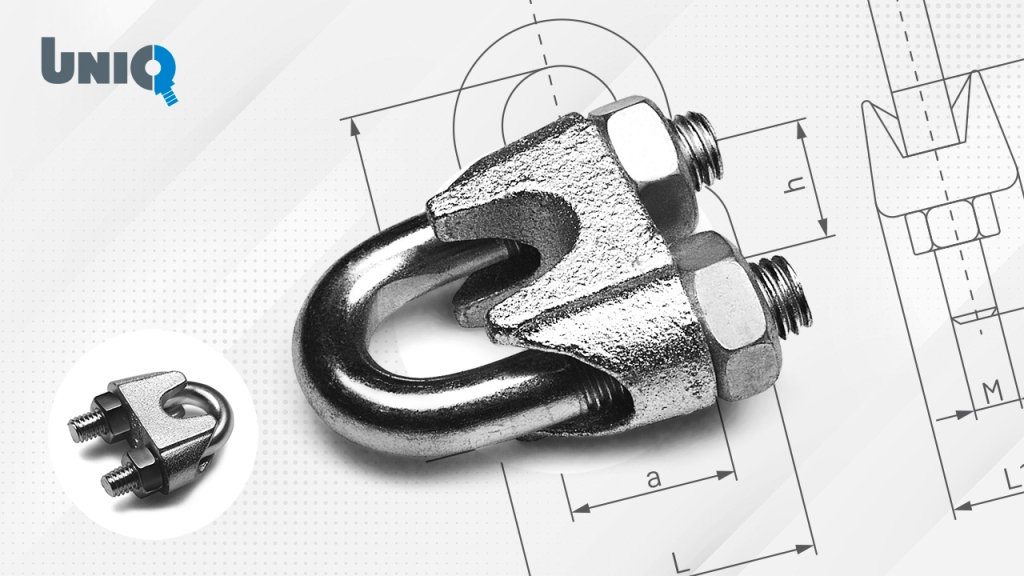

1. DIN 741 Wire Rope Clips

The DIN 741 is one of the most recognized and widely adopted standards in wire rope hardware. These clips are precision-engineered to meet stringent German industrial norms. They come in two main finishes:

• Galvanized Steel: Suitable for general-purpose use in less corrosive environments.
• Stainless Steel: Ideal for marine, coastal, or humid conditions where corrosion resistance is a priority.

Their standardization guarantees consistent performance, quality, and durability, making them a trusted choice across industries.

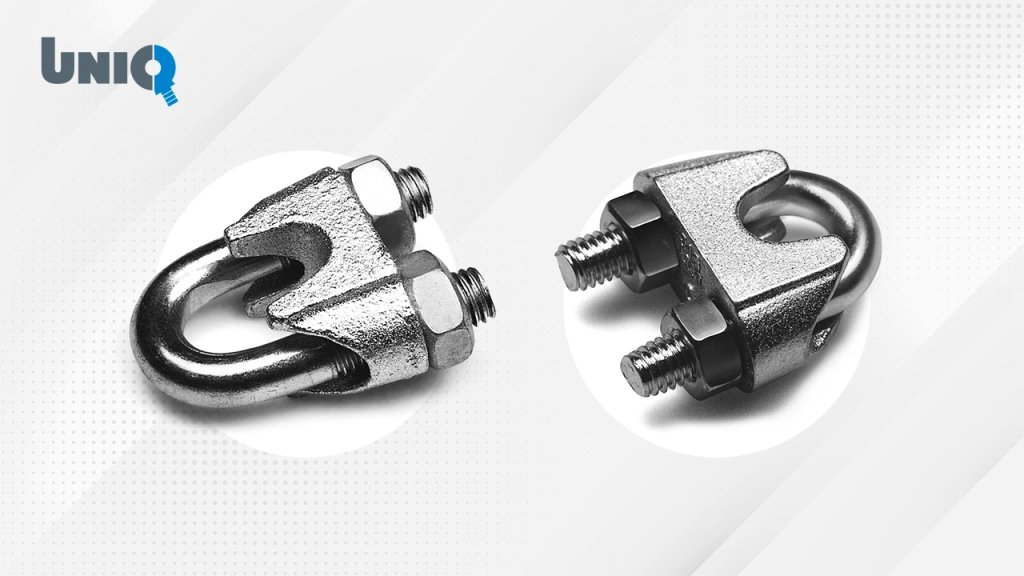

2. U.S. Type Wire Rope Clips

Popular within the U.S. market and known for their robust construction, U.S. wire rope clips offer an enhanced structural profile. These clips are manufactured with a higher steel volume, granting them increased resistance to deformation and mechanical stress.

A unique feature of these clips is their pronounced body ridges or serrations, which offer an improved grip on the cable, effectively minimizing slippage under tension.

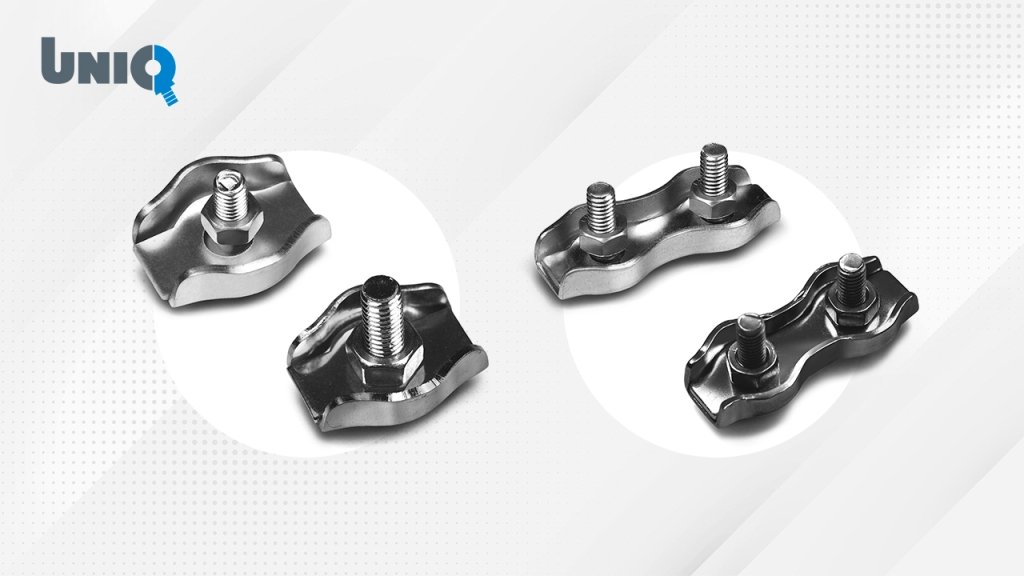

3. Single and Double Flat Cable Clips

In applications where visual discretion is important, such as architectural installations or exhibition setups, flat cable clips provide a sleek alternative:

• Simple Wire Rope Clip: Provides a subtle and neat solution.
• Double Wire Rope Clip: Offers enhanced strength, ideal for reinforced fittings.

These clips strike a balance between aesthetics and reliability.

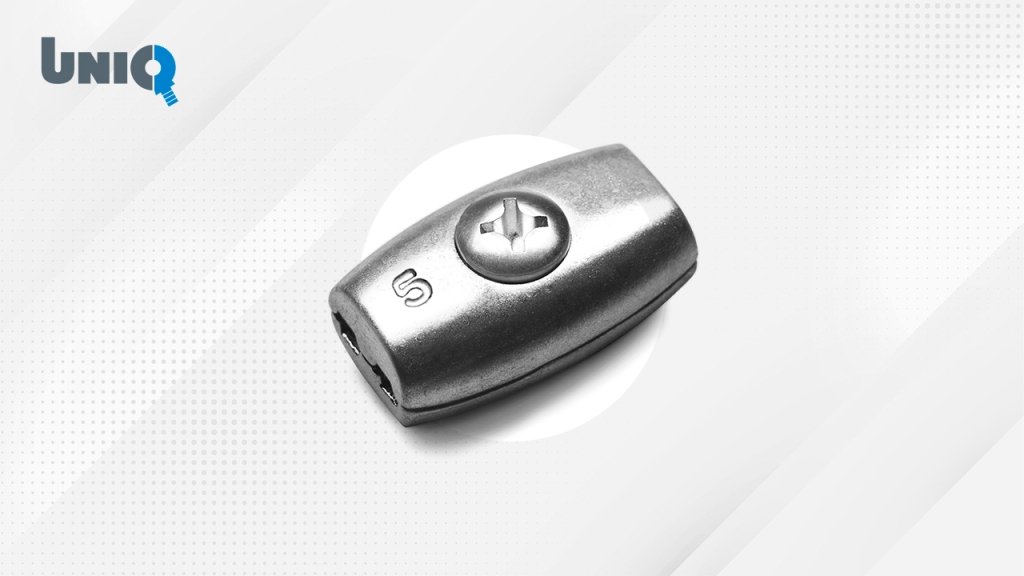

4. Oval Wire Rope Clips

Oval clips are known for their versatile design and aesthetic finish.

Their compact form makes them ideal for modern, space-constrained applications where clean lines and unobtrusive components are desirable. At the same time, they maintain high tensile strength, ensuring they can handle demanding loads.

How Many Wire Rope Clips Do You Need Based on Cable Diameter?

Choosing the correct number of wire rope clips for a given cable diameter is essential for load integrity. Too few clips can lead to slippage or failure, while an excessive number might unnecessarily complicate installation.

Here is a general guideline:

• Less than 3mm diameter: At least 2 clips.
• Between 5 and 6.5mm diameter: At least 3 clips.
• Between 8 and 19mm diameter: At least 4 clips.
• Over 20mm diameter: Consult specific wire rope clip reference tables or the product’s technical datasheet.

Remember that these are baseline figures. The application, working load, and safety factor may necessitate adjustments.

Always prioritize manufacturer guidelines and industry best practices.

Step-by-Step Installation Guide for Wire Rope Clips

Follow these detailed steps to ensure a secure and compliant installation of your wire rope clips:

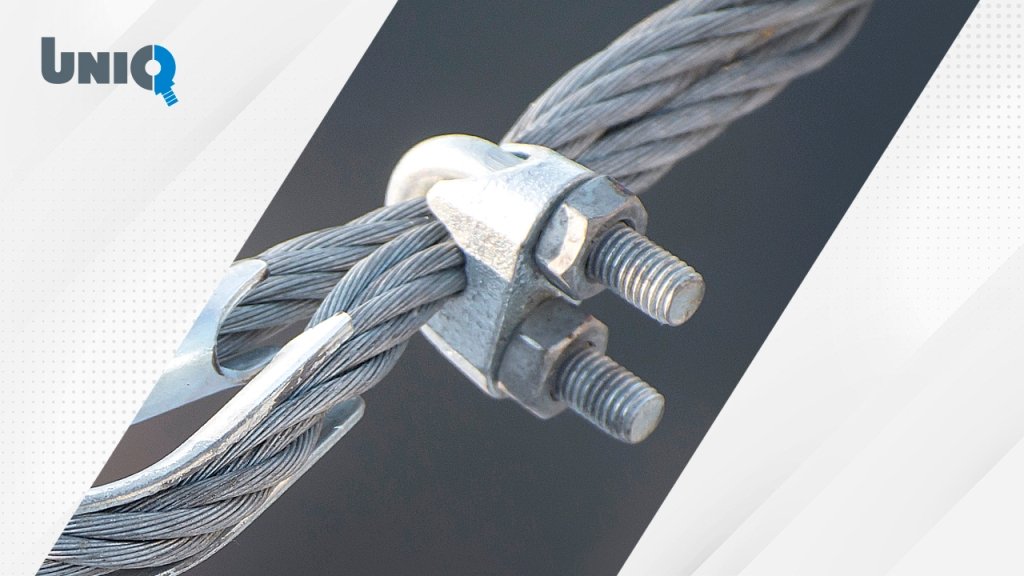

1. Initial Placement: Begin by placing the first clip near the thimble or terminal fitting. Leave enough space to ensure initial structural stability.
2. Second Clip: Install the second clip as close to the thimble as possible. This clip should firmly secure the dead end of the wire rope.
3. Intermediate Clip(s): If more clips are needed, insert them evenly spaced between the first two. Symmetry improves load distribution.
4. Tighten the Nuts: Apply the recommended torque using an accurate wrench. After applying the load for the first time, check all nuts again and tighten them if necessary.

Important: Always position the saddle over the load-bearing cable and the U-bolt over the free end. This rule is often summarized as "Never saddle a dead horse".

Extra-Tip: Maintain a minimum distance between clips equal to six times the diameter of the cable. Proper spacing is crucial for evenly distributing the load.

For detailed visual guidance, check our full installation tutorial:

Preventive Maintenance for Wire Rope Clips

Regular inspection and maintenance are key to ensuring ongoing performance and safety. We recommend the following routine checks:

• Visual Inspections: Look for signs of corrosion, wear, or deformation.
• Torque Checks: Ensure that all nuts remain adequately tightened, particularly after heavy use or vibration-intensive operations.
• Replacement: If a clip shows any sign of compromised integrity, replace it immediately to avoid risk.

Scheduled maintenance helps prevent accidents and extends the lifespan of your lifting or securing system.

UNIQ Wire Rope Clips: The Ideal Choice for Professionals

In environments where safety is non-negotiable, professionals rely on certified, durable products. Our UNIQ line of wire rope clips delivers exactly that—industrial-grade strength, reliability, and peace of mind.

Available in multiple finishes, including high-resistance stainless steel, UNIQ clips are manufactured under rigorous quality controls. They are ideal for harsh environments like shipyards, construction sites, and offshore platforms.

When choosing UNIQ, you’re investing in performance and trust.

Your Project Deserves the Best Wire Rope Clips

Choosing the right wire rope clip, proper installation, and regular maintenance guarantees the safety and success of your industrial projects.

For expert advice or to explore our entire range of UNIQ wire rope clips and lifting accessories, please complete our contact form or log into our exclusive client portal.

We are here to help you find the perfect solution for your project.
