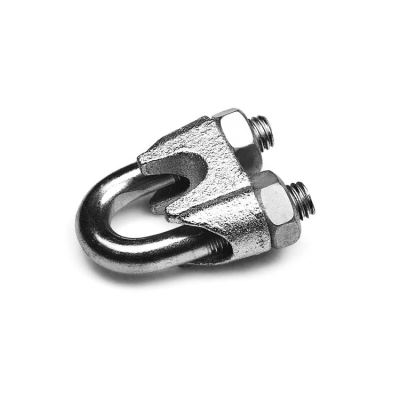

DIN 741 wire rope clip

Stainless steel AISI 316 - With blister pack

The DIN 741 stainless steel wire rope clip (AISI 316) is designed to DIN 741 standards, ensuring precise manufacturing, tolerances, load capacity and safety. Unlike the U.S.-style wire rope clip, this version has a standardised design, making it compatible with applications requiring traceability and regulatory compliance.

Its malleable structure enables the creation of loops or temporary connections between steel cables, which is useful when crimping or fixed terminals are not feasible. Supplied in tamper-proof blister packaging, it is ideal for technical hardware stores, nautical self-service shops, and demanding industrial installations.

A reliable choice for professional projects that require strength, durability and documented technical compliance.

Designed in accordance with DIN 741:
The design provides dimensional accuracy, international compatibility and clearly defined technical criteria. A popular choice in sectors that require component approval or technical documentation.

Clear Size Identification:
The size is marked directly on the bridge to facilitate error-free selection in workshops, on site and at the point of sale.

Recommendations for use:

The body of the wire rope clip (the part with the nuts) must always be installed on the active part of the wire (the part that supports the load).
Once initial tension has been applied, the nuts must be re-tightened to ensure a secure grip.
Spacing between wire rope clips should be at least 6 times the diameter of the cable.

Steel

The malleable structure of the wire rope clip is intended to make wire rope eyes or connections between wires where the wires cannot be crimped, or where temporary wire ends or links cannot be used. All wire rope clips are marked with the corresponding size on the outer side of the bridge, thus facilitating their identification.

TIPS: Wire rope clips must be retightened after the wire has been pulled the first time. The body of the wire rope clip must be assembled on the active part. The spacing between wire rope clips must be 6 mm x the wire diameter.

Stainless steel AISI 316 - Without blister pack

The malleable structure of the wire rope clip is intended to make wire rope eyes or connections between wires where the wires cannot be crimped, or where temporary wire ends or links cannot be used.

It is perfect for aesthetic assemblies.

TIPS: As it is made of AISI-316 stainless steel, it guarantees a high corrosion resistance, essential for its application in marine environments.

What material do you need?

Stainless steel AISI 316

Steel

Brochure-SCG.pdf

Download |

Material:
Body - Malleable steel
Fork - Steel c15

Finish:
Galvanized

All references

Part number	Wire Ø (mm)	Denom.	M	A	B	C	L	K	T	Box Quantity	Outer Box Quantity
B9524150	4	Blister	M4	12	9	22	18.5	10.5	10	2 u. x Blister	10 x Box
B9524168	5	Blister	M5	13	11	23	19	11	11	2 u. x Blister	10 x Box
B9524176	6	Blister	M5	15	13	26	23	11	11	2 u. x Blister	10 x Box
B9524184	8	Blister	M6	19	16	30	28	15.5	13.5	1 u. x Blister	10 x Box
B9524192	10	Blister	M8	22	19	34	34	16.5	17.5	1 u. x Blister	5 x Box

Part number	Dimension Wire Ø	Denomination	M	a	H	L	h	E	L1	Installation SFE No.	Box Quantity	Outer Box Quantity
09520010	3	SCG103	M4	9	16	21	10	12	10	2	200	2000
09520027	4	SCG104	M4	9	18.5	21	10	12	10	3	200	2000
09520028	5	SCG105	M5	11	19	23	10	13	11	3	200	1600
09520036	6	SCG106	M5	13	23	26	11	15	12	3	100	800
09520044	8	SCG108	M6	16	28	30	15	19	14	4	100	800
09520052	10	SCG110	M8	19	34	34	17	22	18	4	100	400
09520060	11	SCG111	M8	20	36	36	18	22	19	4	100	400
09520079	13	SCG113	M10	24	45	42	21	30	23	4	100	100
09520087	14	SCG114	M10	25	47	44	22	30	23	4	50	200
09520095	16	SCG116	M12	29	51	50	26	33	26	4	50	150
09520108	19	SCG119	M12	32	63	54	30	38	29	4	25	100
09520124	22	SCG122	M14	37	71	61	34	44	33	5	15	60
09525697	26	SCG126	M14	41	81	65	37	45	35	5	15	45
09525700	30	SCG130	M16	48	94	74	43	50	37	6	10	30
09525865	34	SCG134	M16	52	104	80	50	55	42	6	10	30
09520167	40	SCG140	M16	58	124	88	55	60	45	6	5	20
09520175	45	SCG145	M18	65	148	112	65	65	49	8	5	5
09520183	50	SCG150	M20	74	152	121	67	67	51	8	5	5

All references

Part number	Wire Ø (mm)	Denom.	M	A	B	C	L	K	T	Installation SFE No.	Box Quantity	Outer Box Quantity
09524131	2	SCI 102	M3	10	6.6	18.5	15	9	8.3	2	50	400
09524142	3	SCI 103	M4	12	9	21	16	9.6	9.6	2	50	400
09524150	4	SCI 104	M4	12	9	22	18.5	10.5	10	3	40	320
09524168	5	SCI 105	M5	13	11	23	19	11	11	3	40	640
09524176	6	SCI 106	M5	15	13	26	23	11	11	3	20	160
09524184	8	SCI 108	M6	19	16	30	28	15.5	13.5	4	20	160
09524192	10	SCI 110	M8	22	19	34	34	16.5	17.5	4	10	80
09524205	11	SCI 111	M8	22	20	36	36	18	18.5	4	10	80
09524213	14	SCI 114	M10	30	25	44	47	22	22.4	4	5	80
09524221	16	SCI 116	M12	33	29	50	61	26	25.5	4	5	80
09524248	19	SCI 119	M12	38	32	54	63	28.5	29	4	5	80
09524256	22	SCI 122	M14	44	37	61	71	34	33	5	1	16
09524264	26	SCI 126	M14	45	41	65	81	34	34	5	1	16
09524272	30	SCI 130	M16	51	48	74	94	41	36	6	1	16
