How to install different types of UNIQ wire rope clips

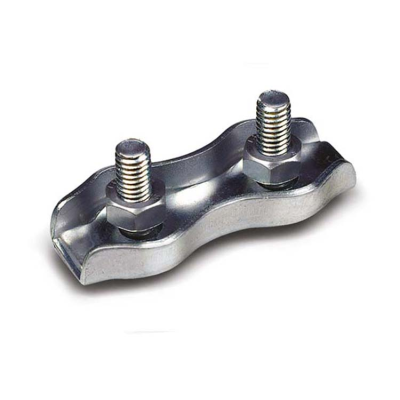

Double wire rope clip

Name: Double wire rope clip
Brand: uniq

Stainless steel AISI 316 - With blister pack

This double flat wire rope clip in galvanised steel provides an effective and reliable way to secure steel cables quickly and safely, while ensuring a clean finish. Its design features a flat pressure plate that is tightened by two nuts, providing a significantly stronger grip than single clamp systems. Supplied in a tamper-proof blister pack, it is ideal for professional hardware stores and self-service retail.

It is recommended for installations where safety, discreet aesthetics and ease of assembly are priorities.

Stable and uniform clamping:
Thanks to its dual-bolt configuration and flat plate, this clamp delivers longer, more even pressure along the cable, greatly enhancing stability compared to single-bolt wire clips.

Quick and Neat Installation:
Ideal for projects where cable joints need to be visually unobtrusive without compromising mechanical strength. Its galvanised steel body makes it perfect for metal fencing, urban furniture and light structural cabling.

Usage Tips:
After tensioning the cable for the first time, it is recommended that you re-tighten the nuts to ensure a secure hold and prevent slipping due to system settling.

Steel

The duplex wire rope clips ensure a quick assembly and increase safety and efficiency compared to the simplex wire rope clip. Its main advantage is a plate that is tightened with two nuts, thus imprisoning the wire in the longer structure.

It is especially used when working with aesthetic assemblies where the joints need to go unnoticed.

TIPS: Wire rope clips must be retightened after the wire has been pulled the first time.

What material do you need?

Stainless steel AISI 316

Steel

Brochure-SPD.pdf

Download |

Material:
Steel c15

Finish:
Zinc plated

All references

Other products that may interest you

DIN 580 lifting eye bolt

DIN 582 lifting eye nut

DIN 741 wire rope clip

Wire rope clip U.S. type

DIN 1480 turnbuckles, hook/eye

D-Shackles

DIN 11024 R-clip

Center axle pin

Linchpin DIN 11023

Wire rope gripper UNILOQ

DIN 6899/A wire rope thimble

Round wire rope thimbles

S-hooks

Welded ring

Double swivel shackle

Twisted shackles

Turnbuckle threaded rod end piece

Long eye bolt with washer and nut

Turnbuckle eye end piece

Turnbuckle jaw end piece

Lifting hook with lock

Din 689 lifting hook with safety latch

Carbon steel lifting hook with safety latch

Alloy steel lifting hook with safety latch

Connecting links

Swivel hook with safety latch

Grade 80 eye self-locking hook

Grade 80 clevis self-locking hook

Grade 80 swivel self locking hook

Oblong master link

Master link assembly

DIN 3093 Aluminium ferrule

Simple wire rope clip

Oval wire rope clip

Wire-stretcher

DIN 1480 turnbuckles, hook/hook

DIN 1480 turnbuckles, eye/eye

DIN 1478 turnbuckle jaw/jaw

DIN 1480 turnbuckle welding rod

DIN 1480 turnbuckle jaw/eye

DIN 1478 closed body turnbuckle hook/eye

DIN 1478 closed body turnbuckle hook/hook

DIN 1478 closed body turnbuckle eye/eye

DIN 1478 closed body turnbuckle jaw/jaw

DIN 1480 turnbuckle body

Hook for DIN 1480 turnbuckle

Eye for DIN 1480 turnbuckle

Welding rod

Oval lifting eye nut

Eye/eye swivel

D-shackles, square-head

D-Shackle heavy-duty

Heavy-duty d-type shackle with nut and cotter pin

Trawling d-shackle square head

Trawling d-shackle socket head

Bow shackles

Bow shackle square head

Bow shackle heavy-duty

Heavy-duty bow shackle with nut and cotter pin

Snap hook DIN 5299

DIN 5299 snap hook with safety latch

Quick links

Part number	Wire Ø (mm)	Denomination	L	B	H	M	Box Quantity	Outer Box Quantity
B952445-9	3	Blister	40	14	6.7	M4	2 u. x Blister	5 x Box
B952446-7	4	Blister	43	17	7	M5	2 u. x Blister	5 x Box
B952447-5	5	Blister	52	21	8.5	M6	1 u. x Blister	5 x Box

Part number	Dimension Wire Ø	Denomination	L	B	H	h	M	Box Quantity	Outer Box Quantity
09520351	2	SPD302	30	12.6	13.6	5	M4	100	1800
09520360	3	SPD303	35	14	13.6	6.7	M4	100	1000
09520378	4	SPD304	40	17	17	7	M5	100	800
09520386	5	SPD305	50	21	23	8.5	M6	50	500
09520407	6	SPD306	60	25	23	10	M6	50	300
09520394	8	SPD308	75	31	25.5	14	M8	25	150
0952018-3	50	SCG107	M20	65	152	121	67	5	5

Part number	Wire Ø (mm)	Denomination	L	B	H	M	Box Quantity	Outer Box Quantity
09524459	3	SPDI 303	40	14	6.7	M4	30	240
09524467	4	SPDI 304	43	17	7	M5	30	240
09524475	5	SPDI 305	52	21	8.5	M6	20	160
09524483	6	SPDI 306	60	25	10	M6	10	160

Double wire rope clip

Steel

Technical info for combination: Steel

All References for combination: Steel
