Eye for DIN 1480 turnbuckle

Play 360

Suitable for assembly on a DIN 1480 or DIN 1478 turnbuckle body and recommended for applications where the end to be fixed is a hook.

TIPS: The quality of the steel of the ring guarantees performance and safety. The quality of the finish guarantees good corrosion resistance.

Product characteristics

Eye for DIN 1480 turnbuckle

Material:
Steel C15

Finish:
Zinc plated

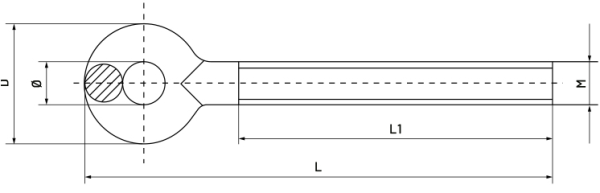

Part number Metric Thread (Métrica)Denomination L L1 Ø D Working Load S.W.L (kg)Box Quantity Outer Box Quantity
09522218 M5 ATS 105 57 35 8 16 60 100 2.000
09522226 M6 ATS 106 80 55 9 20 70 100 1.000
09522234 M8 ATS 108 85 57 10 22 140 100 600
09522242 M10 ATS 110 105 68 14 31 220 50 300
09522250 M11 ATS 111 108 68 15 33 260 50 200
09522269 M12 ATS 112 111 70 16 35 310 50 200
09522277 M14 ATS 114 124 75 18 40 450 25 100
09522285 M16 ATS 116 150 88 22 47 600 25 100
09522293 M20 ATS 120 168 105 24 52 910 10 60
09522306 M22 ATS 122 190 118 28 60 1.100 10 10
09522314 M24 ATS 124 212 135 28 65 1.300 10 10
09522322 M27 ATS 124 224 135 31 71 1.700 1 15
09522330 M30 ATS 130 224 135 31 71 2.100 1 10
09522349 M33 ATS 133 245 148 36 88 2.150 1 1
09522357 M36 ATS 136 277 158 38 94 2.300 1 5
