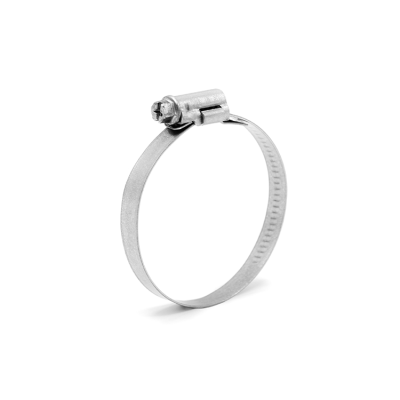

ASFA L (9 mm) Hose Clamp
W1 - Zinc-plated steel
The ASFA L Worm-Drive Hose Clamp (9mm) features a unique housing design and high strength screw, providing an excellent performance while being at the same time very compact.
*Manufactured to the highest quality and safety standards, conforming to both DIN 3017 and EU Directive 2002/95/EC.
Benefits:
- Protection and Safety: 9mm non-perforated band, with a completely smooth underside combined with the bevelled band edges, prevents any damage to the hose.
- Material Versatility: Available in a wide range of grades, from galvanised steel, which offers an economical option, to high quality stainless steel, ideal for applications in highly humid and corrosive environments.
W2 - Stainless steel
The ASFA L Worm-Drive Hose Clamp (9mm) features a unique housing design and high strength screw, providing an excellent performance while being at the same time very compact.
*Manufactured to the highest quality and safety standards, conforming to both DIN 3017 and EU Directive 2002/95/EC.
Benefits:
- Protection and Safety: 9mm non-perforated band, with a completely smooth underside combined with the bevelled band edges, prevents any damage to the hose.
- Material Versatility: Available in a wide range of grades, from galvanised steel, which offers an economical option, to high quality stainless steel, ideal for applications in highly humid and corrosive environments.
W3 - Stainless steel AISI 430
The ASFA L Worm-Drive Hose Clamp (9mm) features a unique housing design and high strength screw, providing an excellent performance while being at the same time very compact.
*Manufactured to the highest quality and safety standards, conforming to both DIN 3017 and EU Directive 2002/95/EC.
Benefits:
- Protection and Safety: 9mm non-perforated band, with a completely smooth underside combined with the bevelled band edges, prevents any damage to the hose.
- Material Versatility: Available in a wide range of grades, from galvanised steel, which offers an economical option, to high quality stainless steel, ideal for applications in highly humid and corrosive environments.
W4 - Stainless steel AISI 304
The ASFA L Worm-Drive Hose Clamp (9mm) features a unique housing design and high strength screw, providing an excellent performance while being at the same time very compact.
*Manufactured to the highest quality and safety standards, conforming to both DIN 3017 and EU Directive 2002/95/EC.
Benefits:
- Protection and Safety: 9mm non-perforated band, with a completely smooth underside combined with the bevelled band edges, prevents any damage to the hose.
- Material Versatility: Available in a wide range of grades, from galvanised steel, which offers an economical option, to high quality stainless steel, ideal for applications in highly humid and corrosive environments.
W5 - Stainless steel AISI 316
The ASFA L Worm-Drive Hose Clamp (9mm) features a unique housing design and high strength screw, providing an excellent performance while being at the same time very compact.
*Manufactured to the highest quality and safety standards, conforming to both DIN 3017 and EU Directive 2002/95/EC.
Benefits:
- Protection and Safety: 9mm non-perforated band, with a completely smooth underside combined with the bevelled band edges, prevents any damage to the hose.
- Material Versatility: Available in a wide range of grades, from galvanised steel, which offers an economical option, to high quality stainless steel, ideal for applications in highly humid and corrosive environments.
Technical info for combination: W1 - Zinc-plated steel
Material:
Steel band and housing W1 (DIN 1.0935)
Steel screw Qst 36-3 (DIN 1.0214) Zinc plated Cr3
Finish:
Galvanized
Corrosion resistance:
144 hours salt spray (ASTM B-117)
Max. Tightening speed (RPM):
540 ± 5
(*) ASFA-L 7 mm hose clamp
Technical info for combination: W2 - Stainless steel
Material:
Stainless steel band and housing W2 AISI 430 X6Cr17 (DIN 1.4016)
Steel screw Qst 36-3 (DIN 1.0214) Zinc plated Cr3
Corrosion resistance:
72 hours salt spray (ASTM B-117)
Max. Tightening speed (RPM):
540 ± 5
(*) ASFA-L 7 mm hose clamp
Technical info for combination: W3 - Stainless steel AISI 430
Material:
Stainless steel band and housing W3 AISI 430 X6Cr17 (DIN 1.4016)
Stainless steel screw W4 AISI 304 Cu
Corrosion resistance:
200 hours salt spray (ASTM B-117)
Max. Tightening speed (RPM):
540 ± 5
(*) ASFA-L 7 mm hose clamp
Technical info for combination: W4 - Stainless steel AISI 304
Material:
Stainless steel band and housing W4 AISI 304 X5Cr Ni 18/10 (DIN 1.4301)
Stainless steel screw W4 AISI 304
Corrosion resistance:
400 hours salt spray (ASTM B-117)
Max. Tightening speed (RPM):
540 ± 5
(*) ASFA-L 7 mm hose clamp
Technical info for combination: W5 - Stainless steel AISI 316
Material:
Stainless steel band and housing W5 AISI 316 X5Cr Ni Mo (DIN 1.4401)
Stainless steel screw W5 AISI 316 Cu
Corrosion resistance:
1.000 hours salt spray (ASTM B-117)
Max. Tightening speed (RPM):
540 ± 5
(*) ASFA-L 7 mm hose clamp
All References for combination: W1 - Zinc-plated steel
| Part number | Ø D Application mm | A +0.3 -0.2 | L +1 -0.5 | S ±0.1 | H Max. | B Max. | Max. Pressure Bar | Max. Torque Nm | Box Quantity | Outer Box Quantity |
|---|---|---|---|---|---|---|---|---|---|---|
| 03008745 | 8-12(*) | 7 | 18,5 | 0,65 | 9,2 | 11,5 | 15 | 1,5 | 200 | 1.600 |
| 03008753 | 8-16 | 9 | 22,1 | 0,65 | 10,5 | 14,0 | 45 | 3,0 | 200 | 800 |
| 03008761 | 12-22 | 9 | 22,1 | 0,65 | 10,5 | 14,0 | 45 | 3,0 | 200 | 800 |
| 03008770 | 16-27 | 9 | 23,6 | 0,75 | 10,5 | 14,0 | 42 | 3,5 | 200 | 800 |
| 03008788 | 20-32 | 9 | 23,6 | 0,75 | 10,5 | 14,0 | 36 | 3,5 | 200 | 800 |
| 03008796 | 25-40 | 9 | 25,6 | 0,75 | 10,5 | 14,0 | 32 | 4,0 | 100 | 400 |
| 03008809 | 30-45 | 9 | 25,6 | 0,75 | 10,5 | 14,0 | 28 | 4,0 | 100 | 800 |
| 03008817 | 32-50 | 9 | 25,6 | 0,75 | 10,5 | 14,0 | 24 | 4,0 | 100 | 800 |
| 03008825 | 40-60 | 9 | 25,6 | 0,75 | 10,5 | 14,0 | 19 | 4,0 | 100 | 400 |
| 03008833 | 50-70 | 9 | 29,6 | 0,75 | 10,5 | 14,0 | 17 | 4,0 | 100 | 100 |
| 03008841 | 60-80 | 9 | 29,6 | 0,75 | 10,5 | 14,0 | 15 | 4,0 | 100 | 100 |
| 03008850 | 70-90 | 9 | 29,6 | 0,75 | 10,5 | 14,0 | 13 | 4,0 | 50 | 50 |
| 03008868 | 80-100 | 9 | 29,6 | 0,75 | 10,5 | 14,0 | 11 | 4,0 | 50 | 50 |
| 03008876 | 90-110 | 9 | 29,6 | 0,75 | 10,5 | 14,0 | 10 | 4,0 | 25 | 200 |
| 03008884 | 100-120 | 9 | 29,6 | 0,75 | 10,5 | 14,0 | 9 | 4,0 | 25 | 200 |
| 03008892 | 110-130 | 9 | 29,6 | 0,75 | 10,5 | 14,0 | 8 | 4,0 | 25 | 25 |
| 03008905 | 120-140 | 9 | 29,6 | 0,75 | 10,5 | 14,0 | 7 | 4,0 | 25 | 25 |
| 03008913 | 130-150 | 9 | 29,6 | 0,75 | 10,5 | 14,0 | 6 | 4,0 | 25 | 25 |
| 03008921 | 140-160 | 9 | 29,6 | 0,75 | 10,5 | 14,0 | 5 | 4,0 | 25 | 25 |
All References for combination: W2 - Stainless steel
| Part number | Ø D Application mm | A +0.3 -0.2 | L +1 -0.5 | S ±0.1 | H Max. | B Max. | Max. Pressure Bar | Max. Torque Nm | Box Quantity | Outer Box Quantity |
|---|---|---|---|---|---|---|---|---|---|---|
| 03016508 | 8-12 (*) | 7 | 18,5 | 0,4 | 9,2 | 11,5 | 15 | 1,5 | 200 | 1.600 |
| 03016516 | 8-16 | 9 | 22,1 | 0,6 | 10,5 | 14,0 | 45 | 3,0 | 200 | 800 |
| 03016524 | 12-22 | 9 | 22,1 | 0,6 | 10,5 | 14,0 | 45 | 3,0 | 200 | 800 |
| 03016532 | 16-27 | 9 | 23,6 | 0,7 | 10,5 | 14,0 | 42 | 3,5 | 200 | 800 |
| 03016540 | 20-32 | 9 | 23,6 | 0,7 | 10,5 | 14,0 | 36 | 3,5 | 200 | 800 |
| 03016559 | 25-40 | 9 | 25,6 | 0,7 | 10,5 | 14,0 | 32 | 4,0 | 100 | 400 |
| 03016567 | 30-45 | 9 | 25,6 | 0,7 | 10,5 | 14,0 | 28 | 4,0 | 100 | 800 |
| 03016575 | 32-50 | 9 | 25,6 | 0,7 | 10,5 | 14,0 | 24 | 4,0 | 100 | 800 |
| 03016583 | 40-60 | 9 | 25,6 | 0,7 | 10,5 | 14,0 | 19 | 4,0 | 100 | 400 |
| 03016591 | 50-70 | 9 | 29,6 | 0,7 | 10,5 | 14,0 | 17 | 4,0 | 100 | 100 |
| 03016604 | 60-80 | 9 | 29,6 | 0,7 | 10,5 | 14,0 | 15 | 4,0 | 100 | 100 |
| 03016612 | 70-90 | 9 | 29,6 | 0,7 | 10,5 | 14,0 | 13 | 4,0 | 50 | 50 |
| 03016620 | 80-100 | 9 | 29,6 | 0,7 | 10,5 | 14,0 | 11 | 4,0 | 50 | 50 |
| 03016639 | 90-110 | 9 | 29,6 | 0,7 | 10,5 | 14,0 | 10 | 4,0 | 25 | 200 |
| 03016647 | 100-120 | 9 | 29,6 | 0,7 | 10,5 | 14,0 | 9 | 4,0 | 25 | 200 |
| 03016655 | 110-130 | 9 | 29,6 | 0,7 | 10,5 | 14,0 | 8 | 4,0 | 25 | 25 |
| 03016663 | 120-140 | 9 | 29,6 | 0,7 | 10,5 | 14,0 | 7 | 4,0 | 25 | 25 |
| 03016671 | 130-150 | 9 | 29,6 | 0,7 | 10,5 | 14,0 | 6 | 4,0 | 25 | 25 |
| 03016680 | 140-160 | 9 | 29,6 | 0,7 | 10,5 | 14,0 | 5 | 4,0 | 25 | 25 |
All References for combination: W3 - Stainless steel AISI 430
| Part number | Ø D Application mm | A +0.3 -0.2 | L +1 -0.5 | S ±0.1 | H Max. | B Max. | Max. Pressure Bar | Max. Torque Nm | Box Quantity | Outer Box Quantity |
|---|---|---|---|---|---|---|---|---|---|---|
| 03016001 | 8-12 (*) | 7 | 18,5 | 0,40 | 9,2 | 11,5 | 15 | 1,5 | 200 | 1.600 |
| 03016014 | 8-16 | 9 | 22,1 | 0,65 | 10,5 | 14,0 | 45 | 3,0 | 200 | 800 |
| 03016022 | 12-22 | 9 | 22,1 | 0,65 | 10,5 | 14,0 | 45 | 3,0 | 200 | 800 |
| 03016030 | 16-27 | 9 | 23,6 | 0,75 | 10,5 | 14,0 | 42 | 3,5 | 200 | 800 |
| 03016049 | 20-32 | 9 | 23,6 | 0,75 | 10,5 | 14,0 | 36 | 3,5 | 200 | 800 |
| 03016065 | 25-40 | 9 | 25,6 | 0,75 | 10,5 | 14,0 | 32 | 4,0 | 100 | 400 |
| 03016073 | 30-45 | 9 | 25,6 | 0,75 | 10,5 | 14,0 | 28 | 4,0 | 100 | 800 |
| 03016081 | 32-50 | 9 | 25,6 | 0,75 | 10,5 | 14,0 | 24 | 4,0 | 100 | 800 |
| 03016090 | 40-60 | 9 | 25,6 | 0,75 | 10,5 | 14,0 | 19 | 4,0 | 100 | 400 |
| 03016102 | 50-70 | 9 | 29,6 | 0,75 | 10,5 | 14,0 | 17 | 4,0 | 100 | 100 |
| 03016110 | 60-80 | 9 | 29,6 | 0,75 | 10,5 | 14,0 | 15 | 4,0 | 100 | 100 |
| 03016129 | 70-90 | 9 | 29,6 | 0,75 | 10,5 | 14,0 | 13 | 4,0 | 50 | 50 |
| 03016137 | 80-100 | 9 | 29,6 | 0,75 | 10,5 | 14,0 | 11 | 4,0 | 50 | 50 |
| 03016145 | 90-110 | 9 | 29,6 | 0,75 | 10,5 | 14,0 | 10 | 4,0 | 25 | 200 |
| 03016153 | 100-120 | 9 | 29,6 | 0,75 | 10,5 | 14,0 | 9 | 4,0 | 25 | 200 |
| 03016161 | 110-130 | 9 | 29,6 | 0,75 | 10,5 | 14,0 | 8 | 4,0 | 25 | 25 |
| 03016170 | 120-140 | 9 | 29,6 | 0,75 | 10,5 | 14,0 | 7 | 4,0 | 25 | 200 |
| 03016188 | 130-150 | 9 | 29,6 | 0,75 | 10,5 | 14,0 | 6 | 4,0 | 25 | 25 |
| 03016196 | 140-160 | 9 | 29,6 | 0,75 | 10,5 | 14,0 | 5 | 4,0 | 25 | 25 |
All References for combination: W4 - Stainless steel AISI 304
| Part number | Ø D Application mm | A +0.3 -0.2 | L +1 -0.5 | S ±0.1 | H Max. | B Max. | Max. Pressure Bar | Max. Torque Nm | Box Quantity | Outer Box Quantity |
|---|---|---|---|---|---|---|---|---|---|---|
| 03014000 | 8-12 (*) | 7 | 18,5 | 0,40 | 9,2 | 11,5 | 15 | 1,5 | 200 | 1.600 |
| 03014019 | 8-16 | 9 | 22,1 | 0,65 | 10,5 | 14,0 | 45 | 3,0 | 200 | 800 |
| 03014027 | 12-22 | 9 | 22,1 | 0,65 | 10,5 | 14,0 | 45 | 3,0 | 200 | 800 |
| 03014035 | 16-27 | 9 | 23,6 | 0,75 | 10,5 | 14,0 | 42 | 3,5 | 200 | 800 |
| 03014043 | 20-32 | 9 | 23,6 | 0,75 | 10,5 | 14,0 | 36 | 3,5 | 200 | 800 |
| 03014051 | 25-40 | 9 | 25,6 | 0,75 | 10,5 | 14,0 | 32 | 4,0 | 100 | 400 |
| 03014060 | 30-45 | 9 | 25,6 | 0,75 | 10,5 | 14,0 | 28 | 4,0 | 100 | 800 |
| 03014078 | 32-50 | 9 | 25,6 | 0,75 | 10,5 | 14,0 | 24 | 4,0 | 100 | 800 |
| 03014086 | 40-60 | 9 | 25,6 | 0,75 | 10,5 | 14,0 | 19 | 4,0 | 100 | 400 |
| 03014094 | 50-70 | 9 | 29,6 | 0,75 | 10,5 | 14,0 | 17 | 4,0 | 100 | 100 |
| 03014107 | 60-80 | 9 | 29,6 | 0,75 | 10,5 | 14,0 | 15 | 4,0 | 100 | 100 |
| 03014115 | 70-90 | 9 | 29,6 | 0,75 | 10,5 | 14,0 | 13 | 4,0 | 50 | 50 |
| 03014123 | 80-100 | 9 | 29,6 | 0,75 | 10,5 | 14,0 | 11 | 4,0 | 50 | 50 |
| 03014140 | 90-110 | 9 | 29,6 | 0,75 | 10,5 | 14,0 | 10 | 4,0 | 25 | 200 |
| 03014158 | 100-120 | 9 | 29,6 | 0,75 | 10,5 | 14,0 | 9 | 4,0 | 25 | 200 |
| 03014166 | 110-130 | 9 | 29,6 | 0,75 | 10,5 | 14,0 | 8 | 4,0 | 25 | 25 |
| 03014174 | 120-140 | 9 | 29,6 | 0,75 | 10,5 | 14,0 | 7 | 4,0 | 25 | 200 |
| 03014182 | 130-150 | 9 | 29,6 | 0,75 | 10,5 | 14,0 | 6 | 4,0 | 25 | 25 |
| 03014190 | 140-160 | 9 | 29,6 | 0,75 | 10,5 | 14,0 | 5 | 4,0 | 25 | 25 |
All References for combination: W5 - Stainless steel AISI 316
| Part number | Ø D Application mm | A +0.3 -0.2 | L +1 -0.5 | S ±0.1 | H Max. | B Max. | Max. Pressure Bar | Max. Torque Nm | Box Quantity | Outer Box Quantity |
|---|---|---|---|---|---|---|---|---|---|---|
| 03015748 | 8-12 (*) | 7 | 18,5 | 0,40 | 9,2 | 11,5 | 15 | 1,5 | 200 | 1.600 |
| 03015759 | 8-16 | 9 | 22,1 | 0,65 | 10,5 | 14,0 | 45 | 3,0 | 200 | 800 |
| 03015767 | 12-22 | 9 | 22,1 | 0,65 | 10,5 | 14,0 | 45 | 3,0 | 200 | 800 |
| 03015775 | 16-27 | 9 | 23,6 | 0,75 | 10,5 | 14,0 | 42 | 3,5 | 200 | 800 |
| 03015783 | 20-32 | 9 | 23,6 | 0,75 | 10,5 | 14,0 | 36 | 3,5 | 200 | 800 |
| 03015804 | 25-40 | 9 | 25,6 | 0,75 | 10,5 | 14,0 | 32 | 4,0 | 100 | 800 |
| 03015812 | 30-45 | 9 | 25,6 | 0,75 | 10,5 | 14,0 | 28 | 4,0 | 100 | 800 |
| 03015820 | 32-50 | 9 | 25,6 | 0,75 | 10,5 | 14,0 | 24 | 4,0 | 100 | 800 |
| 03015839 | 40-60 | 9 | 25,6 | 0,75 | 10,5 | 14,0 | 19 | 4,0 | 100 | 400 |
| 03015847 | 50-70 | 9 | 29,6 | 0,75 | 10,5 | 14,0 | 17 | 4,0 | 100 | 100 |
| 03015855 | 60-80 | 9 | 29,6 | 0,75 | 10,5 | 14,0 | 15 | 4,0 | 100 | 100 |
| 03015863 | 70-90 | 9 | 29,6 | 0,75 | 10,5 | 14,0 | 13 | 4,0 | 50 | 50 |
| 03015871 | 80-100 | 9 | 29,6 | 0,75 | 10,5 | 14,0 | 11 | 4,0 | 50 | 50 |
| 03015880 | 90-110 | 9 | 29,6 | 0,75 | 10,5 | 14,0 | 10 | 4,0 | 25 | 200 |
| 03015898 | 100-120 | 9 | 29,6 | 0,75 | 10,5 | 14,0 | 9 | 4,0 | 25 | 200 |
| 03015900 | 110-130 | 9 | 29,6 | 0,75 | 10,5 | 14,0 | 8 | 4,0 | 25 | 25 |
| 03015919 | 120-140 | 9 | 29,6 | 0,75 | 10,5 | 14,0 | 7 | 4,0 | 25 | 25 |
| 03015927 | 130-150 | 9 | 29,6 | 0,75 | 10,5 | 14,0 | 6 | 4,0 | 25 | 25 |
| 03015935 | 140-160 | 9 | 29,6 | 0,75 | 10,5 | 14 | 5 | 4,0 | 25 | 25 |
