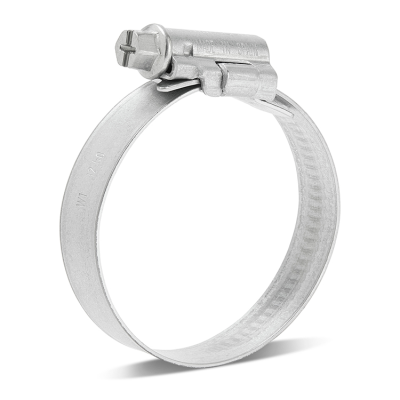

ASFA S (12 mm) Hose Clamp

This clamp represents the latest stage in the evolution of the ASFA 12 mm range. One of the main developments in this version is the lateral displacement of the band thread, which reduces the tendency of the band end to exit the housing off-centre when tightened.

Thanks to the combination of the housing, the locking system and the location of the screw within the housing, this clamp offers superior performance at the same torque ratings.

Specially recommended for industrial applications.

DIN 3017. The ASFA S hose clip complies fully with the DIN 3017 norm and also with the directive EU 2002/95/EC.

* The maximum application pressure can vary depending on the type of hose used and the geometry of the coupling.

What quality do you need?

mikalor_asfa_s_hose_clamp_w1_2d
Brochure_ASW1.pdf
Download |

Material:
Band and support: W1 Galvanized steel DIN 1.0935
Bolt: Steel Qst 36-3 DIN 1.0214

Finish:
Bolt: Zinc plated Cr3

Corrosion resistance:
144 hours salt spray (ASTM B-117)

Maximum tightening speed (RPM):
540 ±5
