ASFA High Torque (16 mm) Hose Clamp

Mikalor High-Torque Clamps were designed to guarantee maximum performance in the most demanding applications. Thanks to the use of an M8 screw and the choice of 16mm bandwidth, torque values can be applied which are far higher than those used with the standard ASFA range, thereby ensuring perfect performance in high-pressure applications.

The High-Torque clamp is particularly popular in industrial and automotive applications due to its outstanding performance. The perfectly rounded bevelled band edges avoid the clamp cutting into or damaging the hose.

What quality do you need?

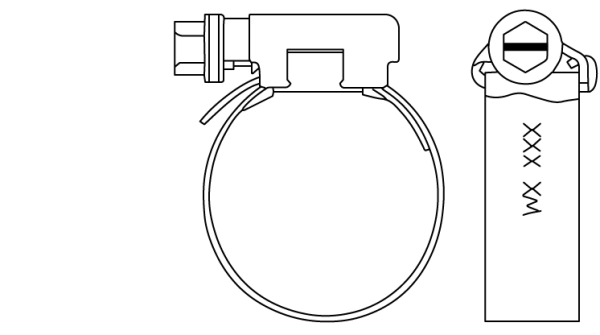

mikalor_asfa_high_torque_hose_clamp_w3_2d
Brochure-AHTW3
Download |

Material:
W3 Stainless steel X6Cr 17 DIN 1.4016 AISI 430
Bolt: Stainless steel AISI 304 Cu

Corrosion resistance:
200 hours salt spray (ASTM B-117)

Maximum tightening speed (RPM):
540 ±5
