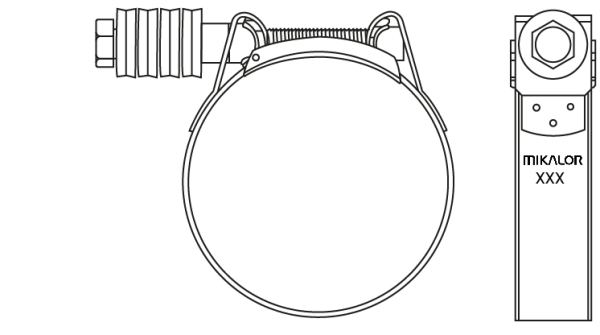

Supra Constant Tension Heavy-Duty Clamp

W2 - Stainless steel

The Supra Constant Tension Hose Clamp has been design to maintain a constant performance, pressure and torque, even when it is subjected to changes in temperature or vibration.

*Fully compliant with EU Directive 2002/95/EC.

Benefits:

Innovative Clamping System: Incorporates a bespoke bolt and a series of conical washers to ensure stable performance and torque under all conditions.
Heavy-duty Applications: Ideal for combustion engines, tractors, trucks and heavy equipment where reliability and strength are critical.
Protection and Durability: The bevelled edges of the band prevent damage to hoses and provide a firm, durable hold.

W4 - Stainless steel AISI 304

The Supra Constant Tension Hose Clamp has been design to maintain a constant performance, pressure and torque, even when it is subjected to changes in temperature or vibration.

*Fully compliant with EU Directive 2002/95/EC.

Benefits:

Innovative Clamping System: Incorporates a bespoke bolt and a series of conical washers to ensure stable performance and torque under all conditions.
Heavy-duty Applications: Ideal for combustion engines, tractors, trucks and heavy equipment where reliability and strength are critical.
Protection and Durability: The bevelled edges of the band prevent damage to hoses and provide a firm, durable hold.

W5 - Stainless steel AISI 316

The Supra Constant Tension Hose Clamp has been design to maintain a constant performance, pressure and torque, even when it is subjected to changes in temperature or vibration.

*Fully compliant with EU Directive 2002/95/EC.

Benefits:

Innovative Clamping System: Incorporates a bespoke bolt and a series of conical washers to ensure stable performance and torque under all conditions.
Heavy-duty Applications: Ideal for combustion engines, tractors, trucks and heavy equipment where reliability and strength are critical.
Protection and Durability: The bevelled edges of the band prevent damage to hoses and provide a firm, durable hold.

What quality do you need?

Brochure-SUPRACTW2.pdf

Download |

Material:
Stainless steel W2 AISI 430 X6Cr17 (DIN 1.4016)
Alloy steel screw
Stainless steel washers W4 AISI 304
Stainless steel sleeve AISI 303
St 3K32 (DIN 1624) nut

Corrosion resistance:
72 hours salt spray (ASTM B-117)

Max. Tightening speed (RPM):
540 ± 5

All references

Part number	Ø D Application mm	A	S ±0.03	R	L ±2.0	B ±0.5	E ±0.2	Max. Pressure Bar	Max. Torque Nm	Box Quantity	Outer Box Quantity
03020108	17-18	18 +0,2 -0	0,6	M6	50	19,8	10	50	10	50	50
03020112	18-19	18 +0,2 -0	0,6	M6	50	19,8	10	50	10	50	50
03020118	19-21	18 +0,2 -0	0,6	M6	50	19,8	10	50	10	50	50
03020126	21-23	18 +0,2 -0	0,6	M6	50	19,8	10	48	10	50	50
03020134	23-25	18 +0,2 -0	0,6	M6	50	19,8	10	48	10	50	50
03020142	25-27	18 +0,2 -0	0,6	M6	50	19,8	10	45	10	50	50
03020150	27-29	18 +0,2 -0	0,6	M6	50	19,8	10	45	10	50	50
03020169	29-31	20 +0,3 -0	0,8	M7	70	22,0	11	42	13	50	50
03020177	31-34	20 +0,3 -0	0,8	M7	70	22,0	11	42	13	50	50
03020185	34-37	20 +0,3 -0	0,8	M7	70	22,0	11	40	13	50	50
03020193	37-40	20 +0,3 -0	0,8	M7	70	22,0	11	40	13	50	50
03020206	40-43	20 +0,3 -0	0,8	M7	80	22,0	11	38	13	50	50
03020214	43-47	20 +0,3 -0	0,9	M7	80	22,0	11	38	16	50	50
03020222	47-51	20 +0,3 -0	0,9	M7	80	22,0	11	36	16	50	50
03020230	51-55	20 +0,3 -0	0,9	M7	80	22,0	11	36	16	25	25
03020249	55-59	20 +0,3 -0	0,9	M7	80	22,0	11	34	16	25	25
03020257	59-63	20 +0,3 -0	0,9	M7	80	22,0	11	34	16	25	25
03020265	63-68	20 +0,3 -0	0,9	M7	80	22,0	11	34	16	25	25
03020273	68-73	25 +0,4 -0	1,0	M8	110	27,5	13	28	30	25	25
03020281	73-79	25 +0,4 -0	1,0	M8	110	27,5	13	28	30	25	25
03020290	79-85	25 +0,4 -0	1,0	M8	110	27,5	13	28	30	25	25
03020302	85-91	25 +0,4 -0	1,0	M8	110	27,5	13	20	30	25	25
03020310	91-97	25 +0,4 -0	1,0	M8	110	27,5	13	20	30	25	25
03020329	97-104	25 +0,4 -0	1,0	M8	130	27,5	13	20	30	25	25
03020337	104-112	25 +0,4 -0	1,0	M8	130	27,5	13	12	30	25	25
03020345	112-121	25 +0,4 -0	1,0	M8	130	27,5	13	12	30	25	25
03020353	121-130	25 +0,4 -0	1,0	M8	130	27,5	13	12	30	25	25
03020361	130-140	28 +0,4 -0	1,2	M10	175	31,0	17	9	45	10	10
03020370	140-150	28 +0,4 -0	1,2	M10	175	31,0	17	9	45	10	10
03020388	162-174	28 +0,4 -0	1,2	M10	175	31,0	17	9	45	10	10
03020396	174-187	28 +0,4 -0	1,2	M10	175	31,0	17	6	45	10	10
03020409	187-200	28 +0,4 -0	1,2	M10	175	31,0	17	6	45	10	10
03020417	200-213	28 +0,4 -0	1,2	M10	175	31,0	17	3	45	10	10
03020425	213-226	28 +0,4 -0	1,2	M10	175	31,0	17	3	45	10	10
03020433	226-239	28 +0,4 -0	1,2	M10	175	31,0	17	3	45	10	10
03020441	239-252	28 +0,4 -0	1,2	M10	175	31,0	17	3	45	10	10

All references

Part number	Ø D Application mm	A	S ±0.03	R	L ±2.0	B ±0.5	E ±0.2	Max. Pressure Bar	Max. Torque Nm	Box Quantity	Outer Box Quantity
43013059	25-27	18 +0,2 -0	0,6	M6	50	19,8	10	45	10	50	50
43013067	27-29	18 +0,2 -0	0,6	M6	55	19,8	10	45	10	50	50
43013075	29-31	20 +0,3 -0	0,8	M7	70	22,0	11	42	13	50	50
43013083	31-34	20 +0,3 -0	0,8	M7	70	22,0	11	42	13	50	50
43013091	34-37	20 +0,3 -0	0,8	M7	70	22,0	11	40	13	50	50
43013104	37-40	20 +0,3 -0	0,8	M7	70	22,0	11	40	13	50	50
43013112	40-43	20 +0,3 -0	0,8	M7	80	22,0	11	38	13	50	50
43013120	43-47	20 +0,3 -0	0,9	M7	80	22,0	11	38	16	50	50
43013139	47-51	20 +0,3 -0	0,9	M7	80	22,0	11	36	16	50	50
43013147	51-55	20 +0,3 -0	0,9	M7	80	22,0	11	36	16	25	25
43013155	55-59	20 +0,3 -0	0,9	M7	80	22,0	11	34	16	25	25
43013163	59-63	20 +0,3 -0	0,9	M7	80	22,0	11	34	16	25	25
43013171	63-68	20 +0,3 -0	0,9	M8	80	22,0	11	34	16	25	25
43013180	68-73	25 +0,4 -0	1,0	M8	110	27,5	13	28	30	25	25
43013198	73-79	25 +0,4 -0	1,0	M8	110	27,5	13	28	30	25	25
43013200	79-85	25 +0,4 -0	1,0	M8	110	27,5	13	28	30	25	25
43013219	85-91	25 +0,4 -0	1,0	M8	110	27,5	13	20	30	25	25
43013227	91-97	25 +0,4 -0	1,0	M8	110	27,5	13	20	30	25	25
43013235	97-104	25 +0,4 -0	1,0	M8	130	27,5	13	20	30	25	25
43013243	104-112	25 +0,4 -0	1,0	M8	130	27,5	13	12	30	25	25
43013251	112-121	25 +0,4 -0	1,0	M8	130	27,5	13	12	30	25	25
43013260	121-130	25 +0,4 -0	1,0	M10	130	27,5	13	12	30	25	25
43013278	130-140	28 +0,4 -0	1,2	M10	175	31,0	17	9	45	10	10
43013286	140-150	28 +0,4 -0	1,2	M10	175	31,0	17	9	45	10	10
43013294	150-162	28 +0,4 -0	1,2	M10	175	31,0	17	9	45	10	10
43013307	162-174	28 +0,4 -0	1,2	M10	175	31,0	17	6	45	10	10
43013315	174-187	28 +0,4 -0	1,2	M10	175	31,0	17	6	45	10	10
43013323	187-200	28 +0,4 -0	1,2	M10	175	31,0	17	6	45	10	10
43013331	200-213	28 +0,4 -0	1,2	M10	175	31,0	17	3	45	10	10
43013340	213-226	28 +0,4 -0	1,2	M10	175	31,0	17	3	45	10	10
43013358	226-239	28 +0,4 -0	1,2	M10	175	31,0	17	3	45	10	10
43013366	239-252	28 +0,4 -0	1,2	M10	175	31,0	17	3	45	10	10

All references

Part number	Ø D Application mm	A	S ±0.03	R	L ±2.0	B ±0.5	E ±0.2	Max. Pressure Bar	Max. Torque Nm	Box Quantity	Outer Box Quantity
53013657	25-27	18 +0,2 -0	0,6	M6	50	19,8	10	45	10	50	50
53013665	27-29	18 +0,2 -0	0,6	M6	55	19,8	10	45	10	50	50
53013673	29-31	20 +0,3 -0	0,8	M7	70	22,0	11	42	13	50	50
53013681	31-34	20 +0,3 -0	0,8	M7	70	22,0	11	42	13	50	50
53013690	34-37	20 +0,3 -0	0,8	M7	70	22,0	11	40	13	50	50
53013702	37-40	20 +0,3 -0	0,8	M7	70	22,0	11	40	13	50	50
53013710	40-43	20 +0,3 -0	0,8	M7	80	22,0	11	38	13	50	50
53013729	43-47	20 +0,3 -0	0,9	M7	80	22,0	11	38	16	50	50
53013737	47-51	20 +0,3 -0	0,9	M7	80	22,0	11	36	16	50	50
53013745	51-55	20 +0,3 -0	0,9	M7	80	22,0	11	36	16	25	25
53013753	55-59	20 +0,3 -0	0,9	M7	80	22,0	11	34	16	25	25
53013761	59-63	20 +0,3 -0	0,9	M7	80	22,0	11	34	16	25	25
53013770	63-68	20 +0,3 -0	0,9	M7	80	22,0	11	34	16	25	25
53013788	68-73	25 +0,4 -0	1,0	M8	110	27,5	13	28	30	25	25
53013796	73-79	25 +0,4 -0	1,0	M8	110	27,5	13	28	30	25	25
53013809	79-85	25 +0,4 -0	1,0	M8	110	27,5	13	28	30	25	25
53013817	85-91	25 +0,4 -0	1,0	M8	110	27,5	13	20	30	25	25
53013825	91-97	25 +0,4 -0	1,0	M8	110	27,5	13	20	30	25	25
53013833	97-104	25 +0,4 -0	1,0	M8	130	27,5	13	20	30	25	25
53013841	104-112	25 +0,4 -0	1,0	M8	130	27,5	13	12	30	25	25
53013850	112-121	25 +0,4 -0	1,0	M8	130	27,5	13	12	30	25	25
53013868	121-130	25 +0,4 -0	1,0	M10	130	27,5	13	12	30	25	25
53013876	130-140	28 +0,4 -0	1,2	M10	175	31,0	17	9	45	10	10
53013884	140-150	28 +0,4 -0	1,2	M10	175	31,0	17	9	45	10	10
53013892	150-162	28 +0,4 -0	1,2	M10	175	31,0	17	9	45	10	10
53013905	162-174	28 +0,4 -0	1,2	M10	175	31,0	17	6	45	10	10
53013913	174-187	28 +0,4 -0	1,2	M10	175	31,0	17	6	45	10	10
53013921	187-200	28 +0,4 -0	1,2	M10	175	31,0	17	6	45	10	10
53013930	200-213	28 +0,4 -0	1,2	M10	175	31,0	17	3	45	10	10
53013948	213-226	28 +0,4 -0	1,2	M10	175	31,0	17	3	45	10	10
53013956	226-239	28 +0,4 -0	1,2	M10	175	31,0	17	3	45	10	10
53013964	239-252	28 +0,4 -0	1,2	M10	175	31,0	17	3	45	10	10
